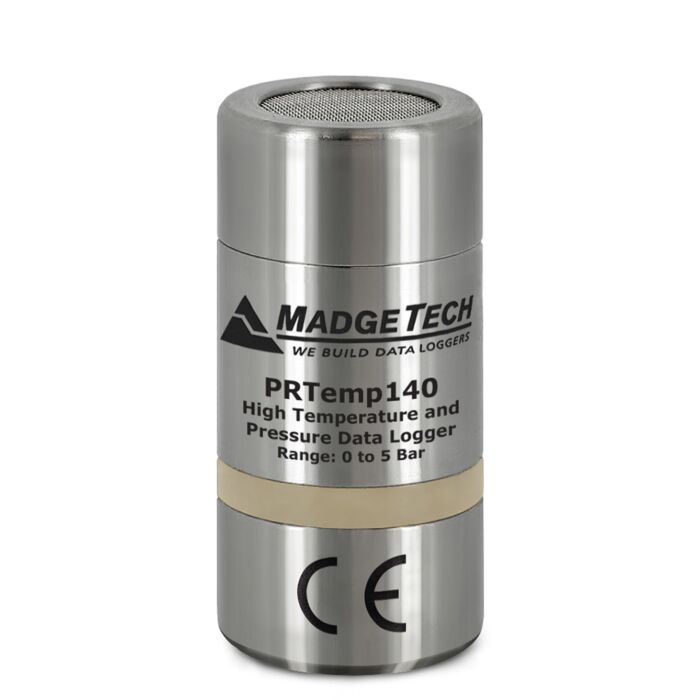

MadgeTech PRTEMP140-LVL for Rent, High Temperature & Pressure Data Logger with Flush Top
Order #: PRTEMP140-LVL-RENT1
Mfg #: PRTEMP140-LVL
Product Highlights
High Temperature & Pressure Data Logger with Flush Top
The PRTemp140 is a submersible, pressure and high temperature data logger. Includes ISO17025 accredited calibration certificate.
- Submersible
- 2.5 Inches Tall
- Available in Flush or NPT Pressure Port Top
The PRTemp140 is a submersible, pressure and high temperature data logger. Available in a flush top or ? in. NPT top model, this device stands less than 2.5 in. high, allowing it to fit discretely inside small spaces.
This data logger is able to measure and record temperatures from -20 °C to 140 °C (-4 °F to +284 °F) and absolute pressure from 0 bar to 5 bar, accommodating a wide range of applications even in the harshest conditions. The PRTemp140 can store a maximum of 32,767 time and date stamped readings and can even be programmed to start up to 18 months in advance.
The PRTemp140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 32,767 readings (all channels enabled) |
| Reading Rate | 1 second to once every 24 hours, selectable in software |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate) |
| Material | 316 Stainless Steel |
| Dimensions | Flush Top: 1.98 in x 0.97 in x 0.97 in (50.2 mm x 24.6 mm x 24.6 mm) |
| NPT Top: 2.30 in x 0.97 in x 0.97 in (58.2 mm x 24.6 mm x 24.6 mm) | |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -20
