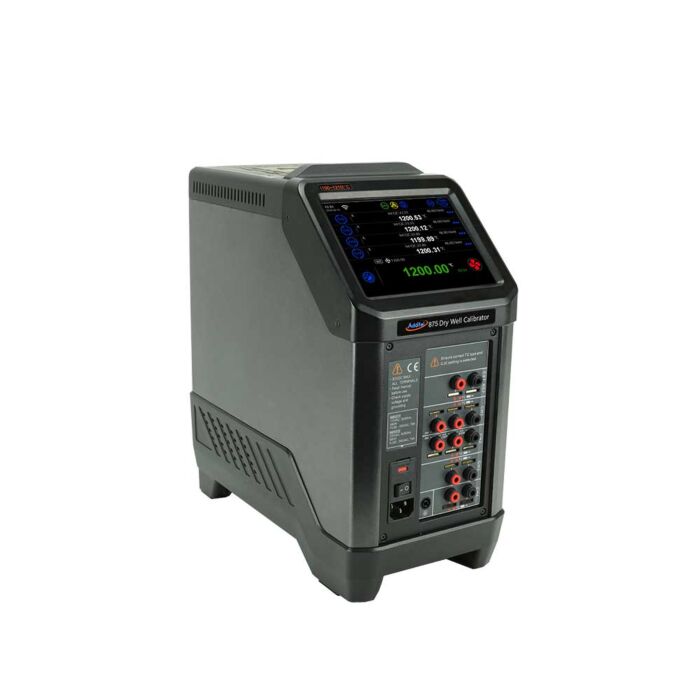

Additel ADT875PC-1210-BS-220V Thermocouple Calibration Furnace, 100C to 1210C, Insert BS, with Process Calibrator
Thermocouple Calibr. Furnace 100C-1210C,Ins BS,w/Process Cal

Order #: ADT875PC-1210-BS-220V

Mfg #: ADT875PC-1210-BS-220V

Questions about availability or need help? Contact Us:

(800) 633-0561
$15,590.00

Additel ADT875PC-1210-BS-220V Thermocouple Calibration Furnace, 100C to 1210C, Insert BS, with Process Calibrator

Thermocouple Calibr. Furnace 100C-1210C,Ins BS,w/Process Cal

Order #: ADT875PC-1210-BS-220V

Mfg #: ADT875PC-1210-BS-220V

$15,590.00
Availability: Ships in 2-3 weeks

Product Highlights

Thermocouple Calibration Furnace, 100°C to 1210°C, Insert BS, 220V, with Process Calibrator Option

  • Temperature control from 100°C to 1210°C
  • Two models to choose from: Reference (ADT878) and Standard (ADT875)
  • Display Accuracy of ±1.5°C (ADT878)
  • 4 on-board measurement channels (PC option)
  • Process calibrator option provides a multi-channel readout for TCs, switches and transmitters, including task documentation and HART communication
  • Portable, rugged and quick to temperature
  • Self-calibration feature (PC option)
  • Multi-zone temperature control
  • Internal and external sensor control (PC option)
  • Metallic interchangeable inserts
  • Wi-Fi and Bluetooth capable
  • Color touch screen display
  • ISO 17025-accredited calibration w/data included
  • Patent pending technology

We understand the many challenges associated with thermocouple calibration work. That is precisely why we decided to introduce the ADT875-1210 and ADT878-1210 Thermocouple Calibration Furnaces.

With an unmatched stability, uniformity and an optional on-board process calibrator, calibrating thermocouples has never been easier. With two separate units to choose from, the ADT875-1210 and ADT878-1210 furnaces include a patented multi-zone temperature control which provides a never before seen, highly stable and uniform heat source to ensure you get the best possible results from a modest investment. With metallic interchangeable inserts, users have the flexibility needed to service a wide variety of UUT

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Additel 9080
    Additel 9080 Cold Junction Kit (TC Plug, Cable, S, R, B, K, J, T, E, N)
    Cold Junction Kit (incl TC Plug, Cable, S,R,B,K,J,T,E,N)

    Order #: 9080ADT

    Mfg #: 9080

    Availability: Ships in 2-3 weeks
    $496.00
  2. Additel ADT110-875-TC-INSERT-AR Insert AR for ADT875-1210 Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-AR Insert AR for ADT875-1210 Thermocouple Calibration Furnace
    Insert AR for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-AR

    Mfg #: ADT110-875-TC-INSERT-AR

    Availability: Ships in 2-3 weeks
    $1,176.00
  3. Additel ADT110-875-TC-INSERT-BS Insert BS for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-BS Insert BS for ADT875-1210 Thermocouple Calibration Furnace
    Insert BS for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-BS

    Mfg #: ADT110-875-TC-INSERT-BS

    Availability: Ships in 2-3 weeks
    $1,176.00
  4. Additel ADT110-875-H-INSERT-B Insert B for ADT875, High Temp
    Additel ADT110-875-H-INSERT-B Insert B for ADT875, High Temperature
    Insert B for ADT875, High Temp

    Order #: ADT110-875-H-INSERT-B

    Mfg #: ADT110-875-H-INSERT-B

    Availability: Ships in 2-3 weeks
    $480.00
  5. Additel ADT110-875-H-INSERT-C Insert C for ADT875, High Temp
    Additel ADT110-875-H-INSERT-C Insert C for ADT875, High Temperature
    Insert C for ADT875, High Temp

    Order #: ADT110-875-H-INSERT-C

    Mfg #: ADT110-875-H-INSERT-C

    Availability: Ships in 2-3 weeks
    $480.00
  6. Additel ADT110-875-TC-INSERT-ES Insert ES for ADT875-1210  Thermocouple Calibration Furn
    Additel ADT110-875-TC-INSERT-ES Insert ES for ADT875-1210 Thermocouple Calibration Furnace
    Insert ES for ADT875-1210 Thermocouple Calibration Furn.

    Order #: ADT110-875-TC-INSERT-ES

    Mfg #: ADT110-875-TC-INSERT-ES

    Availability: Ships in 2-3 weeks
    $1,176.00
  7. Additel ADT110-875-H-INSERT-Z Insert Z for ADT875, High Temp
    Additel ADT110-875-H-INSERT-Z Insert Z for ADT875, High Temperature, Blank
    Insert Z for ADT875, High Temp Blank

    Order #: ADT110-875-H-INSERT-Z

    Mfg #: ADT110-875-H-INSERT-Z

    Availability:
    In stock
    $314.00
  8. Additel ADT110-875-L-INSERT-B Insert B for ADT875, Low Temp
    Additel ADT110-875-L-INSERT-B Insert B for ADT875, Low Temperature
    Insert B for ADT875, Low Temp

    Order #: ADT110-875-L-INSERT-B

    Mfg #: ADT110-875-L-INSERT-B

    Availability: Ships in 2-3 weeks
    $375.00
  9. Additel ADT110-875-L-INSERT-C Insert C for ADT875, Low Temp
    Additel ADT110-875-L-INSERT-C Insert C for ADT875, Low Temperature
    Insert C for ADT875, Low Temp

    Order #: ADT110-875-L-INSERT-C

    Mfg #: ADT110-875-L-INSERT-C

    Availability: Ships in 2-3 weeks
    $375.00
  10. Additel 9915-875 Carry Case for ADT875-1210 or ADT878-1210 with wheels
    Additel 9915-875 Carrying Case for ADT875-1210 or ADT878-1210 with Wheels
    Carrying Case for ADT875-1210 or ADT878-1210 with Wheels

    Order #: 9915-875

    Mfg #: 9915-875

    Availability:
    In stock
    $779.00
  11. Additel ADT110-875-L-INSERT-Z Insert Z for ADT875, Low Temp
    Additel ADT110-875-L-INSERT-Z Insert Z for ADT875, Low Temperature, Blank
    Insert Z for ADT875, Low Temp Blank

    Order #: ADT110-875-L-INSERT-Z

    Mfg #: ADT110-875-L-INSERT-Z

    Availability: Ships in 2-3 weeks
    $249.00
  12. Additel ADT110-875-L-SHRT-IKIT ADT875 Drywell Short Probe Kit
    Additel ADT110-875-L-SHRT-IKIT ADT875 Drywell Short Probe Kit
    ADT875 Drywell Short Probe Kit

    Order #: ADT110-875-L-SHRT-IKIT

    Mfg #: ADT110-875-L-SHRT-IKIT

    Availability: Ships in 2-3 weeks
    $2,047.00
  13. Additel ADT110-875-L-SHRT-MKIT ADT875 Drywell Short Probe Kit
    Additel ADT110-875-L-SHRT-MKIT ADT875 Drywell Short Probe Kit
    ADT875 Drywell Short Probe Kit

    Order #: ADT110-875-L-SHRT-MKIT

    Mfg #: ADT110-875-L-SHRT-MKIT

    Availability: Ships in 2-3 weeks
    $2,047.00
  14. Additel AM1710-BEND-ADT-17025 100Ohm Secondary PRT, -40 to 160C, 1/4", 90deg Bend at 7.5
    Additel AM1710-BEND-ADT-17025 100Ohm Secondary PRT, -40 to 160C, 1/4", 90deg Bend
    100Ohm Secondary PRT, -40 to 160C, 1/4", 90deg Bend at 7.5ô

    Order #: AM1710-BEND-ADT-17025

    Mfg #: AM1710-BEND-ADT-17025

    Availability: Ships in 2-3 weeks
    $1,392.00
  15. Additel AM1730-12-ADT Secondary PRT, -45 to 420C, 1/4"X12"
    Additel AM1730-12-ADT Secondary PRT, -45 to 420C, 1/4"X12", 100 Omega
    Secondary PRT, -45 to 420C 1/4"X12", 100 Omega

    Order #: AM1730-12-ADT

    Mfg #: AM1730-12-ADT

    Availability: Ships in 3-4 weeks
    $1,757.00
  16. Additel AM1730-12-ADT-17025 100Ohm Secondary PRT, -200 to 420degC, 1/4"X12", w/connector
    Additel AM1730-12-ADT-17025 100Ohm Secondary PRT, -200 to 420C, 1/4"X12", with connector
    100Ohm Secondary PRT, -200 to 420degC, 1/4"X12", w/connector

    Order #: AM1730-12-ADT-17025

    Mfg #: AM1730-12-ADT-17025

    Availability: Ships in 2-3 weeks
    $1,705.00
  17. Additel AM1730-BEND-ADT-17025 100Ohm Secondary PRT, -200 to 420C, 1/4",90deg Bend at 9.75
    Additel AM1730-BEND-ADT-17025 100Ohm Secondary PRT, -200 to 420C, 1/4", 90deg Bend
    100Ohm Secondary PRT, -200 to 420C, 1/4",90deg Bend at 9.75ô

    Order #: AM1730-BEND-ADT-17025

    Mfg #: AM1730-BEND-ADT-17025

    Availability: Ships in 2-3 weeks
    $1,865.00
  18. Additel AM1751-12-ADT Secondary PRT, -45 to 660C, 1/4"X12"
    Additel AM1751-12-ADT Secondary PRT, -45 to 660C, 1/4"X12", 100 Omega
    Secondary PRT, -45 to 660C 1/4"X12", 100 Omega

    Order #: AM1751-12-ADT

    Mfg #: AM1751-12-ADT

    Availability:
    In stock
    $2,117.00
  19. Additel AM1760-12-ADT Secondary Reference SPRT 100 Ohm, 12" x 1/4" -200C-670C
    Additel AM1760-12-ADT Secondary Reference SPRT, 100 Ohm, 12" x 1/4" -200C to 670C
    Secondary Reference SPRT 100 Ohm, 12" x 1/4" -200C-670C

    Order #: AM1760-12-ADT

    Mfg #: AM1760-12-ADT

    Availability: Ships in 2-3 weeks
    $3,551.00
General Specifications
875-1210 878-1210
Temperature Range 100°C to 1210°C
Display Accuracy ±1.2°C @ 100°C ±1.0°C @ 100°C
±1.2°C @ 300°C ±1.0°C @ 300°C
±1.2°C @ 600°C ±1.0°C @ 600°C
±1.6°C @ 900°C ±1.2°C @ 900°C
±2.0°C @ 1210°C ±1.5°C @ 1210°C
Stability ±0.1°C
Axial Uniformity (20mm zone) ±0.6°C @ 100°C ±0.4°C @ 100°C
±0.9°C @ 300°C ±0.6°C @ 300°C
±1.2°C @ 600°C ±0.8°C @ 600°C
±1.5°C @ 900°C ±1°C @ 900°C
±1.5°C @ 1210°C ±1°C @ 1210°C
Radial Uniformity ±0.2°C @ 100°C ±0.2°C @ 100°C
±0.3°C @ 300°C ±0.3°C @ 300°C
±0.4°C @ 600°C ±0.4°C @ 600°C
±0.8°C @ 900°C ±0.6C @ 900°C
±1°C @ 1210°C ±0.8°C @ 1210°C
Loading Effect ±0.5°C
Environmental Conditions 8°C to 38°C guaranteed accuracy
0°C to 50°C, 0% to 90% RH non-condensing,
3000 M altitude for normal operation
Storage Conditions -20°C to 60°C
Immersion Depth XR style inserts = 138 mm (5.43")
XS style inserts = 116 mm (4.57")
(see insert ordering info for more details)
Insert Size - OD 24.8 mm (0.98 inches)
Heating Time 50 min: 23°C to 1210°C
Cooling Time 50 mins:1210°C to 300°C 50 mins: 300°C to 50°C 55 mins:1210°C to 300°C 55 mins: 300°C to 50°C
Typical Time to Stability 15 min
Resolution 0.01°C
Units °C, °F, and K
Display 6.5 in (165 mm) color touch screen
Size (H x W x D) 345 x 170 x 330 mm (13.6 x 6.7 x 13.0 in)
Weight 10.6 kg (23.4 lbs)
Power Requirements 115 V AC (±10%) or 230 V AC (±10%), switchable, 45-65 Hz, 580 W
Mechanical Testing Vibration: 2 g (10-500 Hz), 30 min for 2 sides
Impact: 4 g three times
Drop test: 500 mm (19.6 in)
Communication USB A, USB B, RJ45, WiFi, Bluetooth
Localization English, Chinese, Japanese, Russian, German
Warranty 1 year
Input Specifications (Process Calibrator [PC] Option)
875-1210 878-1210
TC Measurement Channels Patented TC terminals:
Accepting S, R, K, B, N, E, J, T, L, and U
TC Measurement Accuracy Type K Ch. 1-4 (excluding sensor) ±0.182°C @ 100°C ±0.172°C @ 100°C
±0.266°C @ 300°C ±0.236°C @ 300°C
±0.310°C @ 600°C ±0.251°C @ 600°C
±0.397°C @ 900°C ±0.304°C @ 900°C
±0.517°C @1210°C ±0.382°C @ 1210°C
TC Range €"75 mV to 75 mV (UUT Channels 1-4)
€"18 mV to 18 mV (Reference Channel)
TC Resolution 0.0001 mV, Input Impedance < 10Î
