Fluke Calibration 9102S-156 Handheld Dry-Well, -10C to 122C (14F to 252F) @ 23C, NIST

Order # 5961T | Mfg # 1885178
$5,370.00
Also Available:
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Puerto Rico only.

Overview

Product Highlights

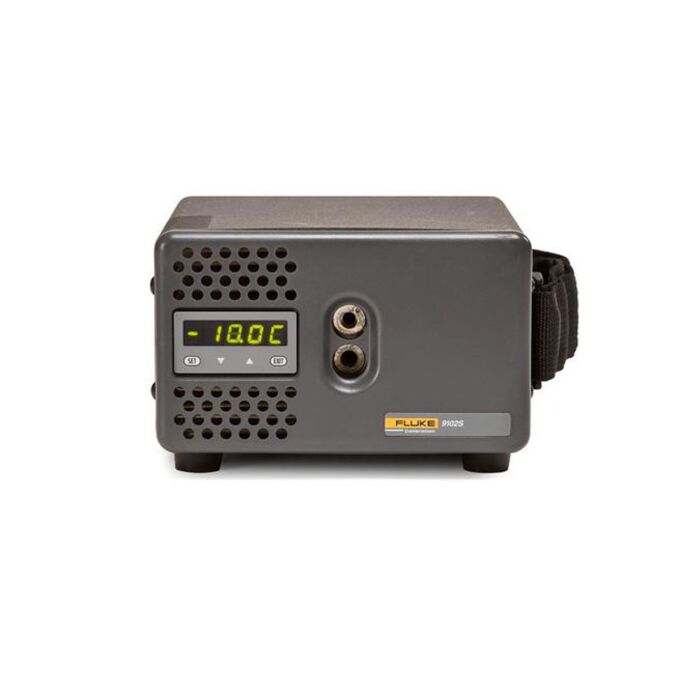

For work in the temperature range of –10°C to 122°C, our Model 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.

This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.

The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.

  • -10°C to 122°C (14°F to 252°F) at 23°C ambient
  • Accuracy: -10°C to 100°C ±0.5°C
  • 100°C to 122°C ±1.0°C
  • Well-to-well uniformity: ±0.2°C sensors of similar size at equal depths within wells
  • Heating Times: ambient to 100°C : 10 minutes
  • Stabilization: 7 Minutes
  • Cooling times: ambient to 0°C : 10 minutes
  • Well Depth: 4 inches (102 mm)
  • Removable inserts: available in sizes from 1/16" (1.6mm) to 7/16" (11.1mm) [with 1/4" (6.4mm) and 3/16" (4.8mm) included]
  • Size: 3.9"H x 5.5"W x 6.9"D (99 x 140 x 175 mm)
  • Weight: 4 lb (1.8 kg)
  • NIST Traceable Calibration Points at: -10°C, 25°C, 50°C, 55°C, 100°C, 122°C

Each Unit Includes

  • One 1/4" Insert, One 3/16" Insert
  • Manufacturer's NIST-Traceable Certificate
  • Instructions

Webinars

Automating and Documenting Temperature Calibration Webinar with Fluke Calibration

Technical Resources

Fluke Calibration 9102S-156 Handheld Dry-Well, -10C to 122C (14F to 252F) @ 23C, NIST Accessories

checkbox-empty
Select
3102-6
checkbox-empty
Select
Fluke Calibration 3102-0 Insert for low-temperature calibrator, blank diameter
checkbox-empty
Select
3102-4
checkbox-empty
Select
Fluke Calibration 9300 Rugged Carrying Case
Fluke Calibration 9300 Rugged Carrying Case
Special Price $227.90 Save 14 % Regular Price $265.00
View details external-link
checkbox-empty
Select
Pelican Products 1200
checkbox-empty
Select
Fluke Calibration 9308 Hard Carrying Case
Fluke Calibration 9308 Hard Carrying Case
Special Price $300.14 Save 14 % Regular Price $349.00
View details external-link
checkbox-empty
Select
3102-5
checkbox-empty
Select
Fluke Calibration 3102-2 1/8" Insert for 9102S & 9009
checkbox-empty
Select

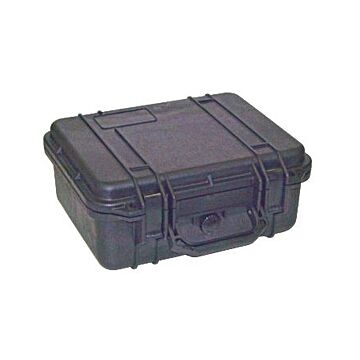

Pelican Products 1400-C
