RIGOL DS70304

Order # DS70304 | Mfg # DS70304
$25,999.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

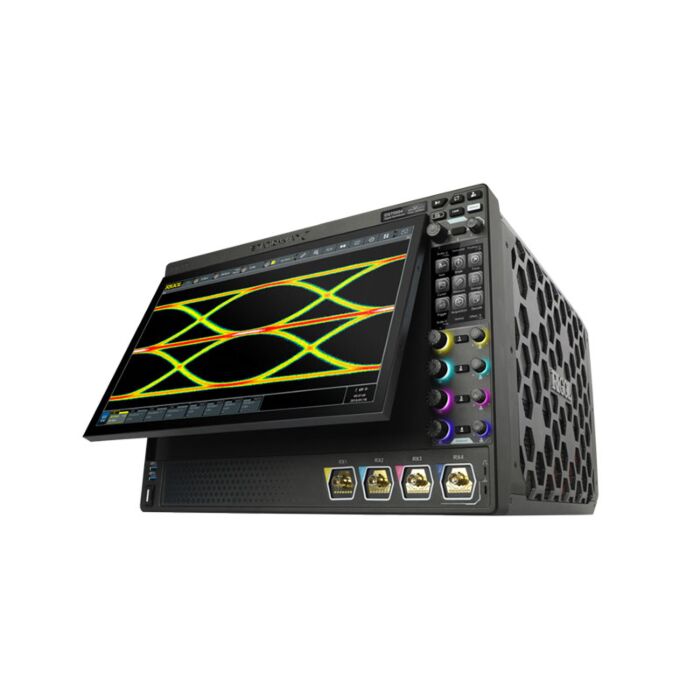

3 GHz Oscilloscope with 20 Gsa/sec sampling and 15.6" Display

DS70000 series digital oscilloscope utilizes RIGOL's chipset "Phoenix", delivering excellent performance with a maximum sample rate of 20 GSa/s, 5 GHz bandwidth. RIGOL's brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate up to millions of waveforms per second, 2 Gpts memory depth, 8-16 bits adjustable resolution, and 10,000 FFTs/s. In addition to the improved hardware specifications, the DS70000 series digital oscilloscope has a main 15.6-inch HD capacitive multi-touch screen equipped with electronically controlled one-button screen inclination for signal visualization, analysis, and results; a secondary 3.5-inch small screen with a customized function and shortcut menu display; and other user-friendly designs, bringing users an extraordinary human-machine interface experience.

N-in-1

Integrated Digital Oscilloscope: In today's integrated design field, a highly integrated comprehensive digital oscilloscope has become an important tool for design engineers. RIGOL's DS7000 series oscilloscope integrates 5 independent instruments into 1 including a digital oscilloscope, one spectrum analyzer, one digital voltmeter, one high precision frequency counter and totalizer, and one protocol analyzer. The DS7000 series provides a comprehensive instrument that meets your actual test needs.

Digital Oscilloscope

  • Bandwidth model: 3 GHz, 5 GHz
  • Up to 20 GSa/s real-time sample rate
  • 4 analog channels and 1 EXT channel
  • Up to 2 Gpts memory depth
  • Maximum waveform capture rate of 1,000,000 wfms/s

Digital Voltmeter

  • 3-digit DC/ACRMS, AC+DCRMS voltage measurement
  • Sounds an alarm for reaching or exceeding the limits

High-Precision Frequency Counter and Totalizer

  • 3 to 8-digit (selectable) high precision frequency counter
  • Supports the statistics on the maximum and minimum values of the frequency
  • 48-bit totalizer (standard)

Real-Time Spectrum Analyzer (Option)

  • Standard configuration of enhanced FFT, real-time operating for max. 16 Mpts waveform data
  • Up to 4 groups of operations can be displayed at the same time
  • Independent FFT color persistence view supported
  • Up to 15 peaks available for the peak search function; event table available to be exported

Protocol Analyzer (Option)

  • Supports RS232/UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553 serial bus
  • Supports analog channel trigger and decoding
  • Works with waveform recording and pass/fail mask testing

Technical Resources

RIGOL DS70304 Accessories

checkbox-empty
Select
Rigol DS70000-AEROA Aerospace Serial Bus Trigger and Analysis
checkbox-empty
Select
Rigol DS70000-AUDIOA Audio Serial bus Trigger and Analysis (I2S)
checkbox-empty
Select
Rigol DS70000-AUTOA Auto Serial Bus Trigger and Analysis
checkbox-empty
Select
Rigol DS70000-EMBDA Embedded Serial Bus Trigger and Analysis
checkbox-empty
Select
Rigol DS70000-ENETC 10/100/1000 Mb/s Ethernet Pre-compliance Test
checkbox-empty
Select
Rigol DS70000-JITTA Real-time Eye Diagram and Jitter Analysis Option
checkbox-empty
Select
Rigol DS70000-RL-20 2 Billion Points Memory Depth Upgrade
checkbox-empty
Select
Rigol DS70000-RTSA Real Time Spectrum Analysis
checkbox-empty
Select
Rigol DS70000-USBC USB2.0 Pre-compliance Test
