Fluke Networks FI2-7300

FiberInspector Pro V2, w/WIFI

Order #: FI2-7300

Mfg #: 5102097

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,675.00

Fluke Networks FI2-7300

FiberInspector Pro V2, w/WIFI

Order #: FI2-7300

Mfg #: 5102097

$5,675.00
Availability: Ships in 2-3 weeks
Available Promotions
This product is available for shipping to the United States and Puerto Rico only.
This product is available for shipping to the United States and Puerto Rico only.
This product is available for shipping to the United States and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

The FI-3000 FiberInspector™ Pro MPO Camera is the industry’s most efficient MPO inspection solution. Start with an instant view of the entire fiber endface using the Live View feature. Then use the simple gesture-based interface to zoom in on each fiber or perform an optional automated PASS/FAIL analysis in seconds. Its ergonomic design makes it comfortable even when inspecting hundreds of bulkheads and cables. Choose from two user interface and reporting methods. First, the iOS/Android app allows you to inspect your MPO installation using your phone and easily share their inspection results via text or even social media. Second, pair the FiberInspector with Versiv™ Cabling Certification System using its user interface and industry-leading LinkWare™ reporting system. With Versiv and LinkWare you can test copper, fiber loss, OTDR and inspection and combine the results into one complete report.

Eliminate the #1 cause of fiber failure

Endface contamination the leading cause of fiber failures. Dirt and debris cause insertion loss and reflections that inhibit optical transmission and cause havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time consuming and inaccurate. Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep end-faces clean. Avoiding this common cause of failure starts with inspecting the end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment. Inspection is critical for MPO based fiber installations as dirt and other debris can be easily moved from one fiber end face to another.

Grab the Most Efficient MPO Inspection Solution

The FI-3000 FiberInspector Pro camera offers an extensive feature set that makes testing MPO trunks, cassettes and array cables easy and efficient. The multiple camera design with autofocus provides a Live View of the entire endface on your Versiv or smart phone instantly - then use simple touchscreen gestures to look at individual endfaces in real time. Touch “TEST”, and in seconds, you’ll get an automated PASS/FAIL result compliant with IEC 61300-3-35. Use the industry-leading LinkWare platform to store complete project reports including copper, fiber loss, OTDR and endface images or store results on your phone and share them through text messages or email. The compact, ergonomic design with autofocus makes it comfortable and fast even when you’re testing hundreds of cable or ports.

  • Total endface visibility with Live View from full trunk to individual endface
  • Integrates with Versiv/LinkWare for simple operation and documentation or with mobile phones for testing and sharing
  • Optional automated PASS/FAIL results in less than two seconds per fiber
  • Multiple Autofocus/Autocentering Camera design for real time imaging
  • Rugged, ergonomic design
  • Supports one or two rows of 8,12, or 16 UPC or APC connectors

Live View with AutoFocus and AutoCentering For Instant Real Time Visibility

Plug the MPO connector into the FI-3000 camera, touch the autofocus button, and the Live View feature delivers a live view of the fiber endface immediately - with no setup or processing time. Dual cameras provide a single, integrated view of the entire endface. Use simple gestures to zoom into the portion of interest, pan across the connector or just tap the image of a specific fiber for a detailed view. For documentation, high resolution images of the endface can be stored in the Versiv mainframe, uploaded to LinkWare for reporting or to a mobile phone for easy sharing.

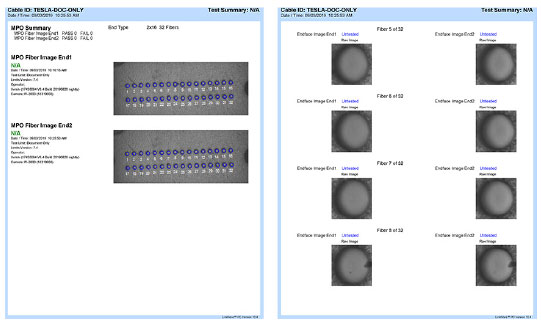

Detailed Reporting

Generate detailed PDF reports from your phone or Versiv tester. Versiv and LinkWare also support integrated reports including Tier 1 (Loss) and Tier 2 (OTDR) tests.

Detailed Reporting

Integrates with Versiv™ and LinkWare™ for Project Management and Reporting

For those installing multiple MPO trunks, cassettes or array cables as part of a new installation or upgrade, the FI-3000 integrates with any Versiv Cabling Certification System for fast, error free project management and reporting. The Versiv brand ProjX Management System lets you define each job including the types of cables, identifiers, required tests, and limits. Techs can use the same platform for loss (Tier 1), OTDR (Tier 2) and inspection, reducing training costs and the likelihood of errors. The FI-3000 connects to Versiv via a USB cable.

Versiv features a large, high resolution display that lets you see the results clearly. The gesture based Taptive™ screen makes it easy to pan across or zoom in and out of the Live View image.

The FI-3000 camera when used with a Versiv mainframe also works with LinkWare - the defacto industry standard for documenting cabling systems. LinkWare lets you combine Tier 1, Tier 2 and inspection results into a single report for full documentation of every link in the system. The cloud-based version, LinkWare Live, makes it easy to track progress of the job from your smartphone or PC and share results with customers.

The FI-3000-NW option provides the user the ability to test MPO connections in secure facilities that do not allow wireless capable devices. This kit has the same configuration as the FI-3000 but with Wi-Fi disabled.

Optional automated Pass/Fail testing of MPO trunks and end faces in seconds

The FI-3000 camera's optional autotest mode examines all fiber endfaces in the connector, grades them as per industry standard IEC 61300-3-35 and provides an overall PASS or FAIL result in less than two seconds per fiber. The gesture-based user interface makes it easy to switch from the summary to a detailed view.

When an endface fails, the FI-3000 camera shows which fibers failed, and highlights the areas that caused the failure: contamination, pits, chips and scratches. By understanding the cause of the failure, the user can determine the type of cleaning needed or if the connector is damaged beyond repair.

Optional automated Pass/Fail testing of MPO trunks and end faces in seconds

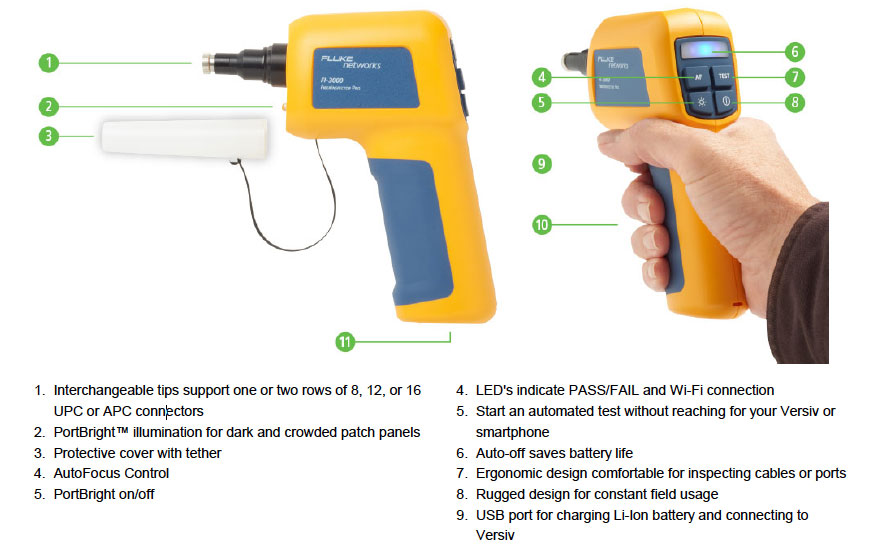

FI-3000 Features

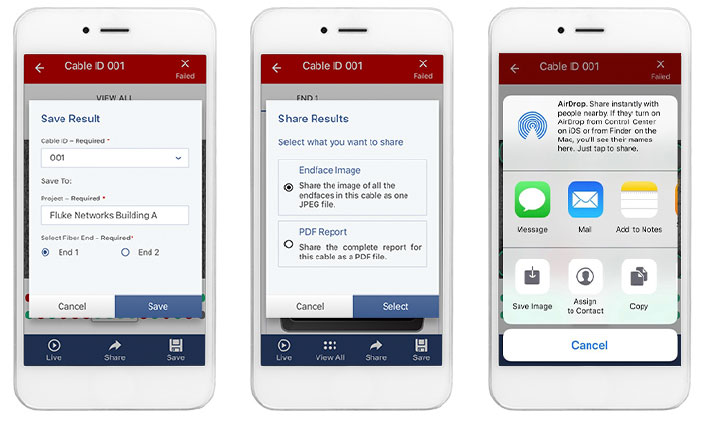

iOS and Android Apps for Simple Data Sharing

The FI-3000 camera can be connected over Wi-Fi to iOS or Android devices for small jobs or a quick inspection. The FiberInspector app (FI-IN) shows simple PASS/FAIL results, but also gives you complete control over the FI-3000 camera, so you can zoom in or out of each endface and pan across a Live View of the entire endface. FI-IN supports naming and storing of results in the device - or send them as an image or PDF report to others on the team for quick, simple collaboration.

iOS and Android Apps for Simple Data Sharing

Each Unit Includes

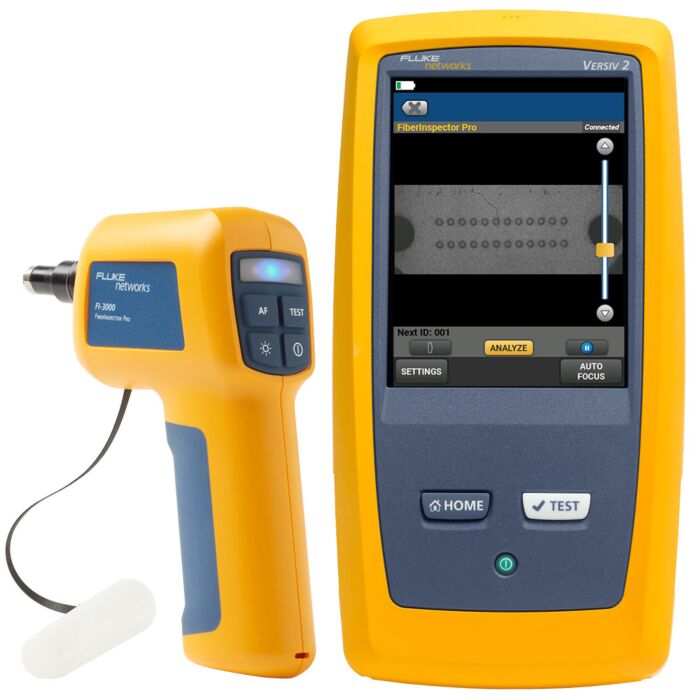

The FI2-7300 FiberInspector™ Pro MPO contains: Versiv Mainframe, FI-3000 MPO Camera, Holster, USB-USB C cable to connect the probe to the mainframe, Tip Set (12/24 UPC and 12/24 APC), Blank Module to protect the mainframe’s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Versiv Open Source Software CD, Integrated Wi-Fi, Getting Started Guide, Soft Carrying Case.
