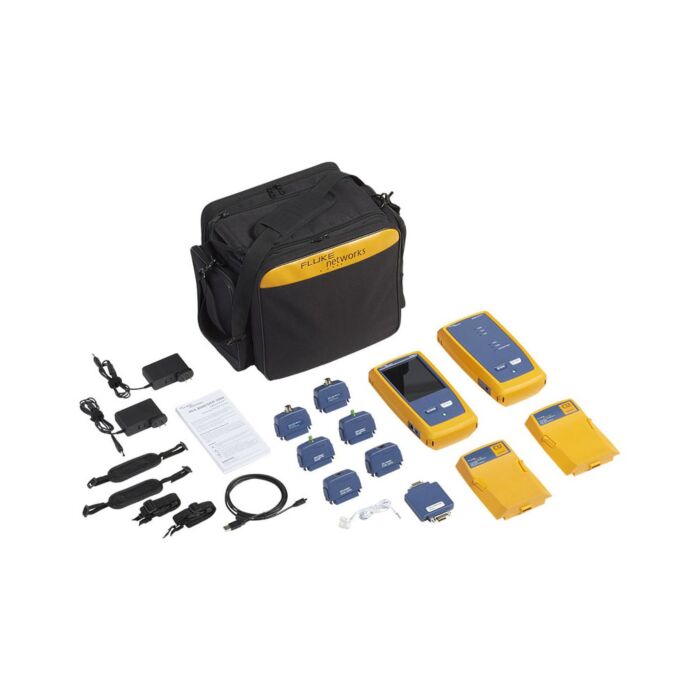

Fluke Networks DSX2-5-IE-K1 Industrial Ethernet DSX Kit 1
Order #: DSX2-5-IE-K1
Mfg #: 5081185
Product Highlights
Industrial environments are much harsher and more time sensitive than traditional IT environments. Ethernet packets can be corrupted (CRC, FCS errors) causing packet re-sends which increases latency which can disrupt communications resulting in production delays.
Cables that appear good and pass basic continuity and speed tests can be susceptible to vibration, moisture and contamination, temperature changes, and electromagnetic noise in a manner that causes ethernet packets to be intermittently corrupted.
The DSX Industrial Ethernet CableAnalyzer™ (DSX2-5-IE-K1) is based on the Fluke Networks DSX-5000 and supports testing copper Industrial Ethernet networks and has optional modules to support fiber optics.
- Validate that cables conform to international standards.
- Faster Startup: Ensure cable performance at machine builder, commissioning and after making changes.
- Prevent downtime: Find marginal cables susceptible to vibration, moisture, noise and temperature.
- Speed troubleshooting: Avoid wasting time installing bypass cables.
- Identify the exact type and location of cable failure—or prove it
DSX CableAnalyzer Series Specifications | |
Cable Types | |
Shielded and unshielded pair LAN cabling | TIA Cat 3, 4, 5, 5e, 6, 6A, 100 Ω ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 Ω and 120 Ω |
Standard Link Interface Adapters | |
Permanent link adapters | Plug type: shielded RJ45 Optional Plug type: Tera |
Channel Adapters | Jack type: shielded RJ45 Optional Jack type: Tera, GG45 |
Test Standards | |
TIA | Cat 3, 4, 5, 5e, 6, 6A, 8 per TIA 568 Series |
ISO/IEC | Class C, D, E, EA, F, FA, I/II certification per ISO/IEC 11801 Series |
Maximum frequency | DSX-5000 1000 MHz |
General Specifications | |
Autotest Time | DSX-5000: Full 2-way Autotest of Cat 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Cat 6A/Class EA: 10 seconds |
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests) | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-tocrosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F) |
Input protection | Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage |
Display | 5.7 in LCD display with a projected capacitance touchscreen |
Case | High impact plastic with show absorbing overmold |
Dimensions | Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
Weight | Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg) |
Main unit and remote | Lithium ion battery pack, 7.2 V |
Typical battery life | 8 hours |
Charge time* | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity |
Languages supported | English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian |
Calibration | Service center calibration period is 1 year |
Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
