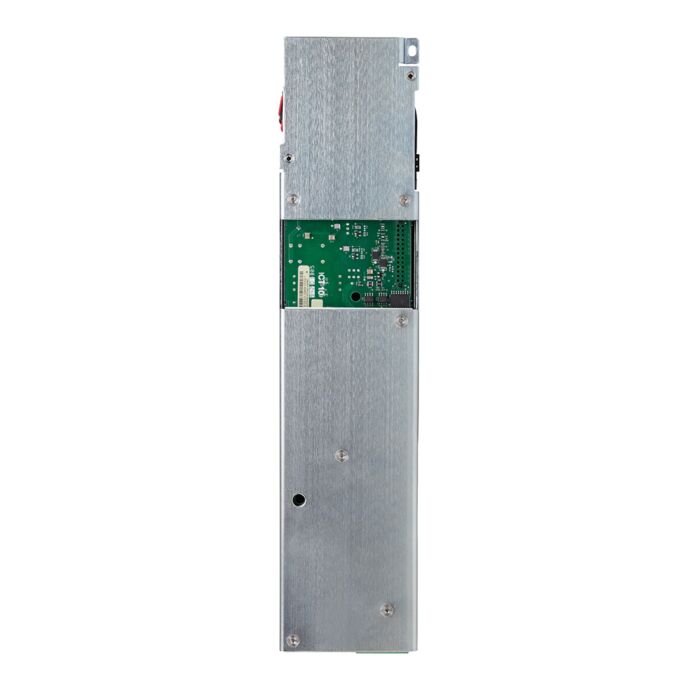

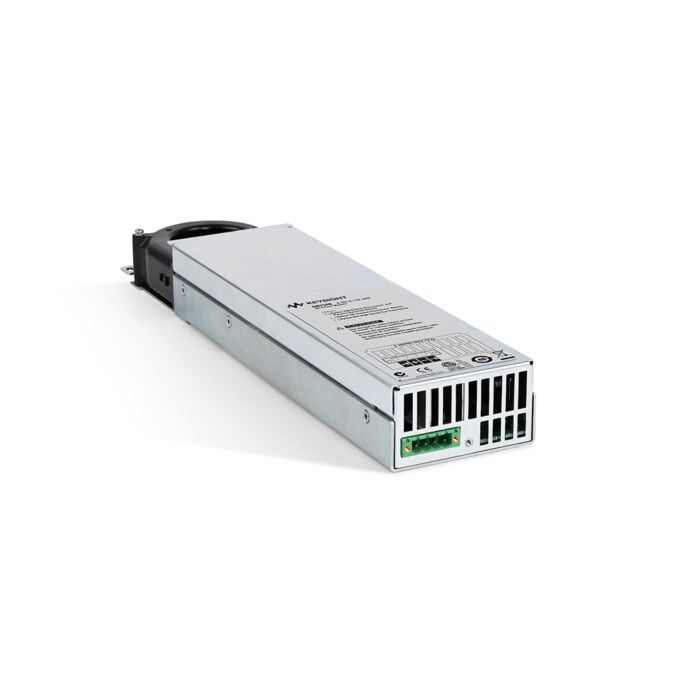

Keysight N6700 DC Power Module, 35V/1.5A/50W
DC Power Module,35V/1.5A/50W
Order #: N6734B
Mfg #: N6734B
$780.00
Keysight N6700 DC Power Module, 35V/1.5A/50W
DC Power Module,35V/1.5A/50W
Order #: N6734B
Mfg #: N6734B
$780.00
Availability: Ships in 4-6 weeks
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Canada only.
Product Highlights
Guide to Agilent Power Supplies
Application Notes:
- Create Complex Sequences with a DC Power Supply
- Improve Power Supply Performance & Safety Using Remote Sensing & Remote Inhibit
- Achieve Cleaner Power Signals by Minimizing Common Sources of Noise
- Voltage: 35 V
- Current (derated 1% per °C above 40°C): 1.5 A / 3 A
- Power: 52.5 W / 105 W
- Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
- Voltage: 0.1% + 35 mV
- Current: 0.15% + 20 mA
- Ripple & Noise from 20 Hz to 20 MHz
- CV peak-to-peak: 15 mV
- CV rms: 5 mV
- (PARD) CC rms: 2 mA
- Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
- Voltage: 11 mV
- Current: 2 mA
