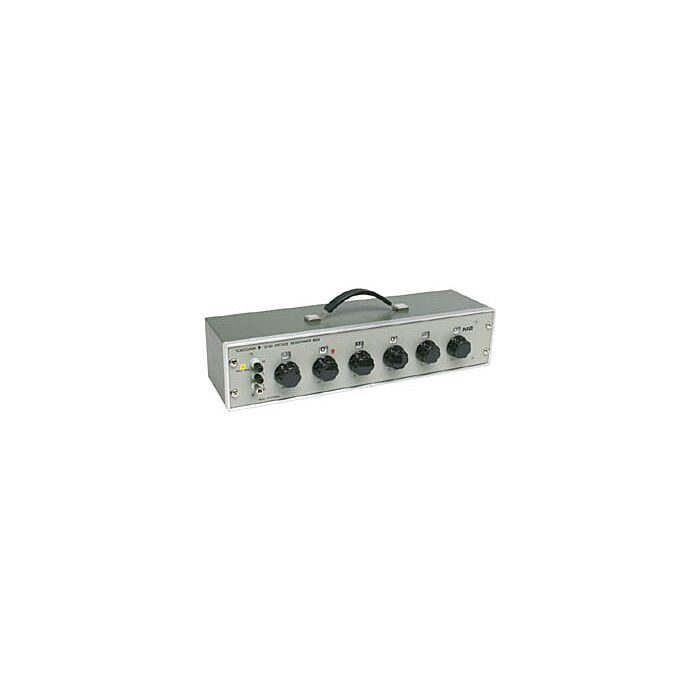

Yokogawa 2793-03
Decade Resistance Box,100 Mohm
Order #: 2793-03
Mfg #: 279303
$8,135.00
$8,135.00
The Yokogawa 2793 Decade Resistor Box series is a high-accuracy, stable DC variable resistor with 6 dials and is available in two styles: 279301 for medium resistance from 0.1 to 1,111.210Ω in 1mΩ steps. The 279303 is made for high-resistances from 0 to 111.1110MΩ in 100Ω steps.
Availability: Call for availability
Product Highlights
- Up to 100MΩ in 100Ω step
- Low voltage coefficient
- Variation of the resistance value is less that ±0.1% at 1MΩ and 10MΩ steps against 100V application, and less than ±0.04% at 100Ω, 1kΩ, 10kΩ, and 100kΩ steps against 10V application
- Shock and vibration proof construction
- Easy to read in-line indication
- Best suited for calibration of insulation resistance testers and bridges
