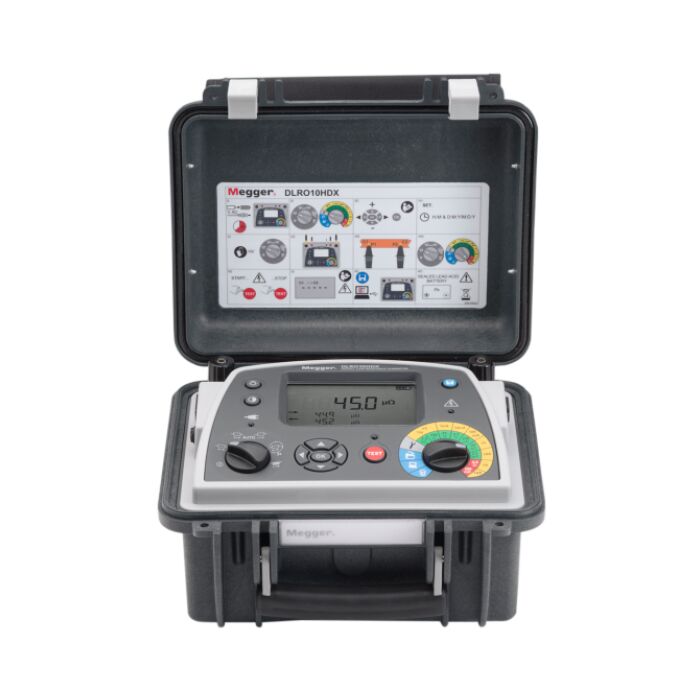

Megger DLRO10HD Digital Low Resistance Ohmmeter, 10-Amp

Order # DLRO-10HD | Mfg # 1006-603
$5,175.00
Also Available:
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

The heavy duty DLRO10HD and DLRO10HDX digital low resistance ohmmeters can deliver a 10 A current into circuits up to 250 mΩ and 1 A into circuits up to 2.5 Ω. The duration of each test can be up to 60 seconds, reducing the time required for cooling. These units have a high and low output power selection for condition diagnosis.

The DLRO10HD and DLRO10HDX instruments can be powered from their own sealed, rechargeable lead-acid battery or via mains power. This makes them suitable for continuous testing in repetitive use environments, such as production lines. Additionally, they come in a rugged case designed for stable ground and bench operation. They are IP54 rated when operational and IP65 when the lid is closed, which is ideal for working in all weather conditions.

Both units have five test modes: bidirectional (whereby current reversal with averaging cancels thermal EMFs), unidirectional, automatic, continuous, and inductive. You select the desired mode through a simple rotary control on the mode selection rotary switch. These rotary switches are easy to operate, even with gloved hands, and the instruments’ large, clear, backlit LCD makes for easy reading even from a distance.

The DLRO10HDX has some additional abilities over the DLRO10HD. It is rated CAT III 300 V (as long as the optional terminal cover is fitted to the instrument) and comes with onboard memory storage for up to 200 test results. The memory functions: ‘delete’, ‘download to PowerDB’, and ‘recalling test results’ are also accessible via the range selection rotary switch on this model.

  • High or low output power selection for condition diagnosis
  • Rechargeable battery or line power supply, continuous operation, even with dead battery
  • 10 A for 60 seconds, less time waiting to cool, great for charging inductance
  • High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse
  • Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)
  • Rotary switch selects one of five test modes, including auto start on connection, giving ease of use
  • Equally at home in the laboratory, the workshop or in the field, on the bench or on the ground, Megger’s new heavy duty DLRO10HD low resistance ohmmeter combines rugged construction with accuracy and ease of use
  • It features an internal rechargeable battery and can also operate from a mains supply, even if the battery is completely flat

Each Unit Includes

  • DH4 duplex handspike 1.2m
  • Test lead pouch (lid mounted)
  • DLRO10HD user guide CD
  • Warranty book
