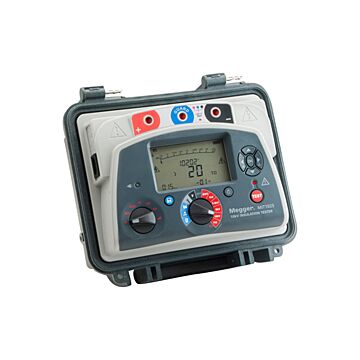

Megger MIT1525 Industrial Insulation Resistance Tester, 15kV

Order # MIT1525

Mfg # 1002-909

Also Available:

Buy Rental

Buy Used

800-828-1470

$8,325.00

Overview
Technical Resources
Accessories

Home

Megger MIT1525 Industrial Insulation Resistance Tester, 15kV

Megger MIT1525 Industrial Insulation Resistance Tester, 15kV

Order # MIT1525 | Mfg # 1002-909

new

Megger MIT1525 Industrial Insulation Resistance Tester, 15kV

Megger MIT1525 Industrial Insulation Resistance Tester, 15kV

$8,325.00

Ships in 3-4 weeks

Log in for Member Pricing

Ships Free Over $100

Megger's range of MIT insulation resistance testers are targeted at original equipment manufacturers and industrial companies. The top of the new range MIT1525 performs insulation resistance tests up to 15 kV with a 30 TΩ maximum resistance and an accuracy of ±5 % from 1 MΩ up to 3 TΩ
Be sure to Login to transcat.com for preferred member pricing.

Also Available:

Rental Buy Used

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

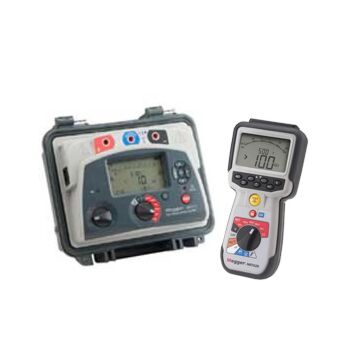

Save over $710 with the Megger MIT1525 VIP Kit.
- Limited Time Offer.
- FREE Megger MIT410 Insulation Tester

See the MIT1525 VIP Kit now!

15 kV IRT with all test modes, including a ramp test plus advanced memory functions with recall to screen, RTC for time/date.
The MIT1525 is at the top of the range, and it performs insulation resistance tests up to 15 kV with a 30 TΩ maximum resistance and an accuracy of ±5 % from 1 MΩ up to 3 TΩ.
IR, Timed IR, DAR, PI, DD, SV and ramp diagnostic tests
High current – 3 mA short circuit current
High noise immunity – 3mA (5kV and 10kV) 6mA (15kV) of noise rejection
Li-ion battery – up to 6 hrs continuous testing @ 5 kV with a 100M load, battery meets IEC 62133
Safety rating: CATIV 600 V to 3000 m (5 kV, 10 kV)
CATIV 1000 V to 3000 m (15 kV)
Large LCD display with backlight
Dedicated voltmeter function (30 V to 660 V)
Advanced memory, on screen recall and real time clock for date/time stamped results
Download of on-board results via USB interface
PowerDB Lite asset management software
Recorded temperature (measured by independent instruments) can be saved with test result
PowerDB Lite asset management software supplied

Each Unit Includes

Power lead
USB cable
PowerDB Lite software
Product Information CD

Technical Resources

Q

Megger MIT515, MIT525, MIT1025, & MIT1525 Datasheet
Megger Insulation Resistance Testers Brochure
Megger Insulation Resistance Testers Technical Guide
Megger Application Note: Salvaging Flood Damaged Electrical Equipment

Megger MIT1525 Industrial Insulation Resistance Tester, 15kV Accessories

Select

Megger 1008-022 / 6220-822 Lead Set 3 kv Insulated Clips

Megger 1008-022 Set of 3 Test Leads with Medium- sized 6kV Insulated Clips

$295.00

Select

1002-534

Megger 1002-534 3m (9.8') Lead Set, 10kv Insulated Clips (Set of 3)

$300.00

Select

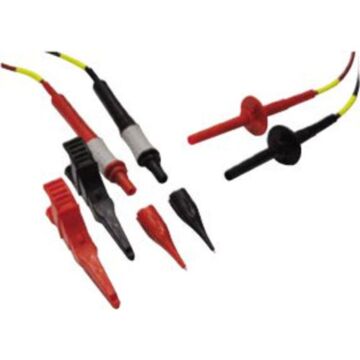

Megger 1002-913 Fused 1kV HV Lead Set

Megger 1002-913 Fused 1kV HV Lead Set

$305.00

Select

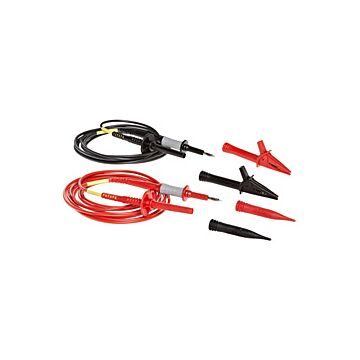

Megger 6220-822

Megger 6220-822 3m (9.8'), Red/Black Lead Set with 1kV Insulated Clips

$225.00

Select

Megger 1005-265 1kV Fused Test Lead Set 15kV Plug(2x1.25m)

Megger 1005-265 1kV Fused Test Lead Set, 15kV Plug (2x1.25m)

$215.00

Select

Megger 1005-264 1kV Control Circuit Lead Set 15kV Plug(2x3m)

Megger 1005-264 1kV Control Circuit Lead Set, 15kV Plug (2x3m)

$175.00

Select

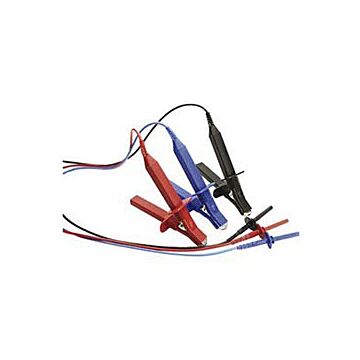

Megger 1002-645

Megger 1002-645 5m(16.5')Leadset x 3, Large Insulated Clips for 5kV & 10kV

$385.00

Select

Megger 1002-646

Megger 1002-646 8m(26.4')Leadset x 3, Large Insulated Clips for 10kV

$470.00

Select

Megger 1002-647 10m Test Lead Set, Large-sized 10kV Insulated Clips

Megger 1002-647 10m Test Lead Set, Large-sized 10kV Insulated Clips

$640.00

Select

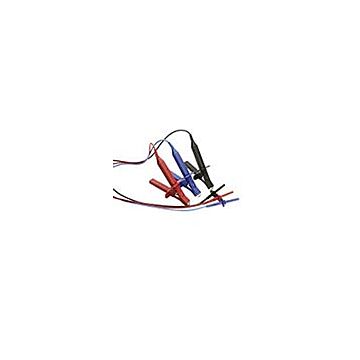

Megger 1002-648

Megger 1002-648 49' (15m) Test Lead Set, Large- Sized 10kV Insulated Clips

$900.00

Select

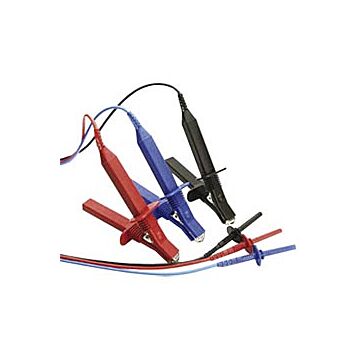

Megger 1002-641

Megger 1002-641 5m (16.5') leadset x 3, medium insulated clips for 5Kv & 10Kv

$350.00

Select

Megger 1002-642

Megger 1002-642 8m(26.4')Leadset x 3, Medium Insulated Clips for 5kV & 10kV

$465.00

Select

Megger 1002-643 10m (33') Lead Set, Medium-size Insulated Clips

Megger 1002-643 10m (33') Lead Set, Medium-size Insulated Clips

$605.00

Select

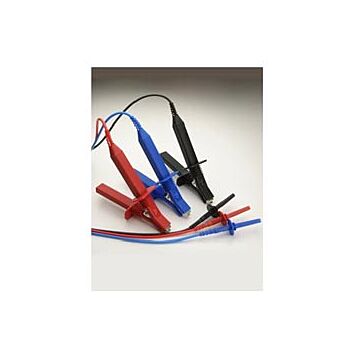

Megger 1002-644 15m (49ft) Lead Set, Medium-size Insulated Clips

Megger 1002-644 15m (49ft) Lead Set, Medium-size Insulated Clips

$875.00

Select

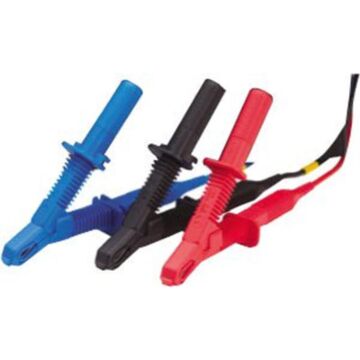

Megger 1005-259 Large-sized 15kV Insulated Clip Test Leads for MIT 15KkV

Megger 1005-259 Large-sized, 15kV, Insulated Clip Test Leads for MIT 15kV

$305.00

Select

Megger 1005-260 Large-sized 15kV Insulated Clip Test Leads for MIT 15KkV

Megger 1005-260 Large-sized, 15kV, Insulated Clip Test Leads for MIT 15kV

$400.00

Select

Megger 1005-261 Large-sized 15kV Insulated Clip Test Leads for MIT 15KkV

Megger 1005-261 Large-sized, 15kV, Insulated Clip Test Leads for MIT 15kV

$530.00

Select

Megger 1005-262 Med.Sized 6kV Insulated Clip Test Leads for MIT 15kV

Megger 1005-262 Medium Sized, 6kV, Insulated Clip Test Leads for MIT 15kV

$255.00

Select

Megger 1005-263 Med.Sized 6kV Insulated Clip Test Leads for MIT 15kV

Megger 1005-263 Medium Sized, 6kV, Insulated Clip Test Leads for MIT 15kV

$440.00

Select

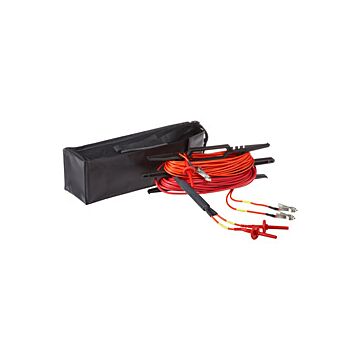

Megger 6311-080 Shielded Leads, 50' (15m) for BM15 and MJ15

Megger 6311-080 Shielded Leads, 50' (15m) for BM15 and MJ15

$715.00

Select

Megger 1008-023

Megger 1008-023 Large 15Kv Insulated Clips for MIT1525 only, 9.8' x 3

$158.60

Select

Megger 6220-834 10K Shielded Leads, 3 Meters

Megger 6220-834 10K Shielded Leads, 3 Meters

$795.00

Select

Megger 6220-861 10K Shielded Leads, 10 Meters

Megger 6220-861 10K Shielded Leads, 10 Meters

$930.00

Select

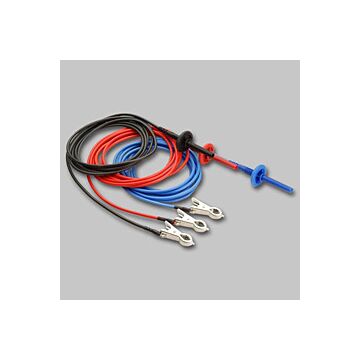

Megger 6220-833 10K Shielded Leads, 15 Meters
