Order #: MIT1025-VIP1
Mfg #: MIT1025-VIP1

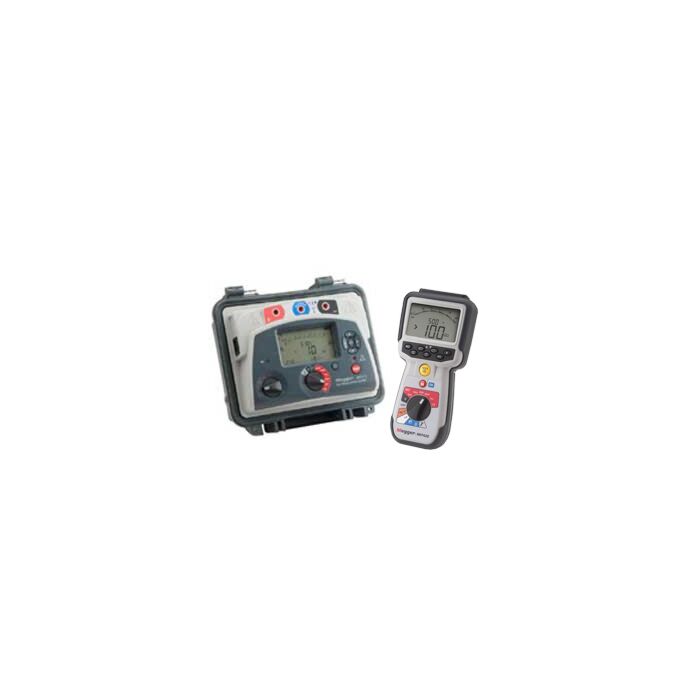

SAVE $735, receive a FREE MIT410/2 with VIP Kit!
Offering CAT IV, the Megger MIT1025 10-kV Insulation Resistance Tester is compact, light 10 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. Enclosed in a tough case it is both smaller and lighter than its predecessor making it even easier to carry and store.
Only need this item for a short time?
- Save over $735 with the Megger MIT1025 VIP Kit
- Limited Time Offer

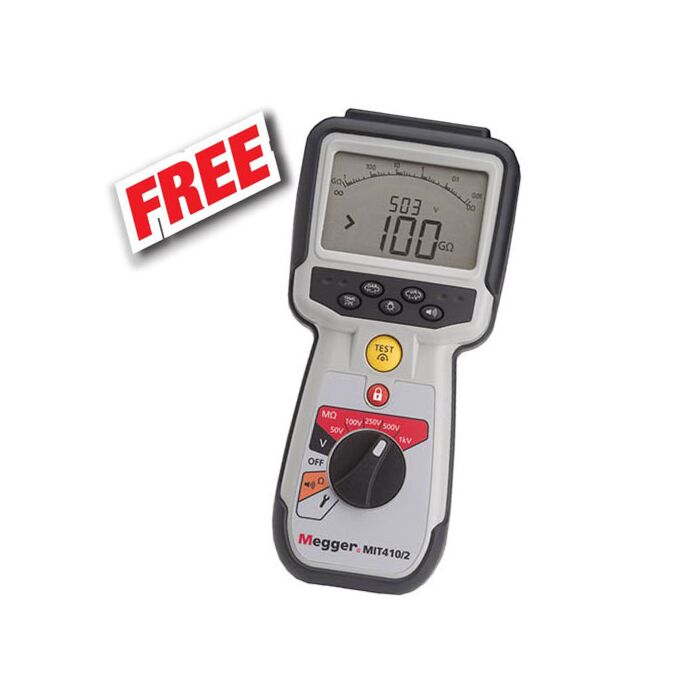

- FREE Megger MIT410/2
- Smaller size and lighter weight allows easier transport and use without compromising performance.
- High measurement range enables installation testing and long-term trending of higher value apparatus.
- Unique dual case design allows for fire-retardant protection while maintaining ruggedness.
- High-quality, flexible silicon test leads meet safety regulations of IEC 61010-31:2008 while ensuring measurement accuracy.
- Timed IR plus PI, DAR, DD, SV and ramp tests maximize diagnostic testing capability.
- Operate from line power when battery fully discharged (charges while operating).
- Two and one-half hour full battery charge time (one half hour charge for one hour testing) significantly increases productivity.
- Up to six hours continuous testing (5 kV) on a single battery charge.
- Industry best guard terminal performance to insure highest accuracy of measured values.
- Enhanced driver technology provides plug-and-play when connected to the internet. No tedious and potentially interruptive setup procedures.
- Dedicated voltmeter function (30 V to 660 V) with frequency measurement allows the user to check for induced voltages.
- CATIV 600 V safety rating on all terminals allows for safe use in the widest range of applications.
- Large LCD with automatic backlight.
- Noise filter rejects up to 3 mA noise for effective operation in electrically noisy environments.
- High altitude operation up to 3000 m while maintaining CATIV 600 V rating.
- Rotary switch operation for easy, intuitive field use.
- Field replaceable battery
Each Unit Includes
- FREE MIT410/2
- User guide CD
- Power lead
- 10 ft (3 m) leadset x 3, medium insulated clips
- 10 ft (3 m) 3 m leadset x 3, large insulated clips

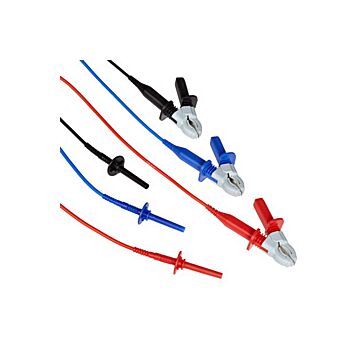

- Megger 1008-022Set of 3 Test Leads w/Medium- sized 6kV Insulated Clips
Order #: 45970EL
Mfg #: 1008-022Availability:Out of stock$255.00
- Megger 1002-5343m (9.8') Lead Set,10kv Insulated Clips (Set of 3)
Order #: 1002-534
Mfg #: 1002-534Availability:Out of stock$260.00
- Megger 1002-913Fused 1kV HV Lead Set
Order #: 1002-913
Mfg #: 1002-913Availability: Ships in 2-3 weeks$265.00
- Megger 6220-8223m(9.8ft)Red/Black Lead Set w/1kV Insulated Clips
Order #: 6220-822
Mfg #: 6220-822Availability:Out of stock$195.00
- Megger 1005-2651kV Fused Test Lead Set 15kV Plug(2x1.25m)
Order #: 1005-265
Mfg #: 1005-265Availability: Ships in 2-3 weeks$160.00
- Megger 1005-2641kV Control Circuit Lead Set 15kV Plug(2x3m)
Order #: 1005-264
Mfg #: 1005-264Availability: Ships in 2-3 weeks$154.00
- Megger 1002-6455m(16.5ft)Leadset x 3,Large Insulated Clips for 5kV & 10kV
Order #: 1002-645
Mfg #: 1002-645Availability: Ships in 2-3 weeks$335.00
- Megger 1002-6468m(26.4ft)Leadset x 3,Large Insulated Clips for 10kV
Order #: 1002-646
Mfg #: 1002-646Availability: Ships in 2-3 weeks$415.00
- Megger 1002-64710m Test Lead Set,Large-sized 10kV Insulated Clips
Order #: 1002-647
Mfg #: 1002-647Availability:Out of stock$565.00
- Megger 1002-64849'(15m)Test Lead Set,Large- Sized 10kV Insulated Clips
Order #: 1002-648
Mfg #: 1002-648Availability: Ships in 2-3 weeks$795.00
- Megger 1002-6415m (16.5ft) leadset x 3, medium insulated clips for 5Kv & 10Kv
Order #: 1002-641
Mfg #: 1002-641Availability: Ships in 2-3 weeks$310.00

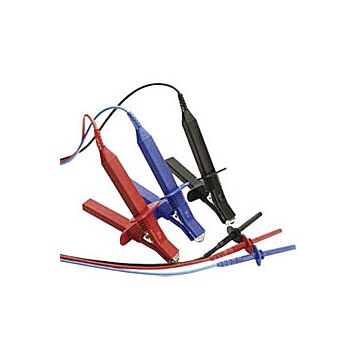

- Megger 1002-6428m(26.4ft)Leadset x 3,Medium Insulated Clips for 5kV & 10kV
Order #: 1002-642
Mfg #: 1002-642Availability: Ships in 2-3 weeks$410.00
- Megger 1002-64310m (33') Lead Set, Medium-size Insulated Clips
Order #: 1002-643
Mfg #: 1002-643Availability: Ships in 2-3 weeks$535.00
- Megger 1002-64415m (49ft) Lead Set, Medium-size Insulated Clips
Order #: 1002-644
Mfg #: 1002-644Availability: Ships in 2-3 weeks$775.00
- Megger 1005-259Large-sized 15kV Insulated Clip Test Leads for MIT 15KkV
Order #: 1005-259
Mfg #: 1005-259Availability: Ships in 2-3 weeks$265.00

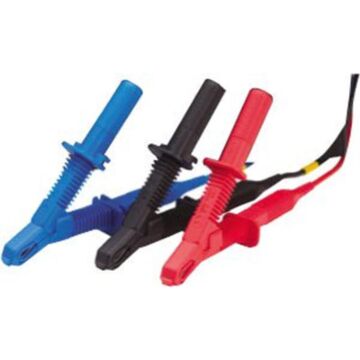

- Megger 1005-260Large-sized 15kV Insulated Clip Test Leads for MIT 15KkV
Order #: 1005-260
Mfg #: 1005-260Availability: Ships in 2-3 weeks$350.00
- Megger 1005-261Large-sized 15kV Insulated Clip Test Leads for MIT 15KkV
Order #: 1005-261
Mfg #: 1005-261Availability: Ships in 2-3 weeks$470.00
- Megger 1005-262Med.Sized 6kV Insulated Clip Test Leads for MIT 15kV
Order #: 1005-262
Mfg #: 1005-262Availability: Ships in 2-3 weeks$225.00
- Megger 1005-263Med.Sized 6kV Insulated Clip Test Leads for MIT 15kV
Order #: 1005-263
Mfg #: 1005-263Availability: Ships in 2-3 weeks$390.00
- Megger 6311-080Shielded Leads 50ft (15m) for BM15 and MJ15
Order #: 6311-080
Mfg #: 6311-080Availability: Ships in 2-3 weeks$630.00
- Megger 6220-83410K Shielded Leads 3 Meters
Order #: 6220-834
Mfg #: 6220-834Availability: Ships in 2-3 weeks$705.00
- Megger 6220-86110K Shielded Leads 10 Meters
Order #: 6220-861
Mfg #: 6220-861Availability: Ships in 2-3 weeks$825.00
- Megger 6220-83310K Shielded Leads 15 Meters
Order #: 6220-833
Mfg #: 6220-833Availability: Ships in 2-3 weeks$895.00

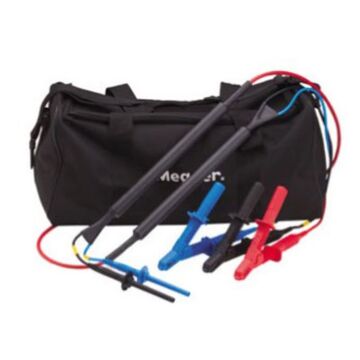

- Megger 1005-26615kV Screened Test Leads w/Large 15kV Clips
