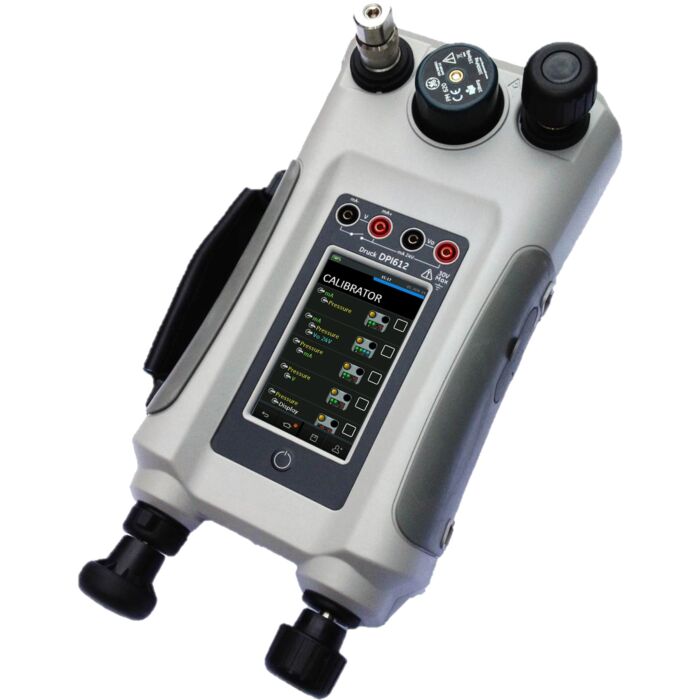

Druck DPI612 Pneumatic pFlex Vacuum Calibrator, -14.5 to 100 PSIG

Order # DPI612-PFX-7G | Mfg # DPI 612-PFX-7G

$6,647.00

Please contact Transcat Customer Service for availability.

These fully self-contained pressure test and calibration systems have interchangeable pressure modules for flexible ranging, generate pneumatic pressure, measure process signals and supply loop power. They provide all the convenience of the Druck DPI 610/615 series with significantly improved generation capabilities, higher accuracy and simplified touch screen operation. The pFlex pneumatic versions have a simple selector to let you convert from vacuum to pressure and with the high efficiency hand pumps and volume adjusters you can generate accurate pressure quickly and with ease.

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

ideal in low to medium pressure applications from a few mbar/psi to 20 bar/300 psi
Pressure Range: -14.5 to 100 gauge
Maximum working pressure: 20 bar / 30 psi pneumatic
Maximum vacuum: -95% of atmospheric pressure
Pressure media: Non-corrosive gases
Pressure connection: Quick-to-fit connection system. G1/8 female and 1/8 NPT female adaptors are provided
Size and weight: 350 mm x 170 mm x 145 mm ( 13.7 in x 6.7 in x 5.7 in) excluding accessories 3.4 kg (7.5 lb) including battery and pressure module
Generation system: Pressure/vacuum selector, high efficiency pump, fine adjuster, precision release valve
