Druck DPI612
Pneumatic pFlexPro Pressure Calibrator Vacuum to 1,500 PSI

Order #: DPI 612-PFP-00

Mfg #: DPI 612-PFP-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$4,965.00

Druck DPI612

Pneumatic pFlexPro Pressure Calibrator Vacuum to 1,500 PSI

Order #: DPI 612-PFP-00

Mfg #: DPI 612-PFP-00

Loading...
Print Email Save Item Compare
$4,965.00
Register to view exclusive member pricing
This model excels in a wide range of applications from a few mbar/psi through to 100 bar/1500 psi. It retains the low to medium pressure capability of the pFlex, but incorporates an advanced generation system extending its range five times. The pressure intensifier makes generating pressures from a few mbar/psi through to 40 bar/600 psi much quicker and easier and on the occasions when high pressure is required from a clean gas source, the pFlexPro is a safe and easy-to-transport alternative to bottled gas.
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Maximum working pressure: 100 bar / 1500 psi pneumatic
  • Maximum vacuum: -95% of atmospheric pressure
  • Pressure media: Non-corrosive gases
  • Pressure connection: Quick-to-fit connection system. G1/8 female and 1/8 NPT female adaptors are provided
  • Size and weight: 350 mm x 170 mm x 160 mm ( 13.7 in x 6.7 in x 6.3 in) excluding accessories 4.1 kg (9 lb) including battery and pressure module
  • Pressure module not included

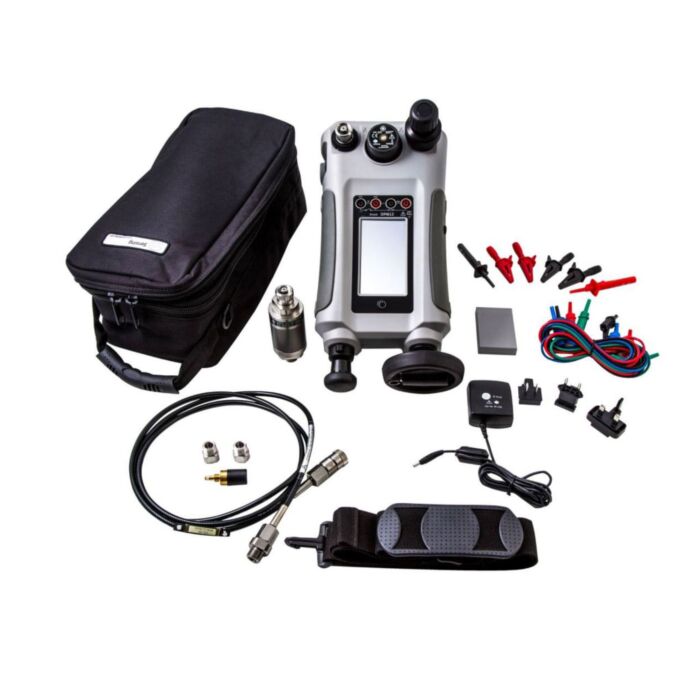

Each Unit Includes

  • includes battery charger ( IO620-PSU)
  • carrying strap (IO612-STRAP)
  • test leads (IO61X-LEADS)
  • user guide
  • calibration certificate
