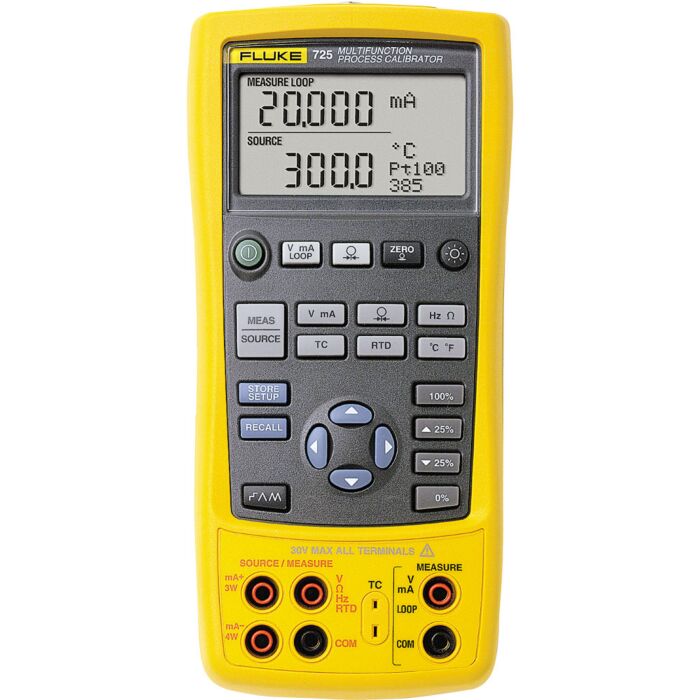

Fluke 725 Multifunction Process Calibrator

Order # 725E | Mfg # 664133

Fluke 725 Multifunction Process Calibrator

$4,204.99

In stock

Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

SAVE OVER $185! FREE Tools include:

Fluke Tpak Tool Hanger
Soft Carrying Case
J,K,T,E Mini T/C Lead Set
Pack of 128 Self Laminating Green Calibration Labels

View the Fluke 725 with FREE TOOLS!

Product Highlights

Measure volts, mA, RTDs, thermocouples, frequency, and ohms
Source/simulate volts, mA, RTDs, thermocouples, frequency, and ohms
Measure and source pressure using Fluke 700P series pressure modules
Dual display shows input and output
Built in 24V loop power supply
Programmable step and ramp for automated testing
Powered by 4 AA batteries (25 hours typical operation)
Size/weight 7.9" x 3.8" x 1.9"

Each Unit Includes

(1 set) AC72 alligator clips
(1 pair) stackable test leads
(1 pair) TL75 test leads
NIST- traceable calibration report and data
Quick Reference Guide
3-year warranty

Technical Resources

Fluke 725 Multifunction Process Calibrator - User's Manual
Fluke 725 Multifunction Process Calibrator - User's Manual Supplement
Fluke 725 / 726 Multifunction Process Calibrator - Safety Sheet
Fluke 725 / 726 Multifunction Process Calibrator - Calibration Manual
Fluke 725 / 726 Multifunction Process Calibrator - Calibration Manual Supplement
Fluke 725 Multifunction Process Calibrator - Statement of Memory Volatility
Application - A Brief Look at ATEX and its Impact in the US
Fluke 725 Multifunction Process Calibrator - Technical Data
Fluke 718 / 719 / 724 / 725 / 726 Safety Sheet

Specifications

Measurement Accuracy
Voltage DC	30.000 V	0.02% + 2 counts (upper display)
	30.000 V	0.02% + 2 counts (lower display)
	100.00 mV	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.02% + 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
	401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
	1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Frequency	2.0 to 1000.0 CPM	0.05% + 1 count
	1.0 to 1100.0 Hz	0.05% + 1 count
	1.00 to 10.00 kHz	0.05% + 1 count
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.02% + 2 counts
	10.000 V	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (source)	0.02% + 2 counts
Current DC	24.000 mA (simulate)	0.02% + 2 counts
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
	401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
	1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1100.0 Hz	0.05%
	1.00 to 10.00 kHz	0.25%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.8°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
	XK	0.6°C
	BP	1.2°C
Source accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	Accuracy stated for 4-wire measurement.
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.4°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
	XK	0.6°C
	BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to 71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	130 x 236 x 61 mm
Weight	0.65 kg
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessable without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming
