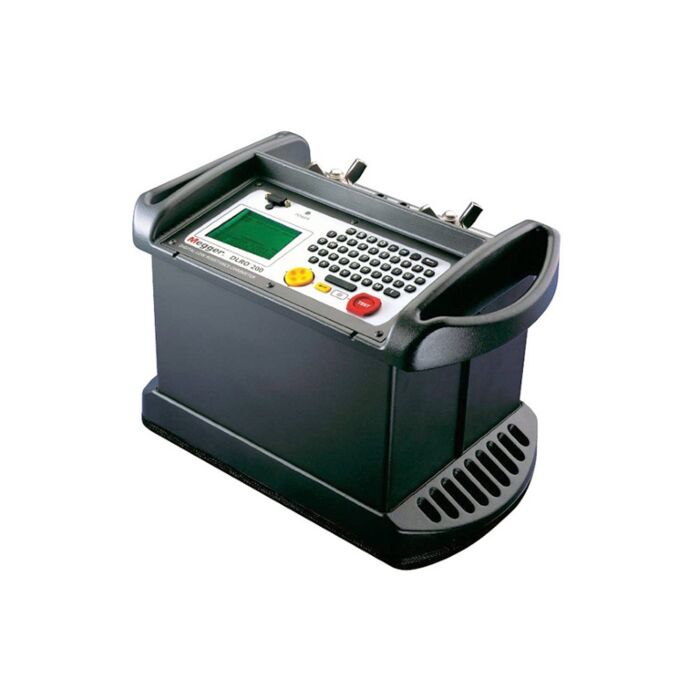

Megger DLRO200-115 Digital Low Resistance Ohmmeter
Digital Low Resistance Ohmmeter

Order #: 45532EL

Mfg #: DLRO200-115

Questions about availability or need help? Contact Us:

(800) 633-0561
$9,910.00

Megger DLRO200-115 Digital Low Resistance Ohmmeter

Digital Low Resistance Ohmmeter

Order #: 45532EL

Mfg #: DLRO200-115

$9,910.00
Be sure to Login to transcat.com for preferred member pricing.
Availability:
In stock
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This item is available as RENTAL at
Call for price
Shop now
This item is available USED at
Call for price
Shop now

Product Highlights

The Megger DLRO200 is a 200 A micro-ohmmeter that measures resistances between 0.1 µΩ and 1 Ω at high currents. This versatile instrument can provide test currents from 10 amps up to 200 amps DC subject to the load resistance and supply voltage. The DLRO200 also uses a four-terminal measurement technique to cancel the resistance of the test leads from the measurement.

The unique design of the DLRO200 allows the weight and size to be kept to a minimum - the instrument weighs less than 15 kg. This small size makes the DLRO200 equally at home in the workshop, on the production floor, or in the field, and its high current capability and compact design make it suitable for testing circuit breaker contacts, switch contacts, busbar joints, and other applications where high current is needed.

A large LCD screen provides all the information needed to perform a test; all test parameters and measurement results are displayed. What's more, 300 sets of results may be stored in the DLRO200's on-board memory for later download to a PC or it can be output directly to a printer via the RS232 port. You may also add notes to any stored result by using the on-board alphanumeric keypad, thereby making later identification of results straightforward. Additionally, this keypad allows you to set the test current directly by typing in the value required. The DLRO200 will then check the continuity of the test circuit and will quickly ramp the test current up to the desired level. The keyboard is also used to set upper and lower limits for the result and to prevent the use of excessive currents by setting an upper limit to the allowable test current.

  • Small and Weighs Less than 33 lbs (14.5kg)
  • Test Currents from 10 A to 200 A d.c.
  • Filtered Direct Current Output Eliminates Magnetic Transients
  • 0.1 µW Best Resolution
  • On Board Memory for Up to 300 Test Results and Notes
  • RS232 Port to Download Stored Results or for Real Time Output to a Printer
  • Supplied Complete with 16 ft. (5m) Test Leads and Download Software
  • Data storage and communication: RS-232 port
  • Max output current (DC): 200 A
  • Power source: Mains
  • Safety features: IEC61010-1

Each Unit Includes

  • 16 ft. (5 m) Lead set comprising 2 x 25 mm2 current leads with clips and 2 potential leads with clips
  • Download Manager
  • User Guide on CD-ROM
  • RS232 download cable
  • Quick Start Guide (English)
