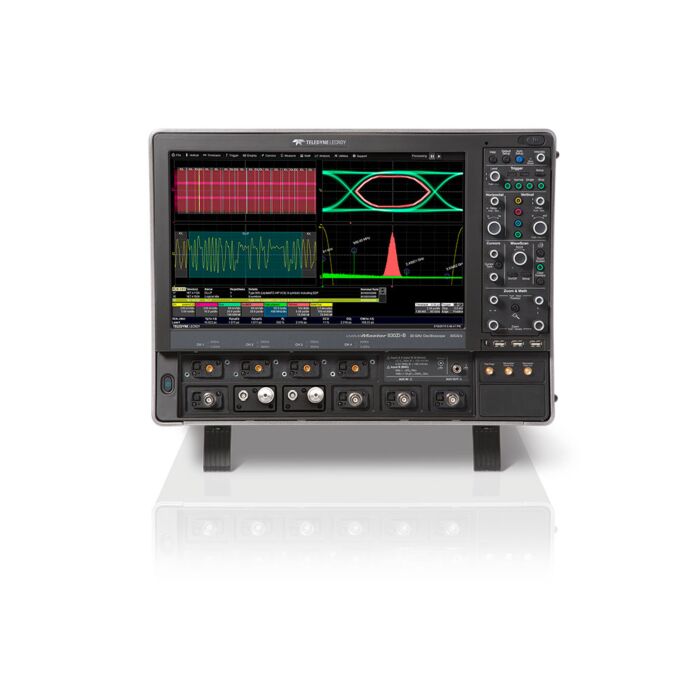

Used Lecroy SDA-820ZI-B Serial Data Analyzer Oscilloscope, 20GHz, 4 Channel
Serial Data Analyzer Oscilloscope,20GHz,4-Channel

Order #: SDA-820ZI-B-USED

Mfg #: SDA-820ZI-B-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$99,999.00

Used Lecroy SDA-820ZI-B Serial Data Analyzer Oscilloscope, 20GHz, 4 Channel

Serial Data Analyzer Oscilloscope,20GHz,4-Channel

Order #: SDA-820ZI-B-USED

Mfg #: SDA-820ZI-B-USED

$99,999.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

20 GHz, 80 GS/s, 128 Mpts/Ch Serial Data Analyzer with 15.3" WXGA Color Display. 50 ohm and 1 Mohm Input, 6.5 Gb/s Serial Trigger, 8b/10b and 64b/66b decode. Also operates in 4ch, 40 GS/s, 64 Mpts/Ch mode.

Key Features

  • Up to 30 GHz bandwidth and 80 GS/s sample rate
  • The most advanced oscilloscope user interface
  • The industry's only true hardware 14.1 Gb/s serial trigger
  • Low Jitter Measurement Floor and exceptional timebase stability
  • Comprehensive set of serial data analysis, debug, validation and compliance tools
  • Integrated 50 Ω and 1 MΩ inputs for true connection and probing flexibility
  • Integrated standard and custom measurements and math functions for unrivaled analysis capability
  • Multi-lane serial data eye, jitter and crosstalk analysis
  • Real-time de-embedding, emulation, and equalization

Exceptional Performance

With up to 30 GHz bandwidth, 80 GS/s sample rate, extremely stable timebase and a 14.1 Gb/s serial trigger the WaveMaster 8 Zi-B has the hardware performance to capture today's high-speed signals.

Revolutionary Usability

The WaveMaster 8Zi-B is a sophisticated instrument, designed for solving complex problems. But the MAUI user interface, along with the WaveMaster 8Zi-B's 15.3" high-resolution touchscreen, makes advanced analysis easy to set up and use. A flat menu structure puts the most common tools in the easiest reach. Sophisticated multi-grid displays are easy to configure. Vertical, horizontal and acquisition setting changes are made without obscuring waveform display.

Made to Solve

MAUI provides the most tightly-integrated toolset of any oscilloscope user interface. Track measured parameters across acquisitions, trend their variations on longer timescales, or visualize and measure their distributions using histograms. Chain multiple measurements and math functions together to easily create custom analysis features for your applications. Integrate third-party programming environments, such as MATLAB, directly into the scope's processing stream for even more customization.

Debug and Validation Made Easy

Connecting a problem with its root cause often requires looking at the signal in multiple domains. The WaveMaster 8Zi-B allows you to combine multiple analysis types into a single, correlated display: analog signals, protocol decodes, eye diagrams, measurement parameters, and other relevant information are presented side-by-side, in real-time.

Configurations Optimized for Serial Data Analysis

The SDA 8 Zi-B models have been specifically configured to handle today's most challenging serial data applications. As well as doubling the standard memory depth, the SDA 8 Zi-B comes as standard with a 6.5 Gb/s true hardware serial pattern trigger, and the SDAIII core toolset, which provides tightly-integrated and comprehensive eye diagram and jitter analysis for NRZ signals.

SDAIII toolset

The Teledyne LeCroy SDAIII-CompleteLinQ Serial Data Analysis products contain multilane eye and jitter analysis, LaneScape™ comparison modes, vertical noise measurements, and crosstalk analysis tools. These capabilities provide the deepest insight into the behavior of multi- or single-lane serial data systems.

Decode From Bit-level to Protocol Layer

Decoders are available for over 20 low-speed and high-speed serial data buses. These fully-integrated analysis tools annotate the acquired analog waveform with the corresponding decoded data, as well as providing a comprehensive, exportable decode table.

For many standards, ProtoSync allows a view from even higher up the protocol stack, linking the physical-layer waveforms to full transaction- and protocol-layer analysis.

Automated Compliance Testing

Teledyne LeCroy's QualiPHY software makes it easy to perform automated compliance tests and produce comprehensive test reports on a wide array of serial standards including:

  • PCI Express (1.0, 2.0, 3.0)
  • USB1, USB2, USB 3.0, USB 3.1
  • DDR2, LPDDR2, DDR3, LPDDR3, DDR4, LPDDR4
  • SAS2, SAS3, SATA
  • MIPI D-PHY, MIPI M-PHY
  • 10/100/100 BASE-T, 10GBASE-T, 10GBASE-KR, SFI
  • HDMI 1.4, HDMI 2.0, DisplayPort 1.2
  • MOST50, MOST150, BroadR-Reach

Each Unit Includes

  • SDA8ZI-M-64
  • SDA8ZI-SDAII-RK-SDAIIICOMPLETELINQ
  • SDA8ZI-UPG-14GBIT-80B-SYMBOL-TD
  • D1605-A-PS 16 GHz Complete Probe System with Solder-In Tip (16 GHz) and Positioner Tip Browser (16 GHz)
Vertical - Analog Channels
Analog Bandwidth (Max) 20 GHz
Analog Bandwidth @ 50 Ω (-3 dB) (ProLink Input) 20 GHz
(≥10 mV/div)
Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) 3.5 GHz
(≥10 mV/div)
Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) 500 MHz (typical, ≥2 mV/div)
Rise Time (10-90%, 50 Ω) 22 ps
(test limit, flatness mode)
Rise Time (20-80%, 50 Ω) 16.5 ps
(flatness mode)
Input Channels 4 (Any combination of ProLink and ProBus inputs)
Vertical Resolution 8 bits; up to 11 bits with enhanced resolution (ERES)
Vertical Noise Floor (50 mV/div) 1.44 mVrms (typical)
Sensitivity 50 Ω (ProLink): 2 mV-1 V/div, fully variable (2-9.9 mV/div via zoom)
50 Ω (ProBus): 2 mV-1 V/div, fully variable; 1 MΩ (ProBus): 2 mV-10 V/div, fully variable
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V
Channel-Channel Isolation DC to 10 GHz: 50 dB (>315:1)
10 to 15 GHz: 46 dB (>200:1)
15 to 20 GHz: 40 dB (>100:1)
(For any two ProLink input channels, same or different v/div settings, typical)
Offset Range 50 Ω (ProLink):
±500 mV @ 2-100 mV/div
±4 V @ >100 mV/div -1 V/div
50 Ω (ProBus):
±750 mV @ 2-100 mV/div
±4 V @ >100 mV/div -1 V/div
1 MΩ:
±1V @ 2-140 mV/div
±10V @ 142mV-1.40V/div
±100V @ 1.42V-10V/div
DC Vertical Offset Accuracy ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit)
Maximum Input Voltage 50 Ω (ProLink): ±2 Vmax@≤100mV/div, 5.5Vrms@>100mV/div
50 Ω (ProBus): ±5 Vmax, 3.5 Vrms
1 MΩ (ProBus): 250 V max. (peak AC: < 10 kHz + DC)
Input Coupling ProLink Inputs - 50 Ω: DC, GND
ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND
Input Impedance ProLink Inputs: 50 Ω+/-2% for ≤100 mV/div, 50 Ω+/-3% for >100 mV/div
ProBus Inputs: 50 Ω+/-2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe
Bandwidth Limiters 40 GS/s mode: 20 MHz, 200 MHz, 1 GHz, 4 GHz, 6 GHz, 8 GHz, 13 GHz, 16 GHz
80 GS/s Mode: 13 GHz, 16 GHz
Rescaling Length: meters, inches, feet, yards, miles; Mass: grams, slugs; Temperature: celsius, fahrenheit, kelvin; Angle: radian, arcdegr, arcmin, arcsec, cycles, revolutions, turns; Velocity: m/s, in/s, ft/s, yd/s, miles/s; Acceleration: m/s2, in/s2, ft/s2, g0; Volume: liters, cubic meters, cubic inches, cubic feet, cubic yards; Force (Weight): newton, grain, ounce, pound; Pressure: pascal, bar, atmosphere (technical), atmosphere (standard), torr, psi; Electrical: volts, amps, watts, volt-amperes, volt-amperes reactive, farad, coulomb, ohm, siemen, volt/meter, coulomb/m2, farad/meter, siemen/meter, power factor; Magnetic: weber, tesla, henry, amp/meter, henry/meter; Energy: joule, Btu, calorie; Rotating Machine: radian/second, frequency, revolution/second, revolution/minute, N?m, lb-ft, lb-in, oz-in, watt, horsepower; Other: %.
Horizontal - Analog Channels
Timebases Internal timebase common to 4 input channels
Time/Division Range At 80 GS/s: Real-Time Mode, 20 ps/div - 640 µs/div, depending on memory length
At 40 GS/s and below: 20 ps/div-128 s/div (Real-Time Mode: 20 ps/div - 64 s/div; RIS mode: 20 ps/div - 10 ns/div, user selectable at ≤10ns/div; Roll mode: 100 ms/div up to 128 s/div, user selectable at ≥100 ms/div and ≤5 MS/s), depending on memory length
Clock Accuracy < 1 ppm + (aging of 0.5ppm/yr from last calibration)
Sample Clock Jitter up to 10µs Acquired Time Range:
100fsrms (Internal Timebase Reference)

up to 6.4ms Acquired Time Range:
150fsrms (Internal Timebase Reference)
Delta Time Measurement Accuracy \sqrt{2}*\sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2) (RMS)+(clock accuracy*reading)(seconds)
Jitter Measurement Floor \sqrt{(\frac{Noise}{SlewRate})^2+(Sample Clock Jitter)^2\; seconds\; rms\; (TIE)}
Jitter Between Channels <250fsrms
(TIE, typical, measured at maximum bandwidth)
Channel-Channel Deskew Range ±9 x time/div. setting or 25 ns max. (whichever is larger), each channel
External Timebase Reference (Input) 10 MHz; 50 Ω impedance, applied at the rear input
External Timebase Reference (Output) 10 MHz; 50 Ω impedance, output at the rear
Acquisition - Analog Channels
Sample Rate (Single-shot) 40 GS/s on 4 Ch
80 GS/s on 2 Ch
Sample Rate (Repetitive) 200 GS/s for repetitive signals (20 ps/div to 10 ns/div)
Memory Length (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
64 M / 128 M / 128 M
(15000 / ? / ?)
Memory Length Options (4 Ch / 2 Ch / 1Ch)
(Number of Segments)
L-128 Option:
128M / 256M / 256M
(15,000)
VL-256 Option:
256M / 512M / 512M
(15,000)
Intersegment Time 1 µs
Averaging Summed averaging to 1 million sweeps; continuous averaging to 1 million sweeps
Enhanced Resolution (ERES) From 8.5 to 11 bits vertical resolution
Envelope (Extrema) Envelope, floor, or roof for up to 1 million sweeps
Interpolation Linear or Sin x/x
Triggering System
Modes Normal, Auto, Single, and Stop
Sources Any input channel, Aux, Aux/10, Line, or Fast Edge. Slope and level unique to each source (except line trigger)
Coupling DC, AC, HFRej, LFRej
Pre-trigger Delay 0-100% of memory size (adjustable in 1% increments of 100 ns)
Post-trigger Delay 0-10,000 divisions in real time mode, limited at slower time/div settings or in roll mode
Hold-off From 2 ns up to 20 s or from 1 to 99,999,999 events
Trigger and Interpolator Jitter <0.1 ps rms (typical, software assisted), 2 ps rms (typical, hardware),
Internal Trigger Level Range ±4.1 div from center
External Trigger Level Range Aux (±0.4 V); Aux/10 (±4 V)
Maximum Trigger Rate 1,000,000 waveforms/second (in Sequence Mode, up to 4 channels)
Trigger Sensitivity with Edge Trigger ProLink Inputs 3 div @ < 15 GHz,
1.5 div @ < 3 GHz,
1.0 div @ < 200 MHz,
(for DC, AC, LFRej coupling, ≥ 10 mV/div, 50 Ω )
Trigger Sensitivity with Edge Trigger ProBus Inputs 2 div @ < 3.5 GHz,
1.5 div @ < 1.75 GHz,
1.0 div @ < 200 MHz,
(for DC coupling, ≥ 10 mV/div, 50 Ω )
Trigger Sensitivity with Edge Trigger (Aux Input) 2 div @ < 1 GHz,
1.5 div @ < 500 MHz,
1.0 div @ < 200 MHz,
(for DC coupling)
Max. Trigger Frequency, SMART Trigger 2.0 GHz @ ≥ 10 mV/div (minimum triggerable width 200 ps)
Trigger Types
Edge Triggers when signal meets slope (positive, negative, or either) and level condition.
Width Triggers on positive, negative, or both widths with widths selectable as low as 200ps to 20 s, or on intermittent faults.
Glitch Triggers on positive or negative glitches with widths selectable as low as 200ps to 20 s, or on intermittent faults.
Window Triggers when signal exits a window defined by adjustable thresholds
Pattern Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don’t care. The High and Low level can be selected independently. Triggers at start or end of the pattern.
TV-Composite Video Triggers NTSC or PAL with selectable line and field; HDTV (720p, 1080i, 1080p) with selectable frame rate (50 or 60 Hz) and Line; or CUSTOM with selectable Fields (1-8), Lines (up to 2000), Frame Rates (25, 30, 50, or 60 Hz), Interlacing (1:1, 2:1, 4:1, 8:1), or Synch Pulse Slope (Positive or Negative).
Runt Trigger on positive or negative runts defined by two voltage limits and two time limits. Select between 1 ns and 20 ns.
Slew Rate Trigger on edge rates. Select limits for dV, dt, and slope. Select edge limits between 1 ns and 20 ns.
Interval Triggers on intervals selectable between 1 ns and 20 s.
Dropout Triggers if signal drops out for longer than selected time between 1 ns and 20 s.
Measurement Trigger Select from a large number of measurement parameters trigger on a measurement value with qualified limits. Can be used as only trigger or last event in a Cascade Trigger.
Multi-Stage: Qualified (Timeout or State/Edge Qualified) Triggers on any input source only if a defined state or edge occurred on another input source. Holdoff between sources is selectable by time or events.
Triggers with Exclusion Technology Trigger on intermittent faults by specifying the expected behavior and triggering when that condition is not met
Multi-Stage: Qualified First In Sequence acquisition mode, triggers repeatably on event B only if a defined pattern, state, or edge (event A) is satisfied in the first segment of the acquisition. Holdoff between sources is selectable by time or events.
Multi-Stage: Cascade (Sequence) Trigger, Capability Arm on "A" event, then Trigger on "B" event. Or Arm on "A" event, then Qualify on "B" event, and Trigger on "C" event.
Multi-Stage: Cascade (Sequence) Trigger, Types Cascade A then B: Edge, Window, Pattern (Logic) Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage B only.
Cascade A then B then C (Measurement): Edge, Window, Pattern (Logic), Width, Glitch, Interval, Dropout, or Measurement. Measurement can be on Stage C only.
Cascade A then B then C: Edge, Window, Pattern (Logic)
Multi-Stage: Cascade (Sequence) Trigger, Holdoff Holdoff between A and B or B and C is selectable by time or number of events.
Measurement trigger selection as the last stage in a Cascade precludes a holdoff setting between the prior stage and the last stage.
Low Speed Serial Protocol Trigger (Optional)
Supported Protocols I2C, SPI (SPI, SSPI, SIOP), UART-RS232, CAN, LIN, FlexRay, I2S (Audio), MIL-1553
High Speed Serial Protocol Trigger
Data Rates Option WM8Zi-6GBIT-80B-SYMBOL-TD: 600 Mb/s to 6.5 Gb/s, Channel 4 input only
Option WM8Zi-14GBIT-80B-SYMBOL-TD: 600 Mb/s to 14.1 Gb/s, Channel 4 input only
(Note: Channel 3 input will capture signal for triggering when oscilloscope is in 80 GS/s mode)
Pattern Length 80 bits NRZ, eight 8b/10b symbols, 64b/66b symbol
Display System
Size Color 15.3" flat panel TFT-Active Matrix LCD with high resolution touch screen
Resolution WXGA; 1280 x 768 pixels.
Number of traces Display a maximum of 16 traces (up to 40 with some software options). Simultaneously display channel, zoom, memory and math traces.
Grid Styles Auto, Single, Dual, Quad, Octal, X-Y, Single+X-Y, Dual+X-Y
Waveform Representation Sample dots joined, or sample dots only
Integrated Second Display
Size Supports touch screen integration of user-supplied second display with split-grid capability.
(Note: touch screen driver for second display may not be a Fujitsu driver)
Resolution Determined by display chosen by user
LeCroy WaveStream™ Fast Viewing Mode
Operation Front panel toggle between WaveStream ON (Analog), ON (Color) and OFF
Intensity 256 Intensity Levels, 1-100% adjustable via front panel control
Types Select analog or color-graded
Number of Channels up to 4 simultaneously
Max Sampling Rate 80 GS/s
Persistence Aging Select from 500 ms to Infinity
Waveforms/second (continuous) up to 2500 Waveforms/second
Persistence Display
Analog and Color-Graded Persistence Variable saturation levels; stores each trace’s persistence data in memory
Persistence Types Select analog, color, or three-dimensional
Trace Selection Activate persistence on all or any combination of traces
Persistence Aging Select from 500 ms to infinity
Sweep Display Modes All accumulated, or all accumulated with last trace highlighted
High Speed Digitizer Output (Option)
Type LeCroy LSIB
Transfer Rate up to 325 MB/s (typical)
Output Protocol PCI Express, Gen 1 (4 lanes utilized for data transfer)
Control Protocol TCP/IP
Command Set Via Windows Automation, or via LeCroy Remote Command Set
Zoom Expansion Traces
Zoom Expansion Traces Display up to 12 Zoom and 12 Math/Zoom traces
Internal Waveform Memory
Internal Waveform Memory 12 active waveform memory traces (M1-M12) store 16 bit/point full length waveforms. Waveforms can be stored to any number of files limited only by the data storage media capacity.
Setup Storage
Front Panel and Instrument Status Store to the internal hard drive, over the network, or to a USB-connected peripheral device.
Automatic Setup
Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Find Vertical Scale Automatically sets the vertical sensitivity and offset for the selected channel to display a waveform with the maximum dynamic range
Calibration
Auto Calibration Ensures specified DC and timing accuracy is maintained for 1 year minimum.
Processor/CPU
Type Intel® CoreTM i7-4770S Quad, 3.1 GHz (up to 3.9 GHz in Turbo mode) (or better)
Processor Memory 16 GB standard for STD memory (64 Mpt) memory option
32 GB standard for L-128 and VL-256 memory options
Operating System Microsoft Windows® 10
Oscilloscope Operating Software Teledyne LeCroy MAUI™ with OneTouch
Real Time Clock Date and time displayed with waveform in hardcopy files. SNTP support to synchronize to precision internal clocks.
Connectivity
Ethernet Port Supports 10/100/1000BaseT Ethernet interface (RJ45 port)
USB Host Ports 4 rear USB 3.0 ports, 3 front panel USB 2.0 ports support Windows compatible devices
GPIB Port (optional) Supports IEEE - 488.2
External Monitor Port Full-size DisplayPort connnector
Includes support for extended desktop operation with second monitor.
Remote Control Via Windows Automation, or via LeCroy Remote Command Set
Network Communication Standard VXI-11 or VICP, LXI Class C (v1.2) Compliant
LSIB Port (optional) Supports PCIe Gen1 x4 protocol with LeCroy supplied API
Peripheral Bus Teledyne LeCroy LBUS standard
Auxiliary Input
Signal Types For External Trigger Input
Coupling 50 Ω: DC; 1 MΩ: AC, DC, GND
Max. Input Voltage 50 Ω: 5 Vrms; 1 MΩ: 250 V (Peak AC < 10 kHz + DC)
Auxiliary Output
Signal Types Select from calibrator, control signals or Off
Output Signal 500 Hz-5 MHz square wave or DC level; 0.0 to 500 mV into 50 Ω (0-1 V into 1 MΩ)
Control Signals Trigger enabled, trigger out, pass/fail status, off
Connector Type BNC, located on front
Probes
Probes Qty. (4) ÷10 Passive Probes
Probe System Probus and ProLink. Automatically detects and supports a variety of compatible probes
Scale Factors Automatically or manually selected depending on probe used
Calibration Output Cal Output: 1kHz square wave, 1Vp-p (typical), output to probe hook.
Fast Edge output: 5MHz square wave, 350mVp-p (typical), 50ps rise time, output to SMA connector, AC Coupled.
Power Requirements
Voltage 100-240 VAC ±10% at 45-66 Hz; 100-120 VAC ±10% at 380-420 Hz; Automatic AC Voltage Selection, Installation Category II
Max. Power Consumption 975 W / 975 VA
Certifications
Certifications CE Compliant, UL and cUL listed; conforms to EN 61326, EN 61010-1, EN61010-2-030, UL 61010-1 3rd edition, and CSA C22.2 No. 61010-1-12
Environmental
Temperature (Operating) +5 °C to +40 °C
Temperature (Non-Operating) -20 °C to +60 °C
Humidity (Operating) 5% to 80% relative humidity (non-condensing) up to +31 °C.
Upper limit derates to 50% relative humidity (non-condensing) at +40 °C.
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3048 m) at or below +25 °C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total
Size and Weight
Dimensions (HWD) 14"H x 18.4"W x 16"D (355 x 467 x 406 mm)
Weight 51.5 lbs. (23.4 kg)
Shipping Weight 70.0 lbs. (31.8 kg)
Warranty and Service
Warranty and Service 3-year warranty; calibration recommended annually.
Optional service programs include extended warranty, upgrades, and calibration services.
