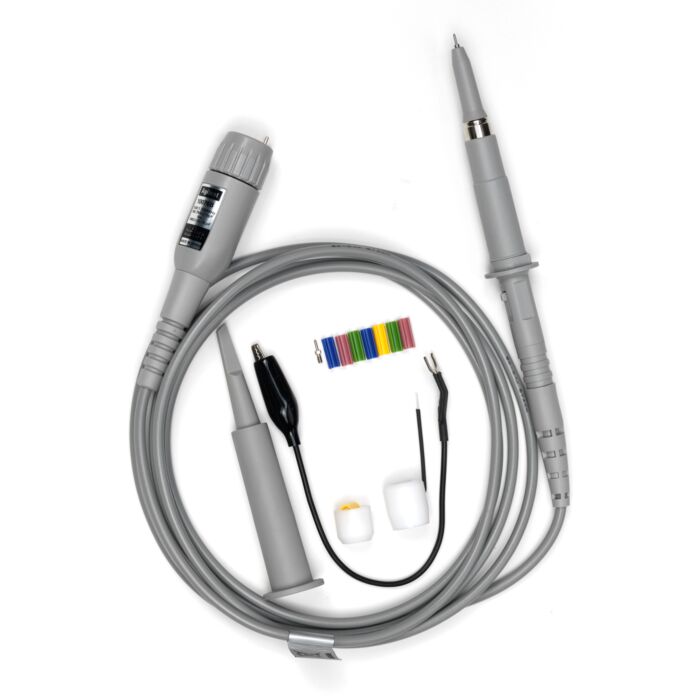

Keysight Technologies 10076C

Product Highlights

• Bandwidth (-3 dB): 500 MHz
• Rise time (calculated): <0.7 ns
• Attenuation ratio: 100:1
• Input resistance: 66.7 M Ω (when terminated into 1 M Ω) / Input capacitance: 3 pF (approximate)
• Compensation range: 7-20 pF
• Maximum input: 4000 Vpk
• Length: 1.8 m
• Probe ID: Yes

The Keysight 10076C 4 kV, 100:1 passive probe gives you the voltage and bandwidth you need for making high-voltage measurements. Its compact design makes it easier to probe today's small power electronics components, and its rugged construction means it can withstand rough handling without breaking. Compatible with 2000 X-, 3000 X-, 4000 X-, 6000 X-, 5000, 6000, 7000, 8000, 9000 and S-Series oscilloscopes.
