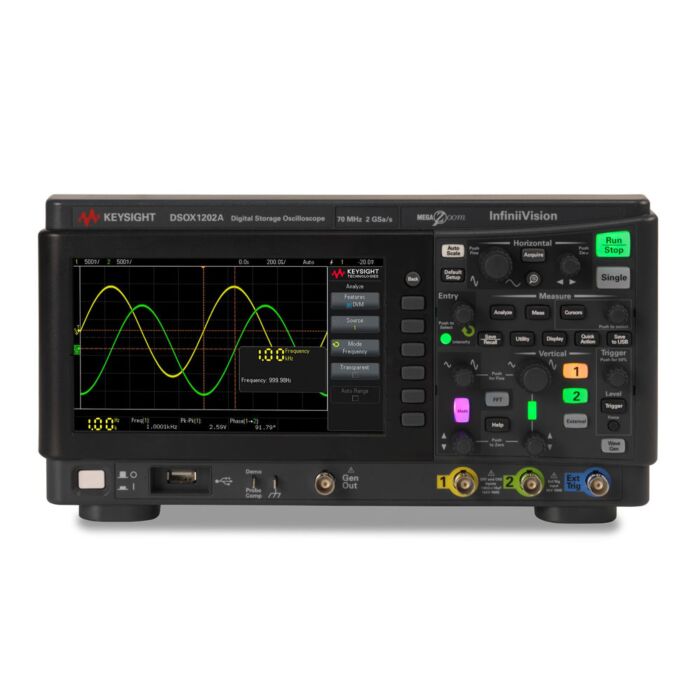

Keysight Technologies DSOX1202A

InfiniiVision1000X Oscilloscope - Choose bandwidth option

Order #: DSOX1202A

Mfg #: DSOX1202A

Questions about availability or need help? Contact Us:

(800) 633-0561
$774.00

Keysight Technologies DSOX1202A

InfiniiVision1000X Oscilloscope - Choose bandwidth option

Order #: DSOX1202A

Mfg #: DSOX1202A

$774.00
Availability: Item ships in about Call for availability
Available Promotions

Choose Your Options:

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Keysight's InfiniiVision 1000 X-Series oscilloscopes are engineered to give you quality, industry-proven technology at unbelievably low prices. Now it's easy to get professional measurements and accessible expertise at your fingertips. Don't settle for less - and test to impress.

  • 70/100/200 MHz (100 and 200 MHz require additional option)
  • 2 GSa/s sample rate
  • 2 M points of memory
  • Make professional measurements, including, mask testing, math, FFT, and serial protocol analysis, all standard
  • Quickly learn how to use with built-in help and training signals
  • See more signal detail at 200,000 waveforms/sec update rate
  • Replaces DSOX1102A.
  • New Keysight color scheme (dark gray)
  • Serial protocol analysis - standard
  • LAN interface standard
    • D1202BW1A (Upgrade from 70 to 100 MHz)
    • D1202BW2A (Upgrade from 70 to 200 MHz)
    • D1202BW3A (Upgrade from 100 to 200 MHz)
  • Have confidence in your measurements with Keysight-custom technology that leverages more than 60 years of oscilloscope expertise
  • Test quickly and easily with a simple, intuitive user-interface and built-in help and training signals
  • Get professional-level functionality with industry-leading software analysis including standard serial bus analysis for the most popular serial bus standards, and 6-in-1 instrument integration

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

  1. Keysight Technologies D1202BW1A Bandwidth Upgrade, 70 to 100MHz for DSOX1202X, Post Purchase
    Keysight Technologies D1202BW1A
    Bandwidth Upgrade, 70 to 100MHz for InfiniiVision DSOX1202X

    Order #: D1202BW1A

    Mfg #: D1202BW1A

    Availability: Item ships in about Call for availability
    $250.00
  2. Keysight Technologies D1202BW2A Bandwidth Upgrade, 70 to 200MHz for DSOX1202X, Post Purchase
    Keysight Technologies D1202BW2A
    Bandwidth Upgrade, 70 to 200MHz for InfiniiVision DSOX1202X

    Order #: D1202BW2A

    Mfg #: D1202BW2A

    Availability: Item ships in about Call for availability
    $500.00
  3. Keysight Technologies D1202BW3A Bandwidth Upgrade, 100 - 200MHz for DSOX1202X, Post Purchase
    Keysight Technologies D1202BW3A
    Bandwidth Upgrade, 100 - 200MHz for InfiniiVision DSOX1202X

    Order #: D1202BW3A

    Mfg #: D1202BW3A

    Availability: Item ships in about Call for availability
    $250.00
DSOX1202ADSOX1202G
Bandwidth 70 MHz (base bandwidth)
100 MHz (D1202BW1A)
200 MHz (D1202BW2A)
Analog Channels 2
External Trigger Front panel input
(Displayable as a 3rd digital channel)
Sample Rate Per Channel (max) 2 GSa/s (one- or two-channel operation)
1 GSa/s (if external trigger view is turned on)
Memory Depth per Channel (max) 2 M points (one- or two-channel operation)
1 M points (if external trigger view is turned on)
WaveGen Not available 20 MHz function generator
Bode Plot Not available Standard
Waveform Update Rate 200,000 waveforms per second
Serial Protocol Analysis Standard : I2C, SPI, UART/RS-232, CAN, LIN
Segmented Memory Standard
Mask/Limit Testing Standard
Built-in training signals Standard
Integrated digital voltmeter Standard
Frequency counter Standard
Waveform math Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter
Automatic measurements 14 amplitude, 14 timing, and 4 pulse count measurements
Display 7-inch TFT LCD WVGA
Connectivity USB 2.0 (host and device), LAN
