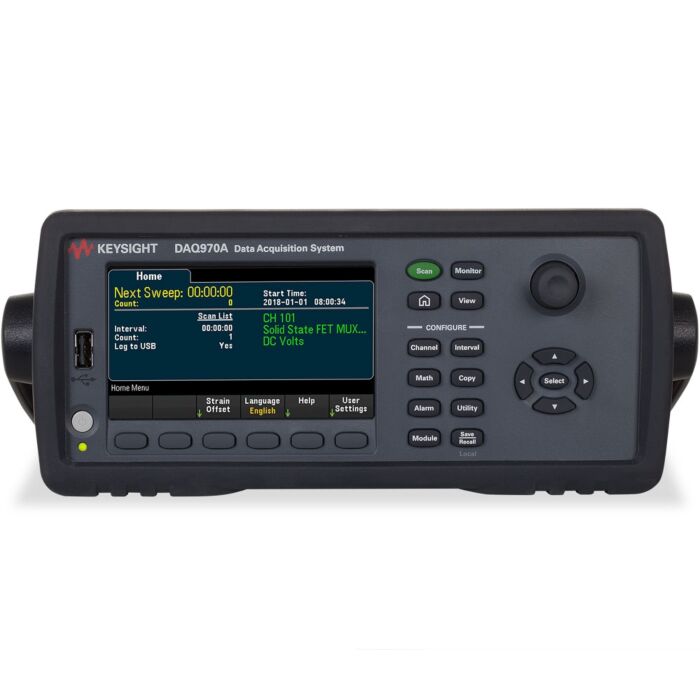

Keysight Technologies DAQ970A

Data Acquisition System

Order #: DAQ970A

Mfg #: DAQ970A

Questions about availability or need help? Contact Us:

(800) 828-1470
$2,047.00

Keysight Technologies DAQ970A

Data Acquisition System

Order #: DAQ970A

Mfg #: DAQ970A

$2,047.00
Availability: Item ships in about Ships in 4-6 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Get the next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 8 plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented, self-guiding menus, or a web browser.

  • Advanced 6_ digit internal DMM with improved accuracy and faster measurement speed
  • Ability to measure very low current ranges (1µA DC and 100µA AC) and higher resistance range (1000 MΩ)
  • New auto-calibration that compensates for internal drifts caused by time and temperature changes
  • 3497XA compatible, program and configuration
  • PLUS
    • All modules have been updated to have improved switching speeds and accuracies
    • NEW DAQM900A solid state multiplexer with scan rate speed of up to 450 channels/sec
    • Keysight's BenchVue DAQ Control and Analysis app is available for use with the DAQ970A. BenchVue gives you an intuitive interface for test configuration and real-time data display and analysis. Setup and make measurements quickly, export data or log and view real-time measurements with a variety of display types to interpret your data faster. BenchVue Software also supports many other Keysight instruments giving you a single interface for Keysight's most popular instruments. Learn more and download a free trial of BenchVue DAQ app software.

      Key Features & Specifications

      • 3-slot mainframe with USB and LAN
      • 6 1/2-digit (22-bit) internal DMM, scanning up to 450 channels per second with new solid-state multiplexer module

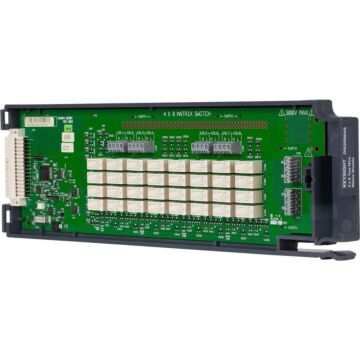

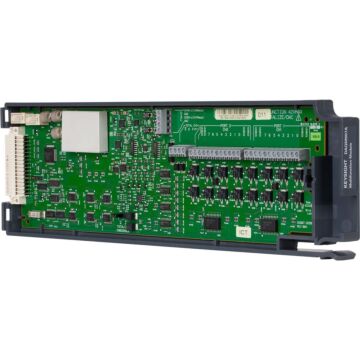

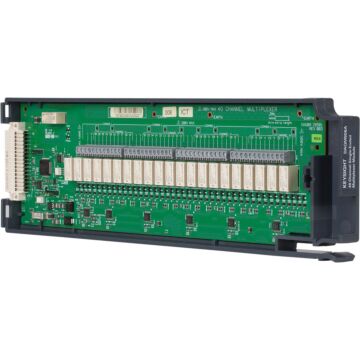

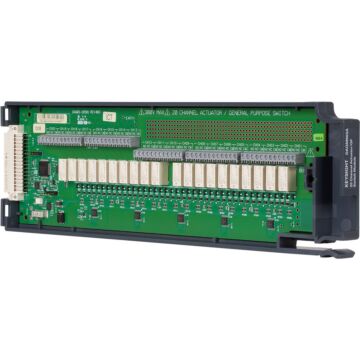

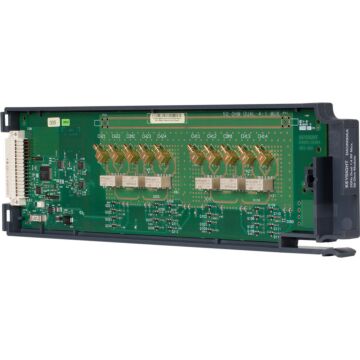

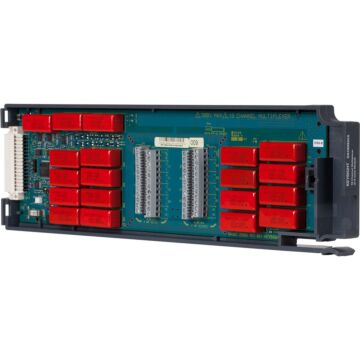

      • 8 switch and control plug-in modules to choose from
      • Built-in signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current; resistance, frequency/period, diode test and capacitance
      • 100k readings of non-volatile memory holds data when power is removed
      • Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
      • BenchVue software enabled: BenchVue DAQ Control and Analysis app enables you to create tests without programming
      • Includes BV0006B Data Acquisition app
