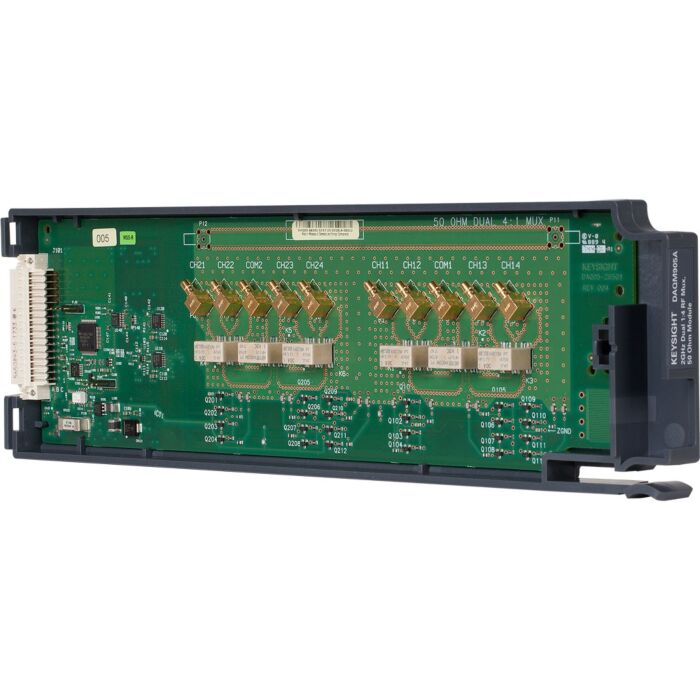

Keysight DAQM905A 2 GHz Dual 1:4 RF Mux, 50 Ohm Module for the DAQ970A
Order #: DAQM905A
Mfg #: DAQM905A
Product Highlights
The Keysight DAQM905A RF multiplexer module for the DAQ970A Data Acquisition System offers broadband switching capabilities for high-frequency and pulsed signals. Use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies-- create a stubless 16:1 multiplexer in a single frame.
- Dual 4 Channel RF Multiplexer
- 2 GHz bandwidth, 50 Ohm
- Cascade together for up to 16:1 multiplexer
Each Unit Includes
- 1 DAQM905A, Dual 4-Channel 50 Ohm RF Multiplexer Module
- 1 Certificate of Calibration
- 10 Cables, 50 Ohm (SMB to BNC)
