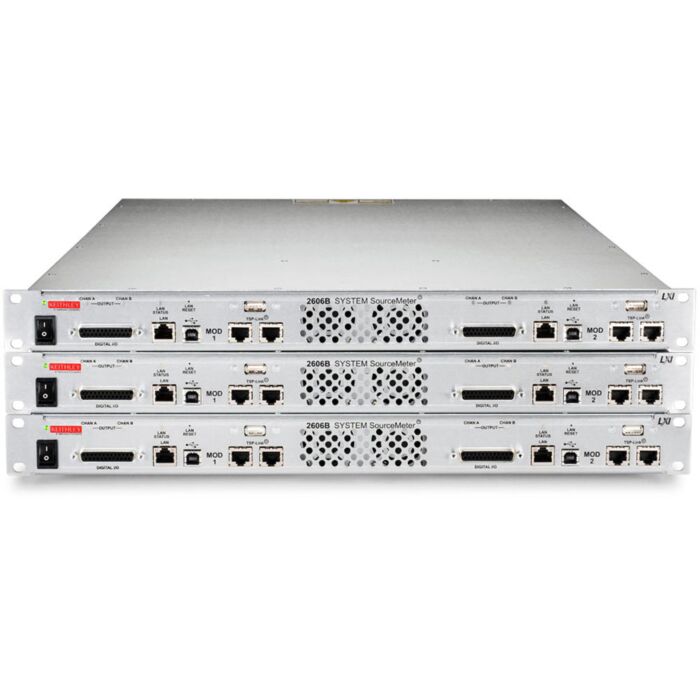

Keithley 2606B High Density System Sourcemeter Four Channel, 20V

Product Highlights

Four-channel system SourceMeter SMU instrument unit. Built from Keithley's third generation SMU technology, the 2606B offers the combined capabilities of a precision power supply, true current source, 6.5-digit DMM, arbitrary waveform generator and pulse generator all into one tightly integrated instrument. The result is a powerful solution that significantly boosts productivity for demanding automated qualification and production testing for optoelectronic devices such as VCSELs/laser diodes used in 3D sensing, telecommunication and LEDs used in consumer products and automobiles, as well as integrated devices like analogue ICs, ASICs and system-on-a-chip (SOC) devices.

• Two-line vacuum fluorescent display (VFD) with keypad and rotary knob
• Front panel save and recall buttons
• 20V at 1A and 6V at 3A power envelopes, 20W and 0.015% DCV basic accuracy
• Up to 28 open drain digital I/O bits
• Correlated results to the 2602B System SourceMeter SMU instrument
• TSP technology embeds complete test programs inside instrument for best system-level throughput
• TSP-link expansion technology for multi-channel parallel test without a mainframe
• Front panel LAN (LXI-C), USB 2.0 TMC488 protocol and digital I/O interfaces
• Built-in web browser based software enables remote control through any browser
• 100VAC to 240VAC, 50Hz or 60Hz (auto sensing), 425VA maximum power supply
