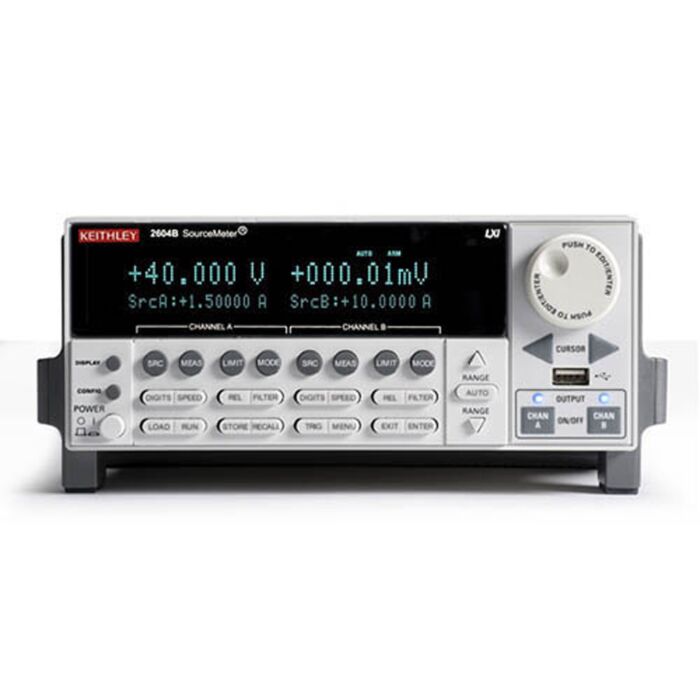

Keithley 2604B

Product Highlights

The 2604B SourceMeter SMU instrument is a new dual channel SMU instrument with best-in-class value and performance. Its tightly integrated four-quadrant design allows it to simultaneously source and measure both voltage and current to boost productivity in R&D and bench-top applications. The Model 2604B is equipped with our high speed TSP technology, which is over 190% faster than traditional PC-to-instrument communication techniques. The Model 2604B is designed for bench-top applications and, therefore, does not have the high-end, system-level automation features of the Model 2602B SourceMeter SMU Instrument that includes digital I/O, TSP-Link technology, and contact check function. The wide range of 3A DC, 10A pulse, 40V output makes the Model 2604B suitable for testing a wide range of higher current devices, materials, components, and sub-assemblies.

• Dual channel model with 80W power output (40W/channel)
• 4 quadrant source/measure with 6.5-digit resolution
• Current Max/Min: 3A DC, 10A pulse/100fA
• Voltage Max/Min: 40V/100nV
• Built-in "Plug & Play" Java-Based I-V characterization and test software
• TSP (Test Script Processing) technology embeds complete test programs inside the instruments
• Software emulation for Keithley's Model 2400 SourceMeter SMU Instrument
• Large, easy-to-read, dual line display
