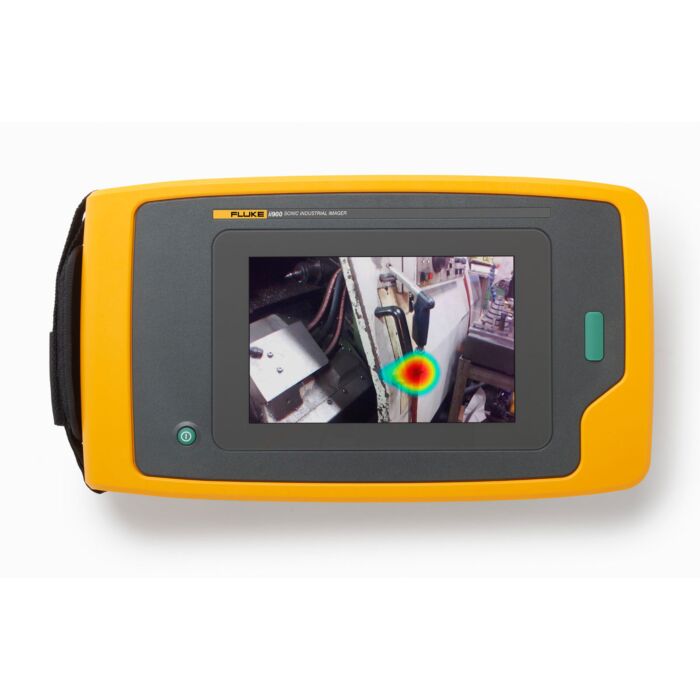

Fluke II900 for Rent, Sonic Industrial Imager for Leak Detection, 7"LCD
Sonic Industrial Imager for Leak Detection,7"LCD

Order #: II900-RENT1

Mfg #: II900-RENT1

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Fluke II900 for Rent, Sonic Industrial Imager for Leak Detection, 7"LCD

Sonic Industrial Imager for Leak Detection,7"LCD

Order #: II900-RENT1

Mfg #: II900-RENT1

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability:
In stock
This item is available USED at
$19,225.00
Shop now
This item has NEW version starting at
$23,349.99
Shop now

Product Highlights

The handheld Fluke ii900 Sonic Industrial Imager is designed for production facilities that rely on compressed air. With minimal training, maintenance teams can now inspect for air and vacuum leaks even during peak production periods. Equipped with a microphone array and the ability to easily isolate the sound frequency to identify leaks, background noise can be filtered, and leaks are easily identified. The 7" LCD touchscreen overlays a SoundMap

  • NEW: Leak volume and cost indication on the go
  • NEW: CO2 emission reporting
  • Improve energy efficiency. Do more with the same air compressors and delay the capital expense of purchasing an additional compressor
  • Lower utility and downtime costs
  • Reduce time and costs to detect leaks
  • Improve production process and pneumatic equipment reliability
Transcat Rentals - Rent Equipment from the Industry Leader
   Try Before You Buy
   Save Time & Money
   Weekly and Monthly Rentals
   Access Our Large Inventory
   Long-term Discounts and Rent-to-Buy Options Available

Shop all Rentals

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Sensors
# of microphones 64 digital MEMS microphones
Frequency band 2 kHz to 52 kHz
Sound pressure sensitivity Detects a 0.005 CFM leak at 100PSI from up to 32.8 feet
(Detects a 2.5 cm3/sec leak at 7 bar from up to 10 meters)
Operation distance range 0.5 to > 50 meters (1.6 to > 164 feet)*
Field of View 63 ° ± 5 °
Minimum Frame Rate 12.5 FPS
*Depending on ambient conditions
Built-in digital camera (visible light)
Field of View (FOV) 63 ° ± 5 °
Focus Fixed lens
Display7" LCD with backlight, under-sunlight readable
Resolution 1280 x 800 (1,024,000 pixels)
Touchscreen Capacitive
Acoustic Image Yes, SoundMap™ image
Image storage
Storage capacity Internal memory with the capacity for 999 picture files or 20 video files
Image format Blended visual and SoundMap™.JPG or .PNG
Video format Blended visual and SoundMap™.MP4
Video length 30 seconds
Digital export USB-C for data transfer
Acoustic Measurements
Measurement range 29.3 dB to 119.6 dB SPL (±2 dB) at 2 kHz
21.9 dB to 112.3 db SPL (±2 dB) at 19 kHz
36.6 db to 126.9 dB SPL (±2 dB) at 52 kHz
Auto max/min dB gain Auto or manual, user selectable
Frequency band selection User selectable through user-made presets or manual entry
Software
Ease of use Intuitive user interface
Trend graphs Frequency and dB scale
Spot markers dB level reading at center point of the image
Battery
Batteries (field-replaceable, rechargeable) Rechargeable Li-ion, Fluke BP291
Battery life 6 hours (product includes spare battery)
Battery charging time 3 hours
Battery charging system External dual-bay charger, EDBC 290
General Specifications
Standard palettes 3: Grayscale, Ironbow, Blue-Red
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F) Without batteries
Relative humidity 10 % to 95 % non-condensing
Size (H x W x L) 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches)
Weight (battery included) 1.7 kg (3.75 pounds)
Main unit rating IP40 protection against particles 1mm or greater and dripping water
Sensor head rating IP51
Warranty 2 year
Self-diagnostic notification Array-health test to identify when microphone array needs attention
Supported languages Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS compliant Yes
Safety
General Safety IEC 61010-1
Electromagnetic Compatibility (EMC) International IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2
CISPR 11: Group 1, Class A
Korea (KCC) Class A Equipment (Industrial Broadcasting & Communication)
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
