Fluke Networks DSX-8000MI/GLD 2GHZ CAT8 Copper CableAnalyzer MM OLTS, Inspection Kit, WiFi

Order # DSX2-8000MI/GLD | Mfg # 4954763

Fluke Networks DSX-8000MI-W/GLD 2GHZ DSX Multimode OLTS & WiFi with 1 Year Gold Support

$26,180.95

Ships in 3-4 weeks

The Fluke Networks DSX-8000MI-W is the CAT 8 / Class I CableAnalyzer with a WiFi adapter and Certifiber Multimode OLTS Modules and 1 year Gold Support. This item should be ordered when you need the Fluke Networks DSX-8000 CableAnalyzer for Copper Certification, Certifiber Pro Multimode OLTS Modules for Tier 1 fiber certification, do not need OTDR or Fiber Inspection modules, and you do not own the Versiv Mainframe. The Fluke Networks Versiv family of cable testers offer modular solutions for every copper and fiber cable testing application. Check out our DSX-8000 product page to view all of your ordering options.

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States only.

Overview

Product Highlights

Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
Unmatched speed for Cat 6A, 8, Class F_A, I/II and all current standards
ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
Taptive user interface simplifies set-up, and eliminates errors
Analyze test results and create professional test reports using LinkWare management software
Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
Intertek Verified to TIA Level 2G - the most stringent accuracy requirement
Endorsed by cabling vendors worldwide
Built in Alien Crosstalk testing capability
Compatible with Linkware Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Management Software.

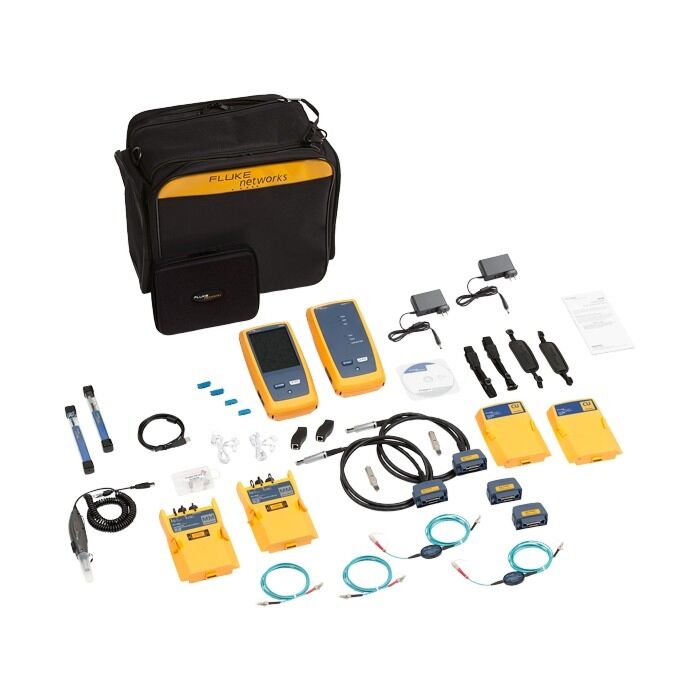

Each Kit Includes

1 Year Gold Support
1 Versiv Mainframe & Remote
(2) DSX-8000 CableAnalyzer Modules
(2) CertiFiber Multimode OLTS Modules
Set of Cat 8/Class I Permanent Link Adapters
Set of Cat 8/Class I Channel Adapters
(2) Headsets
(2) HandStraps
(2) Shoulder Straps
Carrying Case
USB Interface Cable
Versiv Open Source Software CD
(2) Universal Couplers
(2) AxTalk Terminators
USB Video Inspection Probe w/ 4 Tips
(2) Quick Clean Cleaners (1.25/2.50 mm)
(2) LC/LC Simplex Adapters
SC/LC EF-Compliant MM TRC Kit 50 µm
TRC Carry Case
WiFi Adapter
Statement of Calibration and Getting Started Guides

Technical Resources

Fluke Networks DSX CableAnalyzer Series Datasheet

Specifications

Copper Certification
	DSX-8000 CableAnalyzer™	DSX-5000 CableAnalyzer™
Category 6A / Class EA test time	8 seconds	10 seconds
Category 8 / Class I/II test time	15 seconds
HDTDX/HDTDR diagnostic test times	≈ 3 seconds	≈ 3 seconds
Internal memory	≈ 5,000 Cat 8 with plots ≈ 12,000 Cat 6A with plots	≈ 12,000 Cat 6A with plots
Level V Accuracy (1 GHz)	✓	✓
Level VI/2G Accuracy (2 GHz)	✓
Resistance Unbalance measurement	✓	✓
Shield integrity check	✓	✓
TCL measurement	✓	✓
ELTCTL measurement	✓	✓
CDNEXT measurement	✓	✓
CMRL measurement	✓	✓
Built in Alien XTalk module	✓	✓
Channel Adapter	2 GHz Range	1 GHz Range
Permanent Link Adapter	2 GHz Range	1 GHz Range
