Fluke Calibration 9171-A-R-156 Metrology Well Calibrator, -30C with 9171-INSA, Ref 115V
Metrology Well Calibrator, -30C with 9171-INSA, Ref 115V

Order #: 9171-A-R

Mfg #: 2459061

Questions about availability or need help? Contact Us:

(800) 633-0561
$15,409.00

Fluke Calibration 9171-A-R-156 Metrology Well Calibrator, -30C with 9171-INSA, Ref 115V

Metrology Well Calibrator, -30C with 9171-INSA, Ref 115V

Order #: 9171-A-R

Mfg #: 2459061

$15,409.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • Hart Model # 9171-A-R
  • If you need more depth, the Model 9171 provides 203 mm (8 in) of immersion over temperatures from -30 °C all the way to 155 °C with full-range stability of ±0.005 °C.
  • Just like the 9170, this dry-well has exceptional axial and radial uniformity.
  • The display of the 9171 is calibrated to an accuracy of ±0.1 °C over its full range.
  • Display Accuracy: ±0.1°C full range
  • Stability: ±0.005°C full range
  • Radial Uniformity: ±0.01°C full range
  • Hysteresis: ±0.025°C
  • Well Depth: 203 mm (8")
  • Key Pad: Ten key with decimal and +/- button. Function keys, menu key, and °C/°F button.
  • Size (HWD) 366 x 203 x 323 mm (14.4" x 8" x 12.7")
  • Weight: 15 kg (33 lb)

Each Unit Includes

  • Insert
  • Insert Removal Tool
  • Report of Calibration
  • RS-232 Cable
  • 9930 Interface-it Software
  • User Manual

Display accuracy

Dry-wells are typically calibrated by inserting a calibrated PRT into one of the wells and making adjustments to the calibrator’s internal control sensor based on the readings from the PRT. This has limited value because the unique characteristics of the reference PRT, which essentially become “calibrated into" the calibrator, are often quite different from the thermometers tested by the calibrator. This is complicated by the presence of significant thermal gradients in the block and inadequate sensor immersion into blocks that are simply too short.

Metrology Wells are different. Temperature gradients, loading effects, and hysteresis have been minimized to make the calibration of the display much more meaningful. We use only traceable, accredited PRTs to calibrate Metrology Wells and our proprietary electronics consistently demonstrate repeatable accuracy more than ten times better than our specs, which range from ±0.1 °C at the most commonly used temperatures to ±0.25 °C at 661 °C.

An application note is available to help better understand the uncertainties mentioned above. "Understanding the uncertainties associated with the use of Metrology Wells" is available from the Knowledge & Information tab on this page.

For even better accuracy, Metrology Wells may be ordered with built-in electronics for reading external PRTs with ITS-90 characterizations.

Stability

Heat sources from Fluke Calibration have long been known as the most stable heat sources in the world. It only gets better with Metrology Wells. Both low-temperature units (Models Fluke 9170 and Fluke 9171) are stable to ±0.005 °C over their full range. Even the 700 °C unit (Model 9173) achieves stability of ±0.03 °C. Better stability can only be found in fluid baths and primary fixed-point devices. The “off-the-shelf controllers" used by most dry-well manufacturers simply can’t provide this level of performance.

Axial uniformity

The EA-10/13 document suggests that dry-wells should include a zone of maximum temperature homogeneity, which extends for 40 mm (1.54 in), usually at the bottom of a well. Metrology Wells, however, combine our unique electronics with dual-zone control and more well depth than is found in dry-wells to provide homogeneous zones over 60 mm (2.36 in). Vertical gradients in these zones range from ±0.02 °C at 0 °C to ±0.4 °C at 700 °C.

What’s more, Metrology Wells actually have these specifications published for each unit, and we stand by them.

Radial uniformity

Radial uniformity is the difference in temperature between one well and another well. For poorly designed heat sources, or when large-diameter probes are used, these differences can be very large. For Metrology Wells, we define our specification as the largest temperature difference between the vertically homogeneous zones of any two wells that are each 6.4 mm (0.25 in) in diameter or smaller. The cold units (9170 and 9171) provide radial uniformity of ±0.01 °C and the hot units (9172 and 9173) range from ±0.01 °C to ±0.04 °C (at 700 °C).

Loading

Loading is defined as the change in temperature sensed by a reference thermometer inserted into the bottom of a well after the rest of the wells are filled with thermometers, too.

For Metrology Wells, loading effects are minimized for the same reasons that axial gradients are minimized. We use deeper wells than found in dry-wells. And we utilize proprietary dual-zone controls. Loading effects are as minimal as ±0.005 °C in the cold units.

Hysteresis

Thermal hysteresis exists far more in internal control sensors than in good-quality reference PRTs. It is evidenced by the difference in two external measurements of the same set-point temperature when that temperature is approached from two different directions (hotter or colder) and is usually largest at the midpoint of a heat source’s temperature range. It exists because control sensors are typically designed for ruggedness and do not have the “strain free" design characteristics of SPRTs, or even most PRTs. For Metrology Wells, hysteresis effects range from 0.025 °C to 0.07 °C.

Immersion depth

Immersion depth matters. Not only does it help minimize axial gradient and loading effects, it helps address the unique immersion characteristics of each thermometer tested in the heat source. Those characteristics include the location and size of the actual sensor within the probe, the width and thermal mass of the probe, and the lead wires used to connect the sensor to the outside world. Metrology Wells feature well depths of 203 mm (8 in) in the Models Fluke 9171, Fluke 9172, and Fluke 9173. The Model Fluke 9170 is 160 mm (6.3 in) deep to facilitate temperature of –45 °C.

Other great features

A large LCD display, numeric keypad, and on-screen menus make use of Metrology Wells simple and intuitive. The display shows the block temperature, built-in reference thermometer temperature, cutout temperature, stability criteria, and ramp rate. The user interface can be configured to display in English, French, or Chinese.

All four models come with an RS-232 serial interface and the Model 9930, Interface-it software. All are also compatible with Model 9938 MET/TEMP II software for completely automated calibrations of RTDs, thermocouples, and thermistors.

Even without a PC, Metrology Wells have four different preprogrammed calibration tasks that allow up to eight temperature set points with “ramp and soak" times between each. There is an automated “switch test" protocol that zeros in on the “dead-band" for thermal switches. And a dedicated °C/°F button allows for easy switching of temperature units.

Any of six standard inserts may be ordered with each unit, accommodating a variety of metric- and imperial-sized probe diameters. (See inset at right, click to enlarge image. Download the complete data sheet to view details.) And Metrology Wells are small enough and light enough to go anywhere.

Fluke 9171

If you need more depth, the Model Fluke 9171 provides 203 mm (8 in) of immersion over temperatures from –30 °C all the way to 155 °C with full-range stability of ±0.005 °C. Just like the Fluke 9170, this dry-well has exceptional axial and radial uniformity. The display of the Fluke 9171 is calibrated to an accuracy of ±0.1 °C over its full range.

Webinars

Automating and Documenting Temperature Calibration Webinar with Fluke Calibration

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke Calibration 9171-INSD, Aluminum, Comparison Insert, Metric Holes: 3 mm; 4 mm; 6 mm
    Fluke Calibration 9171-INSD, Aluminum, Comparison Insert, Metric Holes: 3 mm; 4 mm; 6 mm
    Insert 9171, Al, Comparison Metric Holes: 3 mm; 4 mm; 6 mm

    Order #: 9171-INSD

    Mfg #: 2459878

    Availability: Ships in 3-4 weeks
    Special Price $512.11 Regular Price $617.00
  2. Fluke Calibration 9171-INSZ Blank Insert for 9171 Metrology Well
    Fluke Calibration 9171-INSZ Blank Insert for 9171 Metrology Well
    Blank Insert for 9171 Metrology Well

    Order #: 9171-INSZ

    Mfg #: 2459910

    Availability: Ships in 3-4 weeks
    Special Price $412.51 Regular Price $497.00
  3. Fluke Calibration 9171-INSA Insert,A w/Miscellaneous Holes (9171)
    Fluke Calibration 9171-INSA Insert A with Miscellaneous Holes (9171)
    Insert,A w/Miscellaneous Holes (9171)

    Order #: 9171-INSA

    Mfg #: 2459840

    Availability: Ships in 3-4 weeks
    Special Price $512.11 Regular Price $617.00

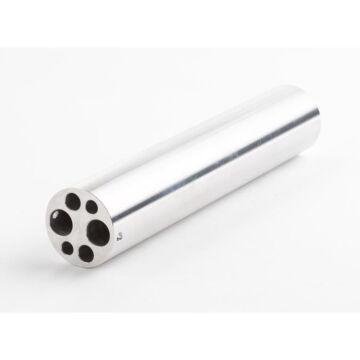

  4. Fluke Calibration 9171-INSB Insert B with Comparison Holes (9171)
