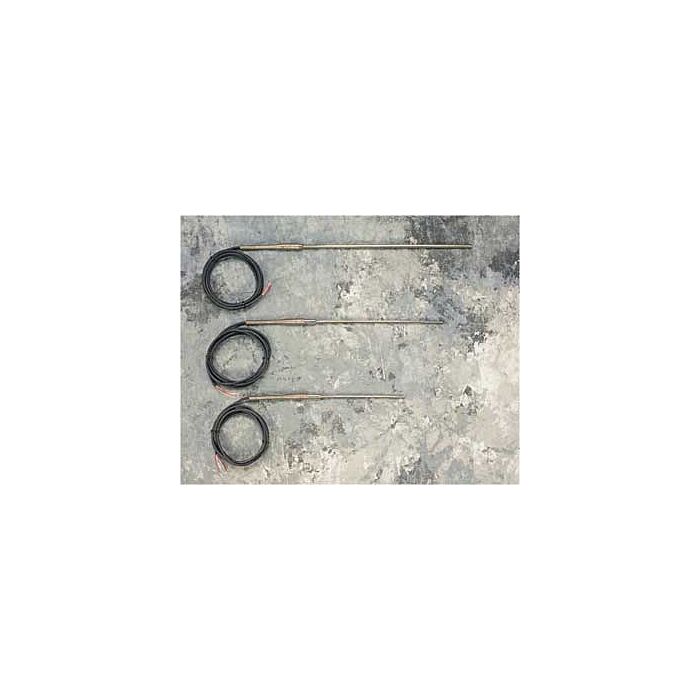

Fluke Calibration 5627A-9-B RTD Industrial Probe, 9" x 3/16"

Product Highlights

• Vibration and shock resistant
• 3/4-inch bend radius for increased durability
• Resistance: Nominal 100 Ω
• Temperature Coefficient: 0.00385Ω/Ω/ °C nominal
• Temperature Range: -200 °C to 420 °C (5627-6 and 5627-9 to 300 °C; transition and cable temperature: 0 °C to 150 °C)
• Drift Rate: ±0.13 °C at 0 °C after 1000 hours at 400 °C
• Sheath Material: 316 Stainless Steel
• Leads: Teflon™-insulated, nickel-plated stranded copper, 22 AWG
• Termination: Bare Wire
• Time Constant: Four seconds maximum for 63.2 %Response to step change in water moving at 3 fps.
• Bending Radius: Sheath may be ordered with a bend on a minimum radius of 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip.
• Immersion: At least 100 mm (4 in) recommended
• Accuracy: (includes calibration uncertainty and short-term stability)
• ±0.050 °C at -196 °C ±0.050 °C at 0 °C ±0.051 °C at 200 °C
• ±0.055 °C at 420 °C
• Size: 9 in L x 3/16 in Dia.

Each Unit Includes

• Accredited Calibration
