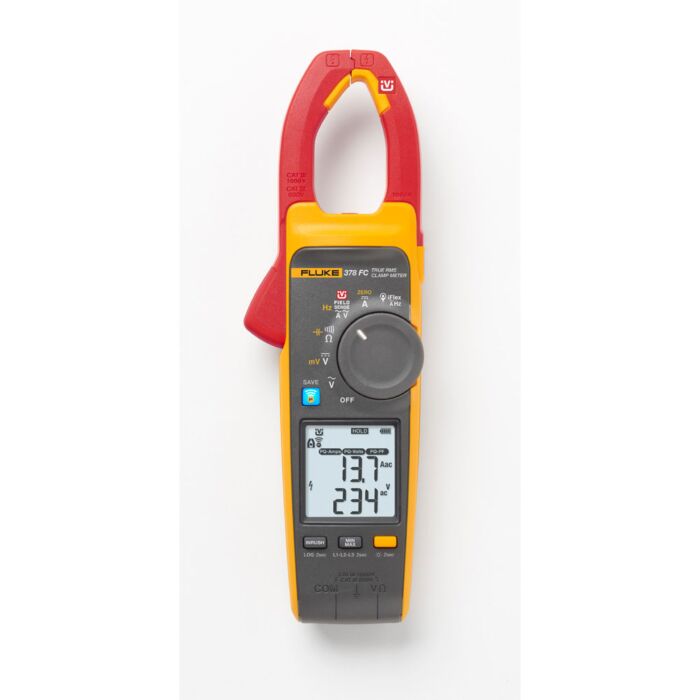

Fluke 378 FC

1000A AC/DC Trms Noncontact Vol Wireless Clamp,Pq Ind,Iflex

Order #: 378-FC

Mfg #: 5111812

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $786.24 Regular Price $849.99

Fluke 378 FC

1000A AC/DC Trms Noncontact Vol Wireless Clamp,Pq Ind,Iflex

Order #: 378-FC

Mfg #: 5111812

Special Price $786.24 Regular Price $849.99
Availability: Ships in 3-4 weeks
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

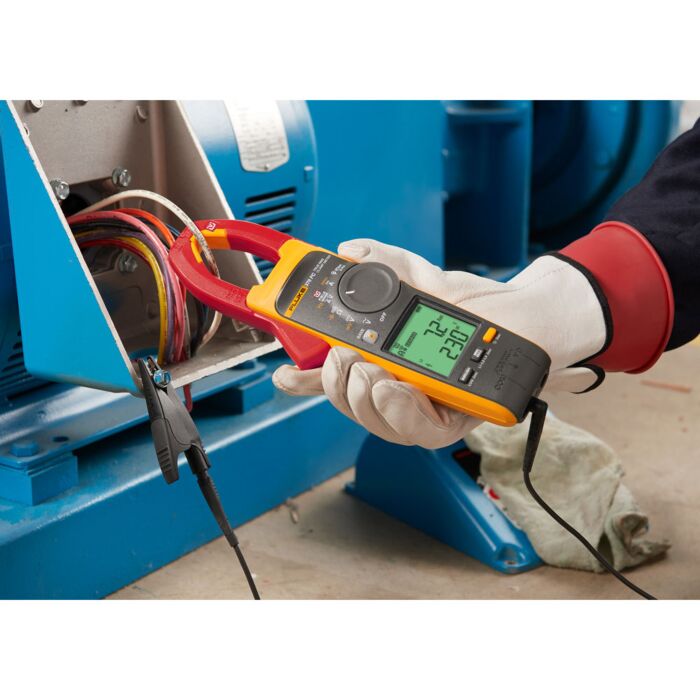

The Fluke 378 FC is a true-rms clamp meter that use FieldSense™ technology to make testing faster and safer, all without touching a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.

  • Measure voltage and current with your clamp jaw
  • Faster, safer testing - all without touching a live wire - using FieldSense™ technology
  • Complete 3-phase voltage and current tests with fewer steps
  • Power quality indicator shows whether equipment or power line is faulty (378 FC)

Key Attributes

  • AC Current: Jaw: 999.9 A, 2% accuracy
  • AC Voltage: Field Sense: 1000 V, 3% accuracy
  • AC Current: Flexible Current Probe: 2500 A, 3% accuracy
  • AC or DC Voltage: Test Leads: 1000 V, 1% accuracy

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

General specifications
General Maximum voltage (between any terminal and earth ground) 1000 V
Battery Type 2 AA IEC LR6 alkaline
Life 200 hours
Display Dual readout
Automatic Power Off 20 minutes
AC Current: Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2 % ± 5 digits (10 Hz to 100 Hz)
2.5 % ± 5 digits (100 Hz to 500 Hz)
Crest Factor (50/60 Hz) 3 @ 500 A
2.5 @ 600 A
1.42 @ 1000 A
Add 2 % for C.F. >2

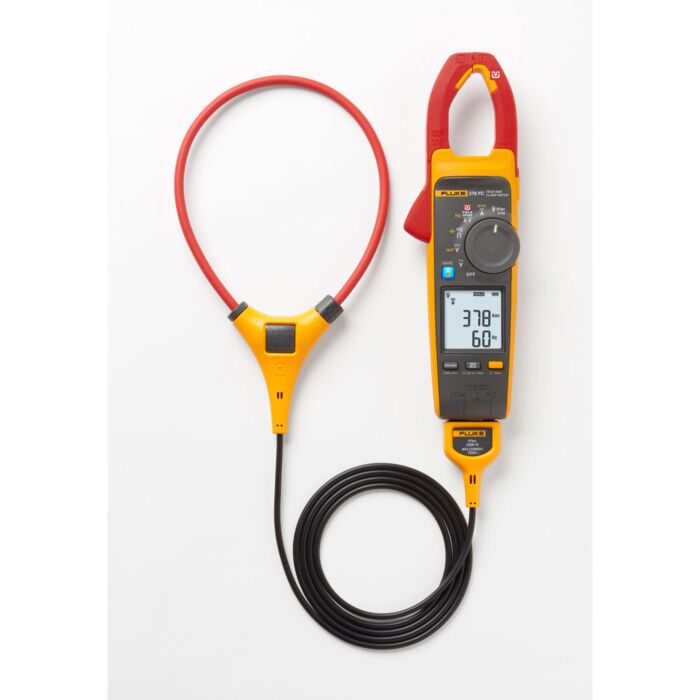

AC Current: Flexible Current Probe
Range 2500 A
Resolution 1 A (≤ 2500 A) 0.1 A (≤ 999.9 A)
Accuracy 3 % ±5 digits (5 Hz to 500 Hz)
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2 % ±5 digits
AC Voltage: FieldSense
Range 1000 V
Resolution 1 V (≤ 1000 V)
Accuracy
≤ 4/0 AWG 3 % ±5 digits (45 Hz to 66 Hz)
≥ 4/0 AWG 5 % ±5 digits (45 Hz to 66 Hz)
AC Voltage: Test Leads
Range 600.0 V 1000 V
Resolution 0.1 V (≤ 600.0 V)
1 V (≤ 1000 V)
Accuracy 1 % ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range 600.0 V
1000 V
Resolution 0.1 V ≤ 600.0 V)
1 V (≤ 1000 V)
Accuracy 1 % ± 5 digits
mV dc
Range 500.0 mV
Resolution 0.1 mV
Accuracy 1 % ± 5 digits
Amps Frequency: Jaw
Range 5.0 Hz to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5 % ± 5 digits
Trigger Level 5 Hz to 10 Hz, ≥ 10 A
10 Hz to 100 Hz, ≥ 5 A
100 Hz to 500 Hz, ≥ 10 A
Amps Frequency: Flexible Current Probe
Range 5.0 Hz to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5 % ±5 digits
Trigger Level 5 Hz to 20 Hz, ≥ 25 A
20 Hz to 100 Hz, ≥ 20 A
100 Hz to 500 Hz, ≥ 25 A
Resistance
Range 60.00 kΩ
6000 Ω
600.0 Ω
Resolution 0.1 Ω (≤ 600.0 Ω)
1 Ω (≤ 6000 Ω)
10 Ω (≤ 60.00 kΩ)
Accuracy 1 % ±5 digits
Capacitance
Range 1000 µF
Resolution 0.1 µF (≤ 100.0 µF)
1 F (≤ 1000 µF)
Accuracy 1% ±4 digits
Mechanical
Size (L x W x H) 274 mm x 86 mm x 47 mm
Weight (with Batteries) 463 g
Jaw Opening 34 mm
Flexible Current Probe Diameter 7.5 mm
Flexible Current Probe Cable Length (head to electronics connector) 1.8 m
Rogowski Coil Length 450 mm
Environmental
Operating Temperature -10 °C to 50 °C
Storage Temperature -40 °C to 60 °C
Operating Humidity (without condensation) Non condensing (<10 °C)
≤ 90 % RH (10 °C to 30 °C)
≤ 75 % RH (30 °C to 40 °C)
≤ 45 % RH (40 °C to 50 °C)
Temperature Coefficients Add 0.1 x specified accuracy for each degree C >28 °C or <18 °C
Ingress Protection IEC 60529: IP30 (jaw closed)
Operating Altitude 2000 m
Storage Altitude 12 000 m
Electromagnetic Compatibility (EMC)
International IEC 61326-1: Portable Electromagnetic Environment
IEC 61326-2-2, CISPR 11: Group 1, Class B
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
Korea (KCC) Class A equipment (Industrial Broadcast & Communications Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General IEC 61010-1: Pollution degree 2
Measurement IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
Current Clamp for Leakage Current Measurements IEC 61557-13: Class 2, ≤ 30 A/m
Wireless Radio
Radio Frequency Certification FCC ID: T68-FBLE IC:6627A-FBLE
Frequency Range 2405 MHz to 2480 MHz
Output Power <100 mW
