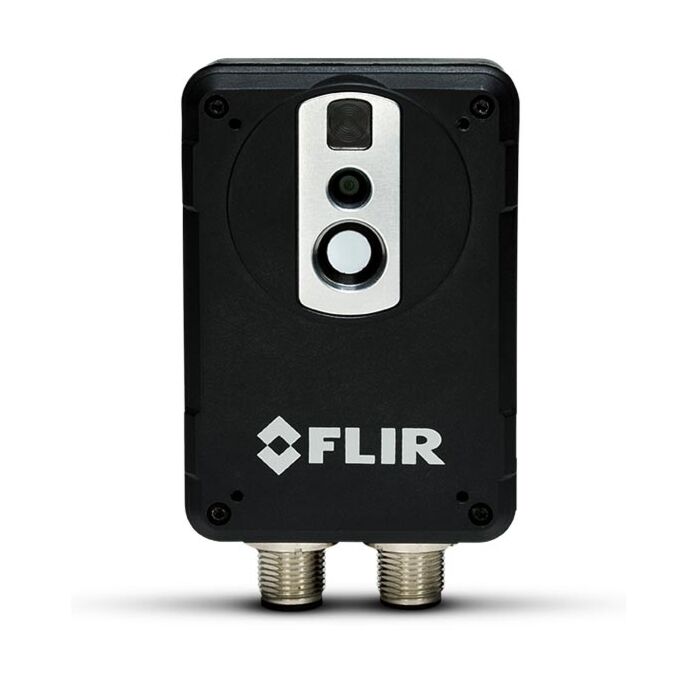

FLIR AX8

Thermal Imager for Continuous Monitoring,640x480

Order #: AX8

Mfg #: 71201-0101

Questions about availability or need help? Contact Us:

(800) 633-0561
$999.00

FLIR AX8

Thermal Imager for Continuous Monitoring,640x480

Order #: AX8

Mfg #: 71201-0101

$999.00
Availability: Item ships in about Ships in 2-3 weeks
Available Promotions
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Produce Highlights

  • Automatic Analysis and Alarms
    • With its streaming video output, the AX8 not only gives you live video of every installation, but it also provides automated alarming when pre-set temperature thresholds are exceeded as well as temperature trend analysis.
  • Industrial Protocol
    • Since FLIR A310 is Ethernet/IP and Modbus TCP compliant analysis and alarm results can easily be shared to a PLC. Digital inputs/outputs are available for alarms and control of external equipment. An image masking function allows you to select only the relevant part of the image for your analysis.
  • Compact & Easy to Install
    • Combining thermal and visual cameras in a small, affordable package, the AX8 measures only 54 x 25 x 95 mm, making it easy to install in space-constrained areas for uninterrupted condition monitoring of critical electrical and mechanical equipment.
  • Multiple Video Options
    • With AX8, you can view its thermal imagery, visible light imagery, or the two combined into FLIR's proprietary, patent pending MSX multispectral dynamic imaging. MSX provides image detail from the visible camera embossed on the thermal image, giving you, sharper edge detail, the ability to read labels and better contextual awareness.

Each Unit Includes

  • Infrared camera with lens
  • Printed documentation
  • User documentation CD-ROM

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

  1. FLIR T199163 AX8 Front Mounting Plate Kit (includes Cooling Bracket)
    FLIR T199163
    AX8 Front Mounting Plate Kit (includes Cooling Bracket)

    Order #: T199163

    Mfg #: T199163

    Availability: Item ships in about Ships in 2-3 weeks
    $105.00
  2. FLIR T198821 AX8 Cooling Bracket
    FLIR T198821
    AX8 Cooling Bracket

    Order #: T198821

    Mfg #: T198821

    Availability: Item ships in about Ships in 2-3 weeks
    $95.00
  3. FLIR AX8 Accessory Starter Kit
    FLIR AX8 ACCESSORY KIT
    AX8 Accessory Starter Kit

    Order #: AX8-ACCESSORY-KIT

    Mfg #: 71200-0002

    Availability: Item ships in about Ships in 2-3 weeks
    $409.00
  4. FLIR T128391ACC AX8 Cable, M12 to Pigtail
    FLIR T128391ACC
    AX8 Cable,M12 to Pigtail

    Order #: T128391ACC

    Mfg #: T128391ACC

    Availability: Item ships in about Ships in 2-3 weeks
    $65.00
  5. FLIR T128775ACC AX8 Rear Mounting Plate Kit
    FLIR T128775ACC
    AX8 Rear Mounting Plate Kit

    Order #: T128775ACC

    Mfg #: T128775ACC

    Availability: Item ships in about Ships in 2-3 weeks
    $40.00
  6. FLIR T199019 AX8 PoE Injector and Cable Kit
    FLIR T199019
    AX8 PoE Injector and Cable Kit

    Order #: T199019

    Mfg #: T199019

    Availability:
    Out of stock
    $138.00
  7. FLIR T128390ACC AX8 Ethernet Cable M12 to RJ45 10m
    FLIR T128390ACC
    AX8 Ethernet Cable M12 to RJ45 10m

    Order #: T128390ACC

    Mfg #: T128390ACC

    Availability: Item ships in about Ships in 2-3 weeks
    $65.00
Imaging & Optical Data
IR Resolution80 × 60 pixels
Thermal Sensitivity/NETD < 0.10°C @ +30°C (+86°F) / 100 mK
Field of View (FOV) 48° × 37°
FocusFixed
Detector Data
Detector TypeFocal Plane Array (FPA), uncooled microbolometer
Spectral Range7.5–13 µm
Visual Camera
Built-in Digital Camera640 × 480
Digital Camera, FOVAdapts to the IR lens
SensitivityMinimum 10 Lux without illuminator
Measurement
Object Temperature Range –10 to 150°C (14 to 302°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading (10 to 100°C @ 10 to 35 amb)
Measurement Analysis
Spotmeter6
Area6 boxes with max./min./average
Automatic Hot/Cold DetectionMax/Min temp. value and position shown within box
Measurement PresetsYes
Atmospheric Transmission CorrectionAutomatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics Transmission CorrectionAutomatic, based on signals from internal sensors
Emissivity CorrectionVariable from 0.01 to 1.0
Reflected Apparent Temperature CorrectionAutomatic, based on input of reflected temperature
External Optics/Windows CorrectionAutomatic, based on input of optics/window transmission and temperature
Measurement CorrectionsGlobal object parameters
Alarm
Alarm FunctionsAutomatic alarms on any selected measurement function. A maximum of 5 alarms can be set
Alarm Output Digital Out, store image, file sending (ftp), email (SMTP), notification
Set-up
Color PalettesColor palettes (BW, BW inv, Iron, Rain)
Set-up CommandsDate/time, Temperature °C/°F
Web InterfaceYes
Storage of Images
Storage MediaBuilt-in memory for image storage
Image Storage ModeIR, visual, MSX
File FormatsJPEG + FFF
Ethernet
EthernetControl, result and image
Type100 Mbps
StandardIEEE 802.3
Connector typeM12 8-pin X-coded
Video StreamingYes
PowerPower over Ethernet, PoE IEEE 802.3af class 0.
Ethernet, protocolsEthernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)
Image Streaming
Image Streaming FormatsMotion JPEG, MPEG, H.264
Image Streaming Resolution 640 × 480
Image ModesThermal, Visual, MSX (IR-image with enhanced detail presentation)
Automatic Image AdjustmentContinuous
Power System
External Power Operation12/24VDC, 2 W continuously/ 3.1 W absolute max
External Power, ConnectorM12 8-pin A-coded (Shared with digital I/O)
Voltage Allowed Range10.8–30VDC
Environmental Data
Operating Temperature0 to 50°C (32 to 122°F)
Storage Temperature-40 to 70°C (-40 to 158°F) IEC 68-2-1 and IEC 68-2-2
Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F)/ 2 cycles
EMCEN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission)
EncapsulationIP67 (IEC 60529)
Bump25 g (IEC 60068-2-29)
Vibration2 g (IEC 60068-2-6)
Physical Data
Camera Size (L × W × H) 54 × 25 × 79 mm (2.1 x 1 x 3.1 in.) w/o connectors
54 × 25 × 95 mm (2.1 x 1 x 3.7 in.) w/ connectors
