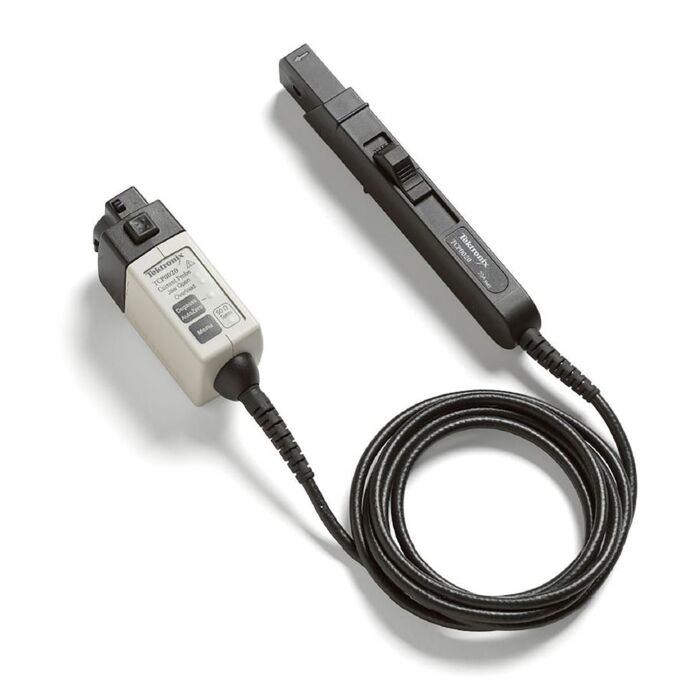

Tektronix TCP0020

AC/DC Current Probe, 20 Amp, 50 MHz, TekVPI interface

Order #: TCP0020

Mfg #: TCP0020

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,450.00

Tektronix TCP0020

AC/DC Current Probe, 20 Amp, 50 MHz, TekVPI interface

Order #: TCP0020

Mfg #: TCP0020

$3,450.00
Availability: Ships in 3-4 weeks
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

TCP0020, TCP2020, TCP202A

The TCP0020, TCP2020, and TCP202A are a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.

These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today's challenging current measurement needs.

Features & Benefits

  • Easy-to-Use and Accurate AC/DC Current Measurements
  • DC to >50 MHz Bandwidth
  • Core Jaw Diameter of 5 mm (0.2 in.)
  • Accurately Measures Current Levels as Low as 10 mA per Division
  • High Accuracy with Typically Less than 1% DC Gain Error
  • Split-core Construction allows Easy Circuit Connection
  • Low Noise and DC Drift
  • Safety Certified
  • TCP0020
    • 20 ARMS Maximum Current Capability
    • 100 A Peak Pulse Current Capability
    • Connects Directly to Oscilloscopes with the TekVPI™ Probe Interface
    • Provides Automatic Units Scaling and Readout on the Oscilloscope Display
    • One-button Degauss and AutoZero Control for Ease of Use
    • Easy Access to Scope-displayed Probe Menu for Probe Setup Control and Operating Status Information
    • Remote Control Capability through TekVPI Oscilloscope
