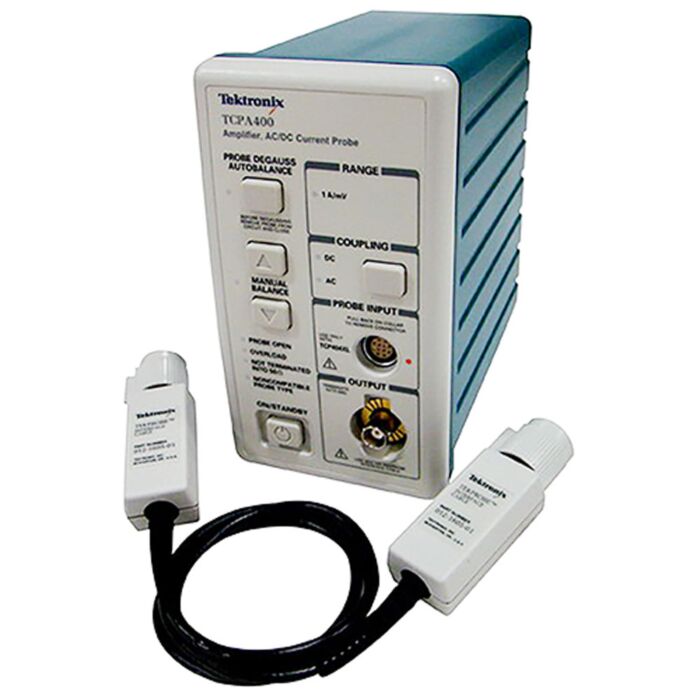

Tektronix TCPA400
50 MHz Current Probe Amplifier (requires Probe)

Order #: TCPA400

Mfg #: TCPA400

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,830.00

Tektronix TCPA400

50 MHz Current Probe Amplifier (requires Probe)

Order #: TCPA400

Mfg #: TCPA400

$3,830.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The TCP300 and TCP400 Series AC/DC current measurement family is a highly advanced current measurement system for today's current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (w/ TCA-BNC), or TekVPI (w/ TPA-BNC) interfaces, current measurements and calculations are simple and easy.

Key performance specifications

AC/DC measurement capabilities

  • DC - 100 MHz, Current Probe Amplifier (TCPA300) uses:
    • DC - 100 MHz, 30 A DC (TCP312A)
    • DC - 50 MHz, 50 A DC (TCP305A)
    • DC - 15 MHz, 150 A DC (TCP303)
  • DC - 50 MHz, Current Probe Amplifier (TCPA400) Uses:
    • DC - 2 MHz, 750 A DC (TCP404XL) (500 A DC Continuous)
  • Key features

    • Automatic scaling and units - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
    • AC/DC input coupling
    • Low insertion impedance reduces device under test loading
    • Split-core construction allows easy circuit connection
    • Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 Ω, noncompatible probe type
    • Low DC drift and noise allows improved low-level current measurements
    • 3rd party safety certification

    Applications

    • Development and analysis solutions for designers, installers, and service personnel in telecom, data comm, computer, and semiconductor power electronics environments for:
      • Power supplies (switching and linear)
      • Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)
      • Power inverters/converters
      • Electronic ballasts
      • Industrial/consumer electronics
      • Mobile communications (phone, satellite, relay stations)
      • Motor drives
      • Transportation systems (electronic vehicles, electric trains, locomotives, avionics)

    Meets today's AC/DC current measurement applications

    The TCPA300 amplifier, when used with TCP312A, TCP305A, or TCP303 probes, provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30 A, 50 A, and 150 A DC continuous. For even higher current levels, the TCPA400 amplifier with the TCP404XL current probe measures 500 A DC continuous and 750 A DC continuous, derated with duty cycle.

    Higher-frequency performance is available with the TCP312A w/TCPA300 providing ≥100 MHz bandwidth and a maximum current of 30 A DC.

    Measurement errors and manual calculations are now a thing of the past

    With this new series of current measurement tools, automatic control and on-screen scaling and units is provided for users of Tektronix TDS3000, TDS500, TDS600, TDS700, TDS5000, TDS6000, and TDS7000B series oscilloscope systems (the DPO3000, MDO/MSO/DPO4000, MSO/DPO5000, and DPO7000 series oscilloscopes, the TPA-BNC adapter is required).

    The TCP300/TCP400 current measurement systems seamlessly integrate with your TDS series oscilloscope.

    Even non-TEKPROBE systems can use the TCPA300/400 series to make proper current measurements by simply multiplying the measured output voltage on the oscilloscope by the TCPA300/400 series range setting.
