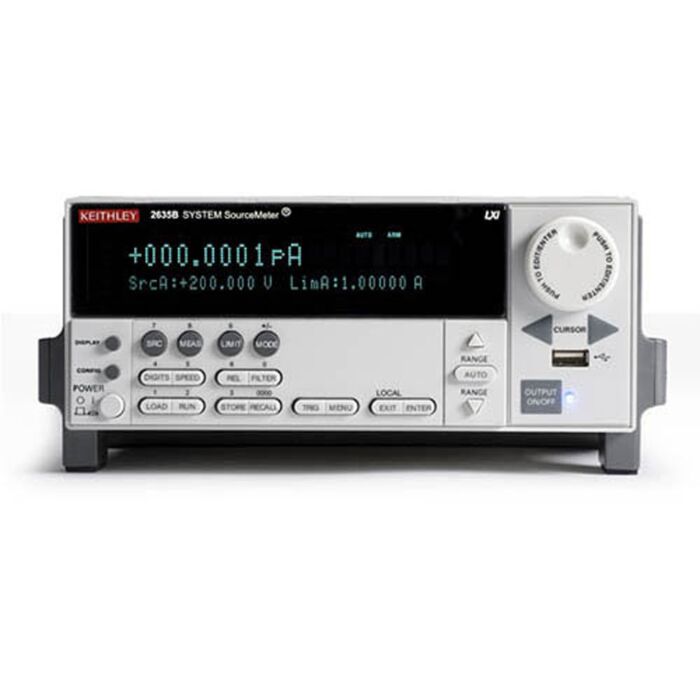

Keithley 2635B
System Sourcemeter Single Channel 200v, low current

Order #: 2635B

Mfg #: 2635B

Questions about availability or need help? Contact Us:

(800) 633-0561
$16,500.00

Keithley 2635B

System Sourcemeter Single Channel 200v, low current

Order #: 2635B

Mfg #: 2635B

$16,500.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The 2635B SourceMeter SMU instrument, is a new and improved one-channel SMU instrument with a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test. The wide range of 1.5A DC, 10A pulse, 200V output and 0.1fA measurement resolution makes it ideal to test a wide range of lower current devices and materials. In addition to retaining all the features of the Model 2635A, the Model 2635B has 6.5-digit resolution, USB 2.0 connectivity, and software command emulation of the Model 2400 SourceMeter SMU Instrument to enable easy migration of legacy test code. The Model 2635B is equipped with Keithley's high speed TSP technology (over 190% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test.

  • Single-channel model with 30W power output
  • 4 quadrant source/measure with 6.5-digit resolution
  • Current Max/Min: 1.5A DC, 10A pulse/0.1fA
  • Voltage Max/Min: 200V/100nV
  • Built-in "Plug & Play" Java-Based I-V characterization and test software
  • TSP (Test Script Processing) technology embeds complete test programs inside the instruments
  • TSP-Link expansion technology for multi-channel parallel test
  • Software emulation for Keithley's Model 2400 SourceMeter SMU Instrument
  • Large, easy-to-read, dual line display
