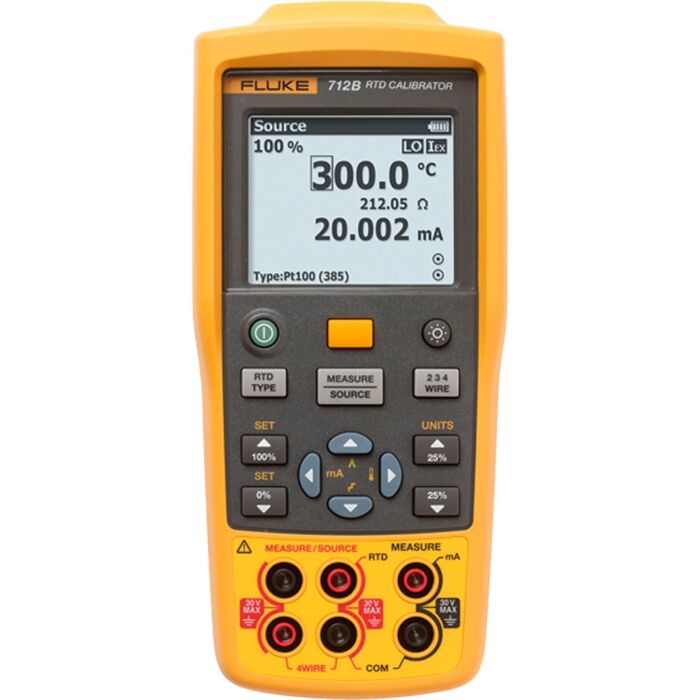

Fluke 712B RTD Calibrator

Order # 712B | Mfg # 4387857

$2,091.99

In stock

Ships Free Over $100

Check Out Transcat's Fluke Temperature Calibrator Selection Guide!

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

For the temperature calibration professional that wants a highly accurate, easy-to-use, single function RTD temperature calibrator the Fluke 712B is the ideal test tool.

Product Highlights

The 712B can measure and simulate (13) different RTD types and resistance
Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
Hanging tool designed in and included with every unit
Configurable 0% and 100% source settings for quick 25% linearity checks
Linear ramp and 25% step auto ramp based on 0% and 100% settings
Dual inputs and backlit display for easy interpretation of measurements
Power down settings remembered at power up for easy restart of tests
1-year and 2-year specifications and traceable certificate of calibration

Each Unit Includes

Magnetic Hanging Tool
Batteries
Manual
Traceable Calibration Certificate
Test Leads

Technical Resources

Fluke 712B RTD Calibrator - User's Manual
Fluke 712B RTD Calibrator - User's Manual Supplement
Fluke 712B RTD Calibrator - Quick Reference Guide
Fluke 712B / 714B Temperature Calibrators - Technical Data
Fluke 712B / 714B Temperature Calibrators - Calibration Manual
Fluke 712B / 714B Temperature Calibrators - Safety Sheet
Fluke 712B / 714B Temperature Calibrators - Safety Sheet Supplement
Fluke 712B / 714B Temperature Calibrators - Statement of Memory Volatility

Specifications

General Specifications
Maximum voltage applied between any terminal and earth ground or between any two terminals	30 V
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Operating altitude	2,000 m
Storage altitude	12,000 m
Relative humidity (% RH operating without condensation)	Non condensing
	90% (10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	(Without condensation)
Vibration requirements	MIL-T-28800E, Class 2
Drop text requirements	1 m
IP Rating	IEC 60529: IP52
Electromagnetic environment	IEC 61326-1, Portable
Safety	IEC 61010-1, Max 30 V to earth, Pollution Degree 2
Power supply	4 AA NEDA 1.5A IEC LR6 batteries
Size (H x W x L)	52.5 x 84 x 188.5 mm
Weight	515 g
DC mA Measurement
Resolution	0-24 mA
Range	0.001 mA
Accuracy (% of reading + counts)	0.010% + 2 μA
Temperature coefficient	± (0.002% of reading + 0.002% of range) /°C ( < 18°C or >28°C)
Ohms Measurement
Ohms range	Accuracy (% of reading +counts)
0.00 Ω to 400.00 Ω	0.015% + 0.05 Ω
400.0 Ω to 4000.0 Ω	0.015% + 0.5 Ω
Read accuracy is based on 4-wire input. For 3-wire ohm measurements, assuming all three leads are matched, add 0.05 Ω (0.00 Ω~400.00 Ω), 0.2 Ω (400.0 Ω~4000.0 Ω) to the specifications.
Temperature coefficient	±(0.002% of reading + 0.002% of range) / °C (< 18°C or > 28°C)
Ohms Source
Ohms range	1.0 Ω to 400.0 Ω
	1.00 Ω to 400.00 Ω
	400.0 Ω to 1500.0 Ω
	1500.0 Ω to 4000.0 Ω
Excitation current from measurement device	0.1 mA to 0.5 mA
	0.5 mA to 3 mA
	0.05 mA to 0.8 mA
	0.05 mA to 0.4 mA
Accuracy (% of reading + counts)	0.015% + 0.1 Ω
	0.015% + 0.05 Ω
	0.015% + 0.5 Ω
	0.015% + 0.5 Ω
Resolution	0.00 Ω to 400.00 Ω		0.01 Ω
	400.0 Ω to 4000.0 Ω		0.1 Ω
Temperature coefficient	± (0.002% of reading + 0.002% of range) /°C ( <18°C or >28°C)
	Supports pulsed transmitters and PLCs with pulse times as short as 5 ms
RTD Input and Output
RTD Type (α)	Range (°C)	Measure (°C)			Source (°C)
		1-year	2-year	Source current	1-year	2-year
10 Ω Pt (385)	-200 to 100°C	1.5°C	3°C	1 mA	1.5°C	3°C
	100 to 800°C	1.8°C	3.6°C	1 mA	1.8°C	3.6°C
50 Ω Pt (385)	-200 to 100°C	0.4°C	0.7°C	1 mA	0.4°C	0.7°C
	100 to 800°C	0.5°C	0.8°C	1 mA	0.5°C	0.8°C
100 Ω Pt (385)	-200 to 100°C	0.2°C	0.4°C	1 mA	0.2°C	0.4°C
	100 to 800°C	0.015%	0.03%	1 mA	0.02%	0.03%
		+0.18°C	+0.36°C		+0.18°C	+0.36°C
200 Ω Pt (385)	-200 to 100°C	0.2°C	0.4°C	500 μA	0.2°C	0.4°C
	100 to 630°C	0.02%	0.03%	500 μA	0.02%	0.03%
		+0.18°C	+0.36°C		+0.18°C	+0.36°C
500 Ω Pt (385)	-200 to 100°C	0.3°C	0.6°C	250 μA	0.3°C	0.6°C
	100 to 630°C	0.02%	0.03%	250 μA	0.02%	0.03%
		+0.28°C	+0.56°C		+0.28°C	+0.56°C
1000 Ω Pt (385)	-200 to 100°C	0.2°C	0.4°C	250 μA	0.2°C	0.4°C
	100 to 630°C	0.02%	0.03%	250 μA	0.02%	0.03%
		+0.18°C	+0.36°C		+0.18°C	+0.36°C
100 Ω Pt (3916)	-200 to 100°C	0.2°C	0.4°C	1 mA	0.2°C	0.4°C
	100 to 630°C	0.02%	0.03%	1 mA	0.02%	0.03%
		+0.18°C	+0.36°C		+0.18°C	+0.36°C
100 Ω Pt (3926)	-200 to 100°C	0.2°C	0.4°C	1 mA	0.2°C	0.4°C
	100 to 630°C	0.02%	0.03%	1 mA	0.02%	0.03%
		+0.18°C	+0.36°C		+0.18°C	+0.36°C
10 Ω Cu (427)	-100 to 260°C	1.5°C	3°C	1 mA	1.5°C	3°C
120 Ω Ni (672)	-80 to 260°C	0.15°C	0.3°C	1 mA	0.15°C	0.3°C
50 Ω Cu (427)	-180 to 200°C	0.4°C	0.7°C	1 mA	0.4°C	0.7°C
100 Ω Cu (427)	-180 to 200°C	0.2°C	0.4°C	1 mA	0.2°C	0.4°C
YSI400	15 to 50°C	0.2°C	0.4°C	250 μA	0.2°C	0.4°C
1. Sensor inaccuracies not included.
2. Resolution: 0.1°C.
3. Read accuracy is based on 4-wire input. For 3-wire RTD measurements, assuming all three RTD leads are matched, add 1.0°C (Pt10 and Cu10), 0.6°C (Pt50 and Cu50), 0.4°C (Other RTD types) to the specifications.
4. Source Accuracy in source mode is based on 0.5 mA~3 mA (1.00 Ω~400.00 Ω), 0.05 mA~0.8 mA (400.0 Ω~1500.0 Ω), 0.05 mA~0.4 mA (1500.0 Ω ~4000.0 Ω), excitation current (0.25 mA for Pt1000 range).
5. Temperature Coefficient: ±0.05°C /°C for measure, ±0.05°C /°C (< 18°C or > 28°C) for source.
6. Supports pulsed transmitters and PLCs with pulse times as short as 5 ms.
