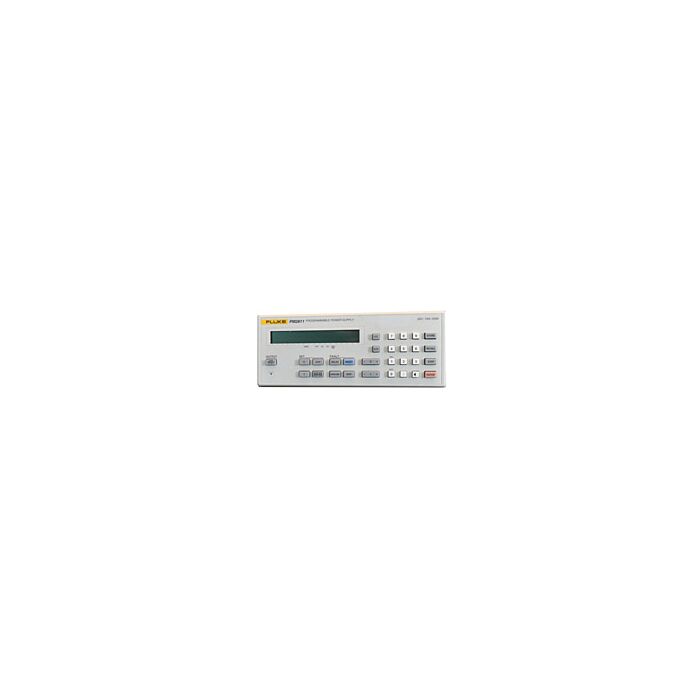

Fluke PM2811 FOR RENT

30V/10A, Programmable Power Supply, Single Output, GPIB

Order #: PM2811-RENT2

Mfg #: PM2811

Questions about availability or need help? Contact Us:

(800) 828-1470
Call for price
Call for price

Fluke PM2811 FOR RENT

30V/10A, Programmable Power Supply, Single Output, GPIB

Order #: PM2811-RENT2

Mfg #: PM2811

Call for price
Call for price


Contact Transcat's Rental Team

Availability:
In stock
Available Promotions
This item is available USED at
$899.00
Shop now
Questions about this product? Speak to an expert

Fluke PM2811 Highlights

  • OUTPUT module 30 V - 10 A - 60 W
  • Output Voltage range 0 to 30 V
  • Output Current range 0 to 10 A
  • Output Power 60 W
  • Overvoltage protection range 2 to 32 V
  • Accuracy (at calibration temperature)
  • Output Voltage +/- 0.04 % of setting + 10 mV
  • Output Current +/- 0.1 % of setting + 50 mA
  • Over Voltage Protection +/- 0.5 % of setting + 150 mV
  • Temperature coefficient
  • Output Voltage (0.016 % of setting + 2 mV)/K
  • Output Current (0.05 % of setting + 2 mA)/K
  • Long term drift (in an 8 hour period)
  • Output Voltage 0.04 % of setting + 5 mV
  • Output Current 0.05 % of setting + 10 mA
  • Programming Resolution (12bit)
  • Output Voltage 7.5 mV/LSB
  • Output Current 2.5 mA/LSB
  • Over Voltage Protection 7.5 mV/LSB
  • Source Effect (for any line voltage change within rating)
  • Voltage +/- (0.01 % of setting + 2 mV)
  • Current +/- (0.02 % of setting + 2 mA)
  • Load Effect (load change 10 % to 90 % or 90 % to 10 % full load)
  • Constant Voltage +/- (0.01 % of setting + 5 mV)
  • Constant Current +/- (0.02 % of setting + 5 mA)
  • Load cross regulation Negligible for both voltage and current
  • Output Noise (PARD)
  • Constant Voltage pp/rms 15 mV/3 mV
  • Constant Current rms 10 mA
  • Switching Frequency approx. 20 kHz approx.
  • READBACK ACCURACY:(referred to the output terminals)
  • Accuracy (at calibration temperature)
  • Voltage +/- (0.05 % + 25 mV)
  • Current +/- (0.1 % + 30 mA)
  • Measuring Resolution (12 bit)
  • Voltage resolution to interface 7.5 mV
  • Current resolution to interface 2.5 mA
  • Voltage resolution to display 10 mV
  • Current resolution to display 10 mA
  • Max. Current at Reverse voltage 10 A
  • REMOTE SENSE > 0.25 Volt drop per lead (at open sense connections, the output voltage will not be more than 3 V above the programmed value)
  • DYNAMIC OPERATION I=1 A between 1 and 10A between 0.5 and 5A between 1 and 10A
  • Settling band +/- 50 mV
  • dI/dt < 1 A/s
  • Overshoot < 150 mV
  • Recovery time < 1 ms
  • Programming response (measured with resistive load)
  • Up (0 V to max. output) 100 ms @ 2 A
  • Up (0 V to max. output) 50 ms @ (no load)
  • Down (max.output to 1 V) 100 ms @ 2 A
  • Down (max.output to 1 V) 50 ms @ (no load)
  • Reprogramming delay
  • Range 50 ms to 60 s
  • Resolution 1 ms
  • Default 50 ms
  • Step Interval time up to 60 s
  • GPIB
