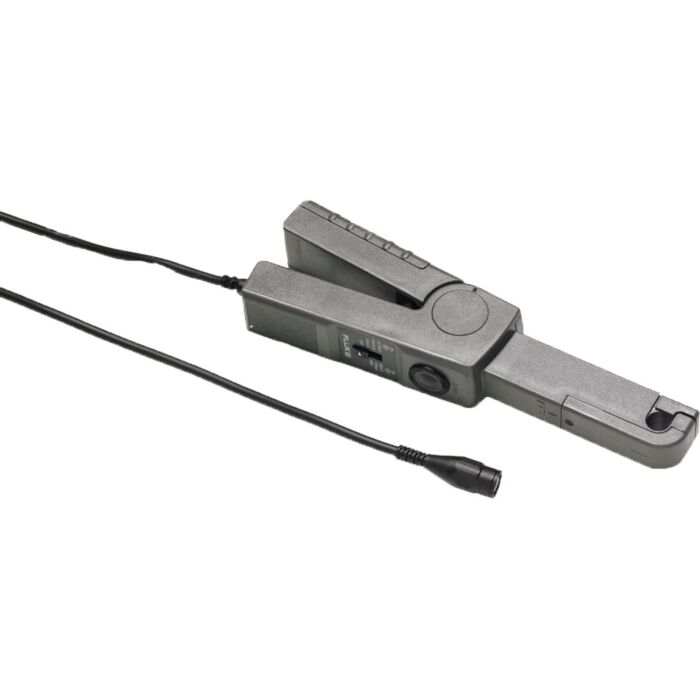

Fluke 80I-110S for Rent AC/DC Current Probe Scopemeter

Fluke 80I-110S for Rent, AC/DC Current Probe for Fluke ScopeMeters

Order # 80I-110S-RENT1

Mfg # 80I-110S-RENT1

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources
  • Specifications

Fluke 80I-110S for Rent, AC/DC Current Probe for Fluke ScopeMeters

Order # 80I-110S-RENT1 | Mfg # 80I-110S-RENT1

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.

  • Current Range: 0.1 to 100A DC or 0.1 to 70A AC
  • Basic Accuracy (DC to 1kHz):
    100mV/A setting: 50mA to 10A +/- 3% of reading + 50mA
    10mV/A setting: 50mA to 40A +/- 4% of reading + 50mA
    40A to 80A +/- 12% of reading + 50mA
    80 to 100A +/- 15% of reading
  • Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
  • Bandwidth: 1Hz to 20kHz
  • Working Voltage: 600V AC rms
  • Maximum Conductor Size: 11.8 mm (.46 inch) diameter
  • Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V

Technical Resources

Fluke 80I-110s Clamp-on AC/DC Current Probe Datasheet
Fluke 80i-110s Instruction Sheet

Specifications

Specifications
Nominal current range 10 A, AC/DC
100 A, AC/DC
Continuous current range 0.1 A - 10 A AC/DC
1 A - 100 A AC/DC
Maximum non-destructive current 140 A - 2 kHz
Lowest measurable current 0.1 A
Basic accuracy 100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA
10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA
40 A to 80 A ±12% of reading +50 mA
80 to 100 A ±15% of reading
Useable frequency DC - 100 kHz
Output level(s) 10 A range: 100 mV/A
100 A range: 10 mV/A
Zero error adjustment Yes
Safety Specifications
Safety CAT II, 600 V
CAT III, 300 V
Maximum voltage 600 V
Mechanical and General Specifications
Battery life 9 V, 55 h
Maximum conductor diameter 11.8 mm
Output cable length 1.6 m
BNC adapter Yes
