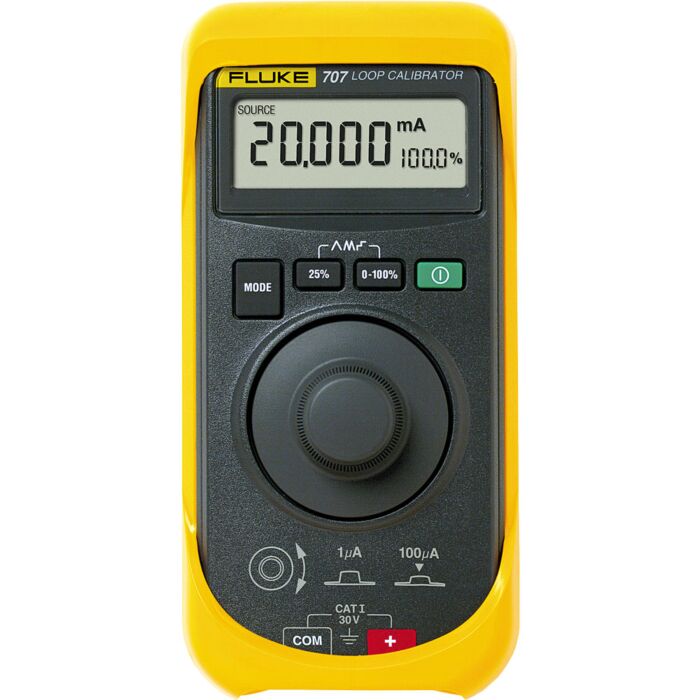

Fluke 707 mA Loop Calibrator, DC up to 28V

Order # 707E | Mfg # 1617262

$1,302.99

In stock

Ships Free Over $100

Check out Transcat's Fluke Loop Calibrator Selection Guide!

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

SAVE OVER $110! FREE Tools include:

Leatherman SIDEKICK Multi-Tool
Soft Carrying Case

View the Fluke 707 with FREE TOOLS!

Overview

The Fluke 707 loop calibrator is a high performance solution for calibration, repair and maintenance of current loops. The new "Quick Click" knob making it extremely fast and easy to use.

Product Highlights

Fluke Model # 707
Large display and simple, quick-click interface for easy one-handed operation.
Simultaneous mA and % readout for quick, easy, interpretation of readings.
mA accuracy of 0.015%, superior to other loop calibrators in this price range.
1µA resolution for mA source, simulate and measure.
Push button 25% steps for fast, easy linearity checks.
0-100% “span check” for fast confirmation of zero and span.
Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests.
24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
Measures V dc to 28 V.
Single 9 V battery that is easily changed.
0-20 mA or 4-20 mA default start up modes.
Innovative output adjustment dial with 1 µA and 100 µA resolution.
HART mode connects 250W resistor in series with 24 V loop for compatibility with HART communicators.

Each Unit Includes

Test Leads TL75
Alligator Test Clips AC70
Holster C10
Instruction Sheet

Technical Resources

Fluke 707 mA Loop Calibrator - Calibration Information
Fluke 707 mA Loop Calibrator - Calibration Information Supplement
Fluke 707 mA Loop Calibrator - Instruction Sheet
Fluke 707 mA Loop Calibrator - Instruction Sheet Supplement
Fluke 705 / 707 mA Loop Calibrator - Safety Information
Fluke 705 / 707 mA Loop Calibrator - Safety Information Supplement
Fluke 705 / 707 / 715 mA Loop Calibrator - Technical Data

Specifications

Specifications
Current measurement	Range	0 to 24 mA
	Resolution	0.001 mA
	Accuracy	0.015% Rdg + 2 LSD
Current sourcing	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.015% Rdg + 2 LSD
	Drive capability	1200 Ω 950 Ω at 20 mA in HART mode
Current simulation	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.015% Rdg + 2 LSD
	Ext. loop voltage requirement	12-30 V
Loop power	While measuring mA, 24 V
Voltage measurement	Range	0 to 28 V DC
	Resolution	1 mV
	Accuracy	0.015% Rdg + 2 LSD
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-30°C to 60°C
Humidity (without condensation)	0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
Temperature coefficient	-10°C to 18°C, 28°C to 55°C, ±.005% of range per °C
Safety Specifications
Safety	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage	30 V
Mechanical and General Specifications
Size	152 x 70 x 41 mm
Weight	224 g (340 g including holster)
Batteries	One 9 V battery Alkaline
Warranty	Three years
Shock and vibration	Per MIL-T-28800 for a Class 2 Instrument
Display current and % of span	Yes
Auto step, auto ramp	Yes
Span check	Yes
