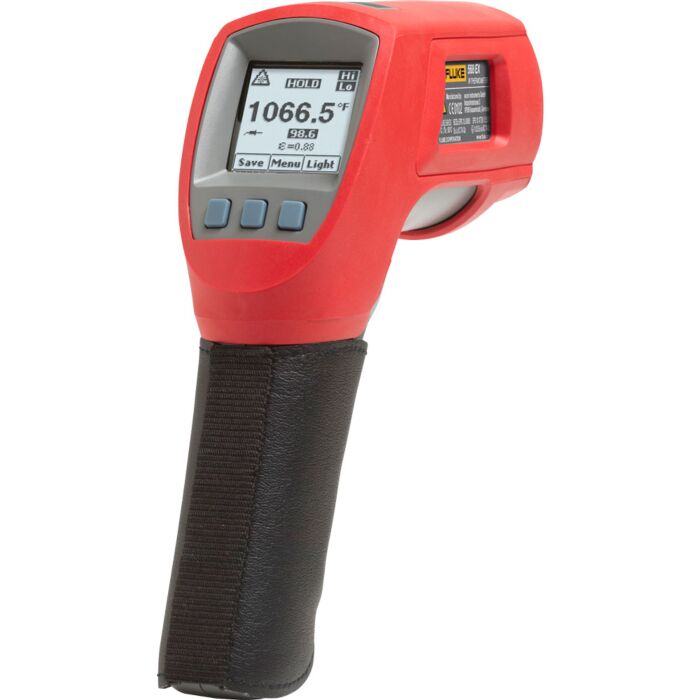

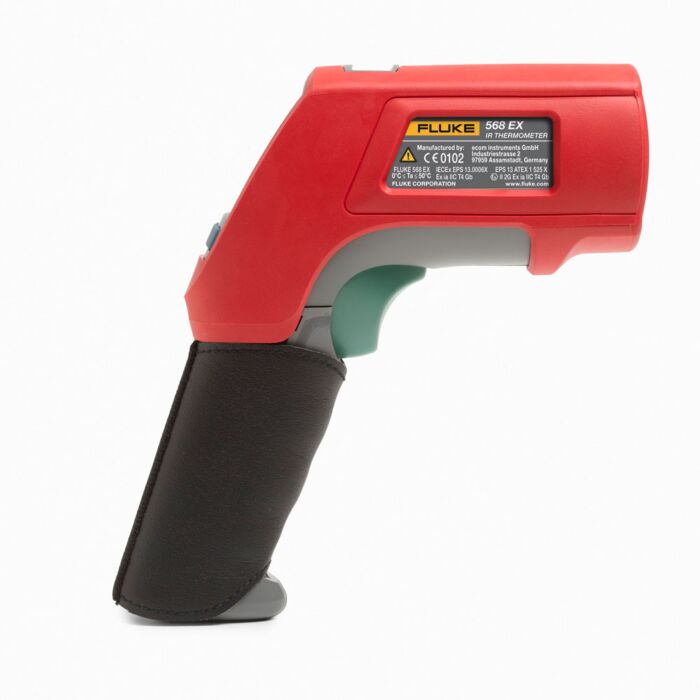

Fluke 568 EX/ETL Intrinsically Safe Infrared Thermometer

Order # 568 EX/ETL | Mfg # 4321655

Fluke 568 EX/ETL Intrinsically Safe Infrared Thermometer

$2,429.99

In stock

Ships Free Over $100

Check out Transcat's Fluke Thermometer Selection Guide!

Also Available:

Rental

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

The Fluke 568 Ex Intrinsically Safe Infrared Thermometer is the one product you can use in Class I Div 1 and Div 2 or Zone 1 and 2 hazardous environments anywhere in the world. Whether you work in petroleum, chemical, oil and gas, or pharmaceutical environments, the 568 Ex allows you to carry the most trusted name in test tools into most Ex rated areas all around the globe.

With a straight-forward user interface and soft-key menus, the Fluke 568 Ex makes even complex measurements easy. Quickly navigate and adjust emissivity, save data or turn on and off alarms, with just a few pushes of a button. All in a single intrinsically safe tool certified by major rating bodies from around the world.

Product Highlights

Intrinsically safe temperature measurements. Anywhere in the world
Measure -40 °C to 800 °C
(-40 °F to 1472 °F) with ± 1 %
Measurement Accuracy
Conductive Case for Carrying into
Hazardous Areas
50:1 Distance-to-Spot Ratio
Compatible with Standard K-Type
Mini-Connector Thermocouple
(KTC) Probe
Adjustable Emissivity, Built-in
Material Table
Capture up to 99 Points of Data
Two-Year Warranty

Technical Resources

Fluke 568 EX Intrinsically Safe Infrared Thermometer Datasheet
Brochure - Oil and Gas Downstream
Brochure - Oil and Gas Midstream
Fluke Application Note - Intrinsically Safe
Application - Fluke 568 Infrared Thermometer Keeps Industrial Processes on a Roll
Fluke 568 Ex Intrinsically Safe Infrared Thermometer - User's Manual
Fluke 568 Ex Intrinsically Safe Infrared Thermometer - User's Manual Supplement
Fluke 568 Ex Intrinsically Safe Infrared Thermometer - Safety Sheet
Fluke 568 Ex Intrinsically Safe Infrared Thermometer - EMC Certificate of Conformity
Fluke 568 Ex Intrinsically Safe Infrared Thermometer - Technical Data

Specifications

Specifications
Infrared temperature range	-40°C to 800°C (-40°F to 1472°F)
Infrared accuracy	< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F);
Infrared accuracy	> 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display resolution	0.1°C / 0.1°F
Infrared spectral response	8 µm to 14 µm
Infrared response time	< 500 ms
Thermocouple type-k input temperature range	-270°C to 1372°C (-454°F to 2501°F)
Thermocouple type-k input accuracy	< -40°C: ±(1°C + 0.2°/1°C)
	≥ -40°C: ±1% or 1°C, whichever is greater < -40°F: ±(2°F + 0.2°/1°F)
	≥ -40°F: ±1% or 2°F, whichever is greater
D:S (distance to measurement spot size)	50:01:00
Laser sighting	Single-point laser
Minimum spot size	19 mm (0.75 in)
Emissivity adjustment	By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage	99 points
Hi/Low alarms	Audible and two-color visual
Min/Max/Avg/Dif	Yes
Display	Dot matrix with function menus
Backlight	Two levels, normal and extra bright for darker environments
Trigger lock	Yes
Switchable celsius and fahrenheit	Yes
Power	2 AAA/LR03 type-approved batteries (For a list of type-approved batteries, refer to Product Safety Instructions.)
Battery life	4 hours with laser and backlight on;
Battery life	100 hours with laser and backlight off, at 100% duty cycle
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	-20°C to 60°C (-40°F to 140°F)
Bead thermocouple type-k range	-40°C to 260°C (-40°F to 500°F)
Bead thermocouple type-k accuracy	±1.1°C (2.0°F) from 0°C to 260°C (32 °F to 500°F),
Bead thermocouple type-k accuracy	typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
