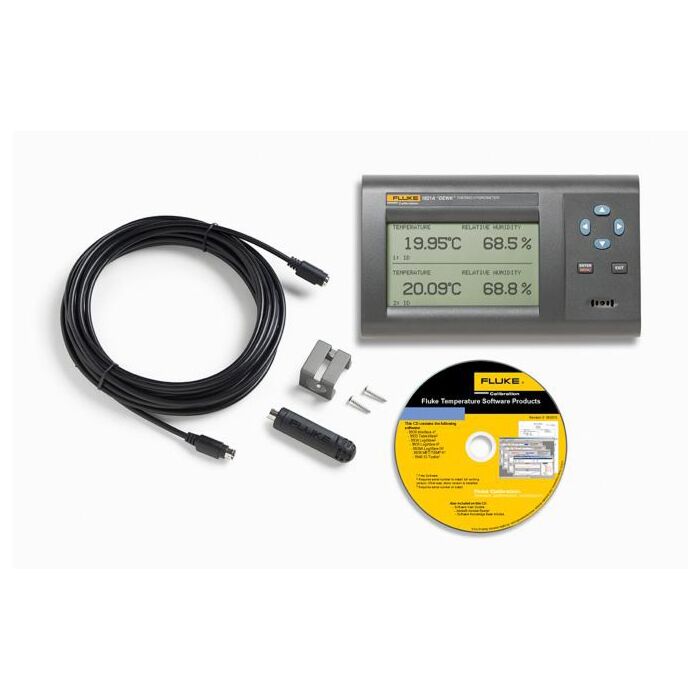

Fluke Calibration 1621A-H-156 DewK Thermo-Hygrometer Kit, High Accuracy
DewK Thermo-Hygrometer Kit, High Accuracy

Order #: HART1621-H

Mfg #: 2724012

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,724.00

Fluke Calibration 1621A-H-156 DewK Thermo-Hygrometer Kit, High Accuracy

DewK Thermo-Hygrometer Kit, High Accuracy

Order #: HART1621-H

Mfg #: 2724012

$5,724.00
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • The “DewK” Thermo-Hygrometer, High-Accuracy
  • Operating Range: 0 °C to 50 °C (32 °F to 122 °F); 0 %RH to 100 %RH
  • Calibrated Temperature Accuracy: ± 0.125 °C from 16 °C to 24 °C (± 0.225 °F from 60.8 °F to 75.2 °F)
  • Calibrated RH Accuracy: ±1.5 %RH from 20 %RH to 70 %RH
  • Delta Temperature Accuracy: ± 0.025 °C for ± 1 ° changes within 15 °C to 35 °C
  • (± 0.045 °F for ± 1 ° changes within 59 °F to 95 °F)
  • Temperature Resolution: User selectable up to 0.001 °C/°F on front-panel display (0.01° recorded)
  • Delta Humidity Accuracy: ± 1.0 %RH for ± 5 % changes within 20 %RH to 70 %RH
  • RH Resolution: User selectable up to 0.01 % on front-panel display (0.1 % recorded)
  • Inputs: Up to two sensors, measure temperature and relative humidity, detachable, cable-extendable, interchangeable, self-contained calibrations, may be assigned unique 16-character identifications
  • Display: 240 x 128 graphics monochrome LCD, displays password-protected temperature/humidity data graphically, numerically, and statistically (one or both channels); 16 pre-defined, user-changeable screen setups
  • Memory: 400,000 typical individual date/time-stamped readings
  • Alarms: Password-protected visual, audible, and external alarms for temperature, temperature rate, RH, RH rate, and fault conditions
  • Alarm Port Output: 2.5 mm two-conductor subminiature plug, 0 V normal, 11 to 12 V active, sources up to 20 mA
  • Connectivity: Ethernet, RS-232, RF (optional)
  • Ethernet: RJ45 jack, 10 Base-T or 100 Base-TX; static or dynamic (DHCP client) IP address assignment
  • Web Page: Embedded web page interface features: instrument identification, measurements, password-protected terminal page; can be disabled
  • Wireless Option: Requires wireless modem. 802.15.4 (underlies Zigbee), 2.4 GHz frequency, 1 mW transmit power, 30 m (100 ft) typical unobstructed range; can be disabled
  • Mounting: Wall mounted (hardware included) or set on a bench top
  • Power: 12 V dc from external 100 to 240 V dc power supply
  • Battery Backup: Standard 9 V battery enables continued measuring during power disruptions
  • Size (DewK) (HxWxD): 125 mm x 211 mm x 51 mm (4.9 x 8.3 x 2.0 in)
  • Size (Sensors) (LxDia): 79 mm x 19 mm (3.1 x 0.75 in)
  • Weight: 0.7 kg (1.5 lb)

Each Unit Includes

  • Two high-accuracy sensors
  • Wall mount bracket
  • RS-232 cable
  • 7.6 m [25 ft] sensor extension cable
  • Sensor wall mount bracket
  • Sensor case
  • 9936A LogWare III single-PC license
  • Certificate of NIST-traceable NVLAP accredited temperature and humidity calibration included; As Found and As Left data supplied at three temperature points and three humidity points each at 20 °C (68 °F)
