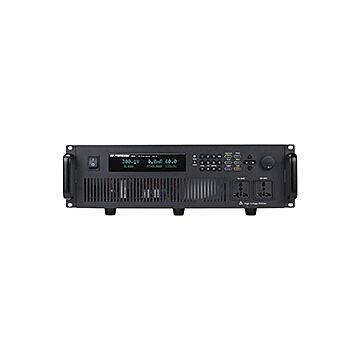

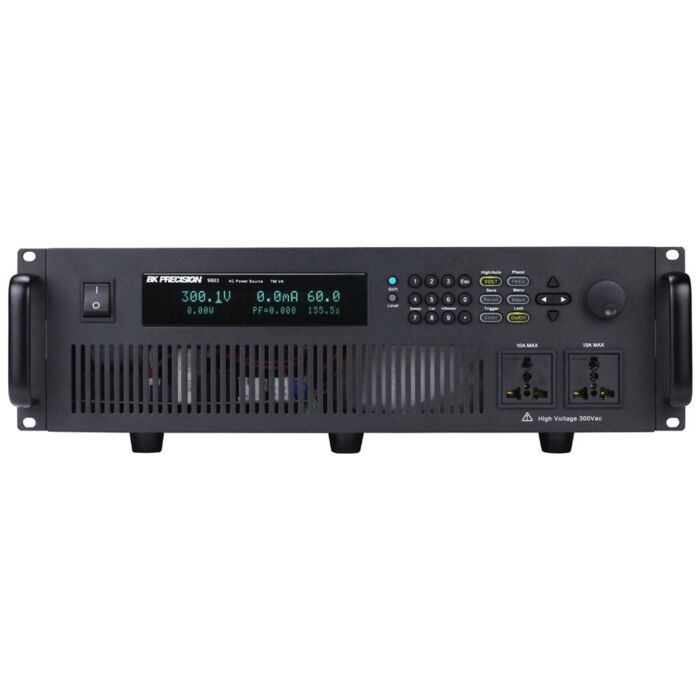

BK Precision 9803

Product Highlights

The 9800 series of AC power source is suitable for evaluating transformers, TRIACs, SCRs, and passive components as well as production, R&D, service, and pre-compliance testing.

Product Highlights

• 0 to 300 V, low distortion AC power source with models delivering a maximum of 1500 VA, 12 Arms / 48 Apeak
• Output frequency adjustable from 45 Hz – 500 Hz
• Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 - 300 V
• Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
• Adjustable phase angle control
• Built-in PLD and dimmer simulation
• Voltage and frequency sweep mode
• Downloadable LabVIEW driver and soft panel software for remote control
• Standard USB (USBTMC-compliant), RS232, LAN, and GPIB (9803 & 9805 only) interfaces
• Pre-compliance testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28
• Common applications
