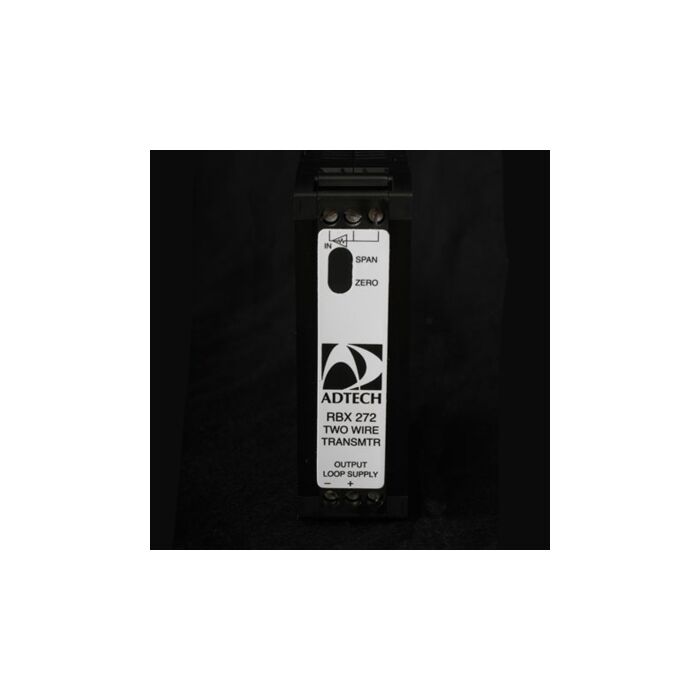

ADTECH RBX272-I14 RTD Isolated XMTR, >1MOhm Input Z

Input Signals

• Resistance Bulb Sensor: 2, 3, or 4 wire types 1 to 400 ohm
• Resistance Spans: Standard
• Zero Suppression: Up to 100% of the major range selected in 16 divisions of the coarse zero adjustment switch
• Span: From 0-100% full scale switch selectable. The coarse span switch adds 16 divisions to each major range
• Lead Compensation: 1% maximum

Performance

• Calibrated Accuracy: ±0.1%
• Independent Linearity: ±0.025% maximum, ±0.01% typical
• Repeatability: ±0.005% max., ±0.002% typ
• Span TC: ±0.008% of span max. / °C
• Load Effect: ±0.005% zero to full load
• Output Ripple: 10 mV P/P maximum
• Response Time: 110 milliseconds ( 10 to 90% step response)
• Bandwidth: (-3 db): 3.2 Hz
• Temperature Range: -25° to 185°F (-31° to 85°C) operating; -40° to 200°F (-40° to 93°C) storage
• Power Supply Effect: ±0.005% of span max.
• Isolation: Input/output/case: 1000VDC, 600 VAC

Power

• 8 to 42 VDC: Standard

Ordering Options

• H 15 D, H 25 - H 30 Mounting
• LPI 40 D Loop powered Indicator
