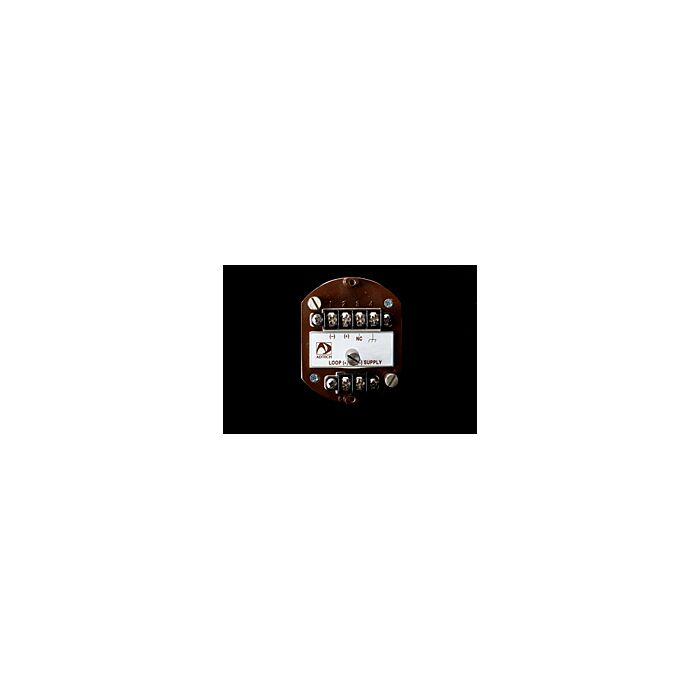

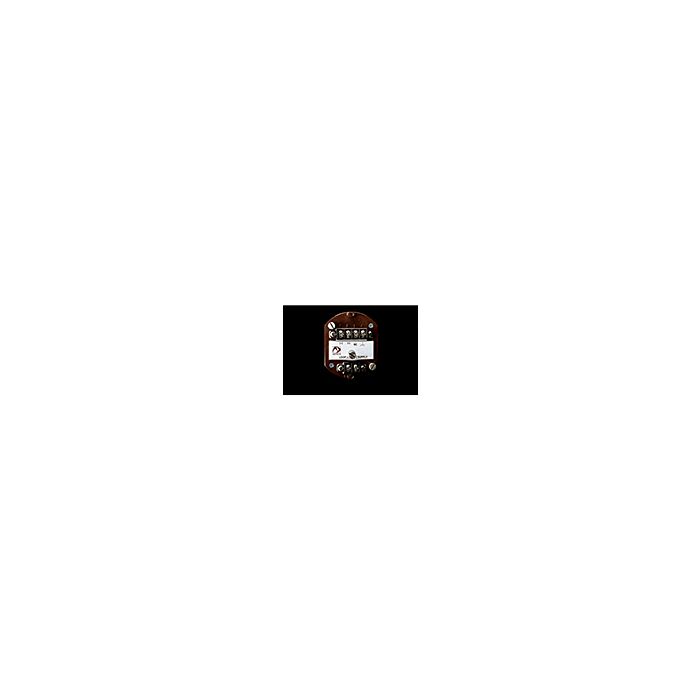

ADTech MVX126
mV Isolated XMTR
Order #: MVX126
Mfg #: MVX-126
$760.00
ADTech MVX126
mV Isolated XMTR
Order #: MVX126
Mfg #: MVX-126
$760.00
Availability: Ships in 3-4 weeks
Input Signals
- 0.5 mV to 100 mV span (Z in greater than 10 megohms)
- Zero Suppression: Up to 100% of the major range selected in 16 divisions of the coarse zero adjustment switch
- Span: From 0.5 mV to 100 mV full scale switch selectable. The coarse span switch adds 16 divisions to each major range.
- Upscale/Downscale Protection: Optional
Performance
- Calibrated Accuracy: 0.1%
- Independent Linearity: ±0.01% maximum, ±0.006% typical (14-bit digital linearity)
- Repeatability: ±0.005% max., ±0.002% typ.
- Span TC:±0.008% of span max/°C
- Load Effect:±0.005% zero to full load
- Output Ripple: 10 mV P/P maximum
- Response Time: 110 milliseconds (10 to 90% step response)
- Bandwidth: (-3 db): 3.2 Hz
- Temperature Range: -25° to 185°F (-31° to 85°C) operating; -40° to 200°F (-40° to 93°C) storage
- Power Supply Effect: ±0.005% over operating range
Product Highlights
- Power
- 8 to 42 VDC: Standard
Ordering Options:
- H 13 through H 23 Mounting
- LPI Loop Powered Indicator
- I 14 Voltage/Current Inputs
