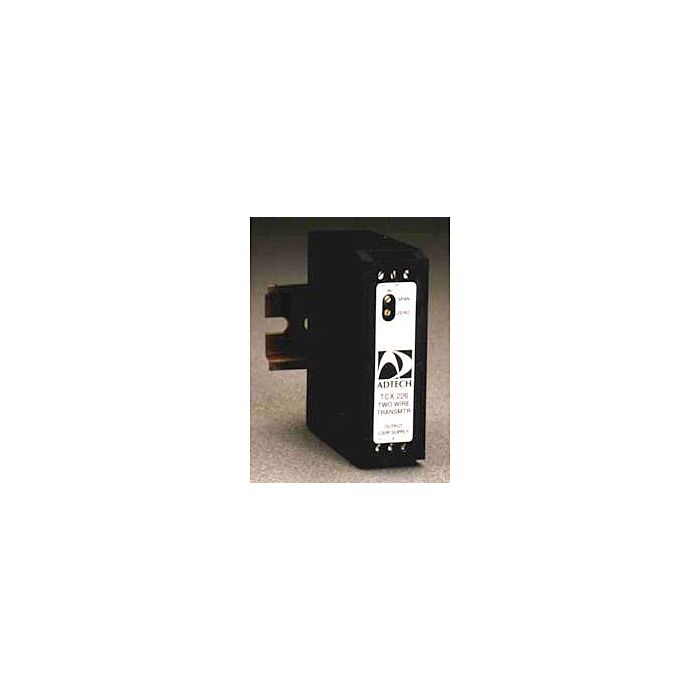

ADTECH TCX226-H27 T/C Isolated XMTR, NEMA 4 Enclosure (up to 2 units)
T/C Isolated XMTR, NEMA 4 Enclosure (up to 2 units)
Order #: TCX226-H27
Mfg #: TCX226-H27
$566.50
ADTECH TCX226-H27 T/C Isolated XMTR, NEMA 4 Enclosure (up to 2 units)
T/C Isolated XMTR, NEMA 4 Enclosure (up to 2 units)
Order #: TCX226-H27
Mfg #: TCX226-H27
$566.50
Availability: Ships in 3-4 weeks
Input Signals
- Thermocouple: All standard ISA CALIBRATION (B, E, J, K, R, S, T), -20 MV to 100 mV spans (Z in greater than 1 megohm)
- Zero Suppression: Up to 100% of the major range selected in 16 divisions of the coarse zero adjustment switch.
- Span: From 0.5 mV to 100 mV full scale switch selectable.
- The coarse span switch adds 16 divisions to each major range.
- Upscale/Downscale Burnout Protection: Standard, field selectable
- Burnout Current: 0.1 micro amperes-nominal
Performance
- Calibrated Accuracy: ±0.1% ( of mv input)
- Independent Linearity: ±0.01% maximum, ±0.006% typical (14-bit digital linearity) (of millivolt input)
- Repeatability: ±0.005% max., ±0.002% typ.
- Span TC: ±0.008% of span max. / °C
- Load Effect: ±0.005% zero to full load
- Output Ripple: 10 mV P/P maximum
- Response Time: 110 milliseconds ( 10 to 90% step response)
- Bandwidth: (-3 db): 3.2 Hz
- Temperature Range: -25° to 185°F (-31° to 85°C) operating; -40° to 200°F (-40° to 93°C) storage
- Power Supply Effect: ±0.005% of span, max.
- Isolation: Input/output/case: 1000 VDC, 600 VAC
- Cold Junction Compensation Error: 1.5 °C max (0 to 50°C)
- Burnout Current: 0.1 micro amps- nominal
Power:
- 8 to 42 VDC: Standard
Ordering Options:
- H 15 D, H 25 - H 30 Mounting
- LPI 40 D Loop powered indicator
