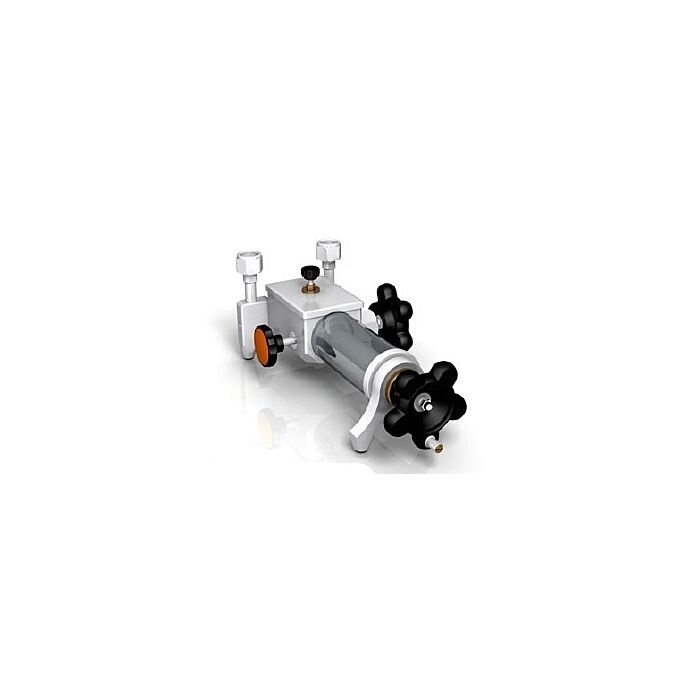

Additel ADT925W-N Hydraulic Pressure Test Pump, 1/4"NPTF (for use w/H2O)

Order # ADT925W-N | Mfg # ADT925W-N
$2,466.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The 925 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 6,000psi (400bar). With the patented screw press technology, the high pressure can be easily generated, as well as increased and decreased smoothly. With no check valve (non-returning valve), the 925 avoids the troublesome leakage issues that is usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 925 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory.

  • Pressure port type:N - 1/4NPT female
  • Only 3.7 lb
  • Patented screw press technology, without non-returning valve inside that is usually used on troublesome hand pumps
  • The high pressure can be generated easily, increased and decreased smoothly
  • Patented screw press technology, instead of leaking, troublesome, non-returning hand pumps
  • Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches
  • Media: deionized water
  • Reservoir capacity: 200 ml (12.2 in3)
  • Pressure Range: 85% vacuum to 6,000 psi (400 bar) positive pressure
  • Material: Ram/adapters: SS Body: SS,aluminum Seals: Buna-N, PTFE, Copper Alloy
  • Connection: Hand-tight connectors for both test gauge and reference gauge. 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
  • Dimensions: Height: 4.72'' (120 mm)Base: 9.84'' (250 mm) x 5.51'' (140 mm)
  • Weight: 3.7 lb (1.7 kg)
  • Warranty: 1 year Piston volume Low pressure piston: 1.1 in3 (18 ml)High pressure piston: 0.05 in3 (0.9 ml)

Each Unit Includes

  • O-ring: 20 pcs

Technical Resources

Additel ADT925W-N Hydraulic Pressure Test Pump, 1/4"NPTF (for use w/H2O) Accessories

checkbox-empty
Select
Additel ADT102 Adapter & Fitting, 1/4" NPTM to Various M/F Connections (26pc)
checkbox-empty
Select
Additel ADT102-B2 1/2 BSP Male to Various Male and Female Connectors
checkbox-empty
Select
Additel ADT103-M20 Adapter and Fitting, M20 X 1.5 Male to various, quick connect
checkbox-empty
Select
Additel ADT103-NPT Adapter and Fitting, 1/4" NPT Male to various, quick connect
checkbox-empty
Select
Additel ADT100-HTK-8K-NPTM4-BSPF4Q Hose Test Kit, 5' Flexible Hose, 8000PSI, 1/4"NPTM to 1/4"BSPF
checkbox-empty
Select
Additel ADT100-HTK-8K-NPTM4-NPTF4Q Hose Test Kit, 5' Flexible Hose, 8K PSI, 1/4NPTM-1/4NPTF, Quick Connect
checkbox-empty
Select
Additel ADT100 Hose Test Kit with 5 'Flexible Hose, 15K PSI, 1/4"NPTM-1/4"BSPF quick connect
checkbox-empty
Select

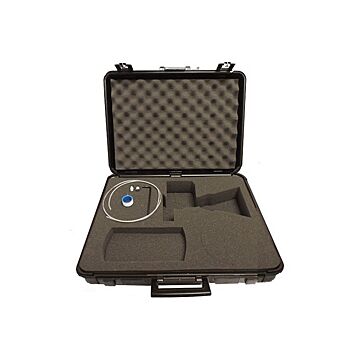

Additel 9901-925
