Additel ADT916 Pneumatic Pressure Test Pump, 1/4BSPF, -14 psi to 600 psi

Order # ADT916-B | Mfg # ADT916A-B
$2,660.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

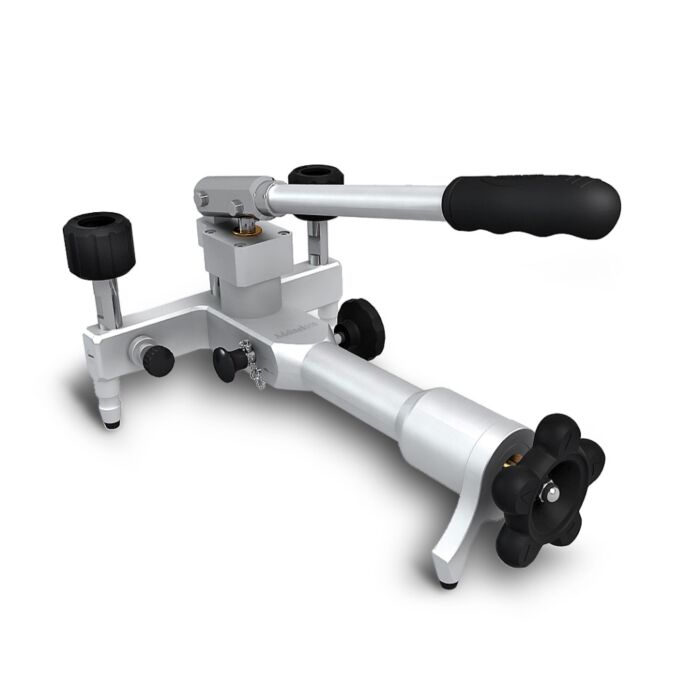

The 916A Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 600psi (40bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 916A is an ideal comparison test pump for pressure instruments calibration.

    Pressure port type: B - 1/4BSP female

  • Only 6.0 lb
  • 10 Pa (0.1 mbar)
  • High-quality screw press for fine pressure adjustment
  • A specially designed shut-off valve makes the pressure as stable as possible during calibration
  • Built-in gas-liquid isolator protects the pump from moisture and dirt.
  • Easy-to-use
  • Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches
  • Media: Air
  • Generated Pressure Range: 95% vacuum to 600 psi (40 bar) positive pressure
  • Pressure Resolution: 10 Pa (0.1 mbar)
  • Material: Ram/adapters: SS Body: SS, aluminum Seals: Buna-N, PTFE, Copper Alloy
  • Piston volume: 1.6 in3 ( 27 ml)
  • Connection: Hand-tight connectors for both test gauge and reference gauge. 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
  • Dimensions Height: 5.5'' (140 mm) Base: 12.4'' (315 mm) x 7.8'' (198 mm)Weight: 5.9 lb (2.7 kg)
  • Warranty: 1 year

Each Unit Includes

  • O-ring: 20 pcs

Technical Resources
