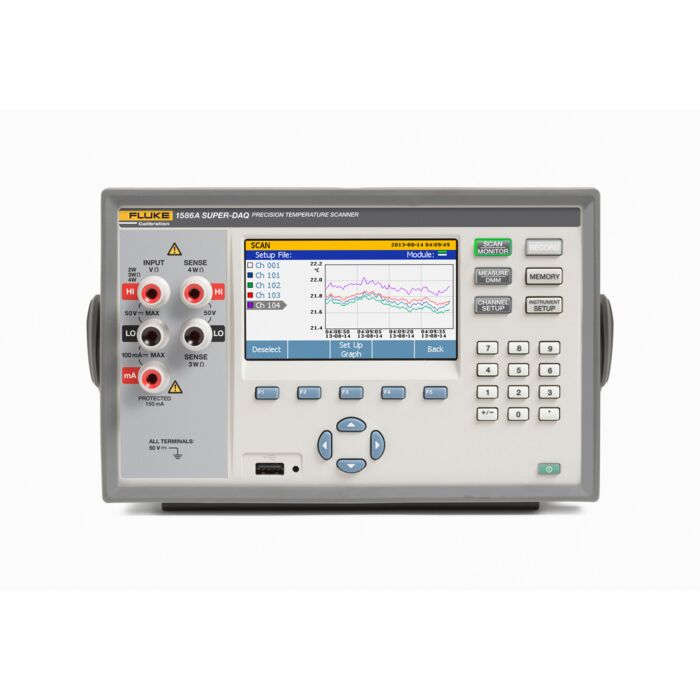

Fluke Calibration 1586A/1DS 120 Super-DAQ 1 DAQ-STAQ Module (120V)

Product Highlights

• Measure thermocouples, PRTs, thermistors, dc voltage, dc current, and resistance
• Best-in-class temperature measurement accuracy

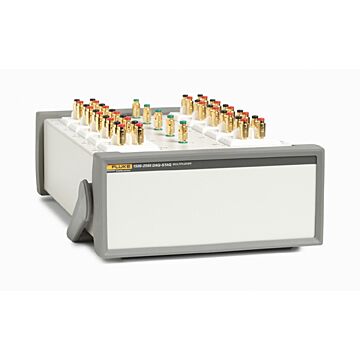

  • PRTs ± 0.005 °C (using external DAQ-STAQ Multiplexer)
  • Thermocouples: ± 0.5 °C (using High-Capacity Module and internal CJC)
  • Thermistors: ± 0.002 °C
• Input channels: Up to 40 isolated universal inputs
• Flexible configuration: Internal High-Capacity Module and/or DAQ-STAQ Multiplexer
• Selectable scan speed: Up to 10 channels per second
• Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
• Real-time color trending: Chart up to four channels simultaneously
• 6 1/2 digit display resolution for dc voltage, dc current, and resistance
• Current reversal minimizes thermoelectric effects, improving PRT/RTD measurement accuracy
• Automated sensor calibration: Control Fluke Calibration temperature sources such as dry-wells or micro-baths for automated calibration routines
• Data storage: Records up to 20 MB of data and setup files to internal non-volatile memory or to an external USB drive. Transfer data to a PC using the USB drive or LAN connection and view data in Microsoft® Excel
• Data security: Administrator and user profiles for protecting settings and ensuring test traceability
• Mx + B scaling and channel offset zero function
• Alarms: Two independent, user-defined alarms for each channel indicate when an upper or lower range has been exceeded
• Supported by TQSoft and TQAero thermal validation software for FDA 21 CFR Part 11 and AMS 2750 compliant data collection
