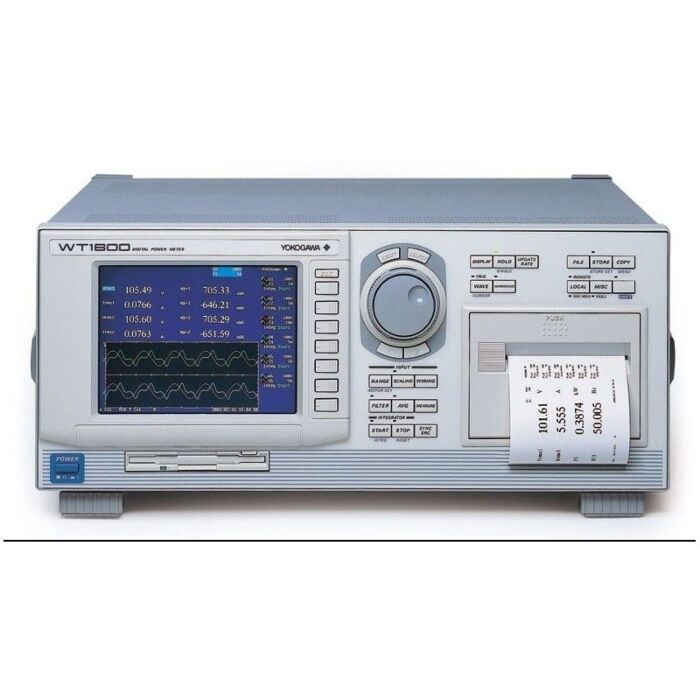

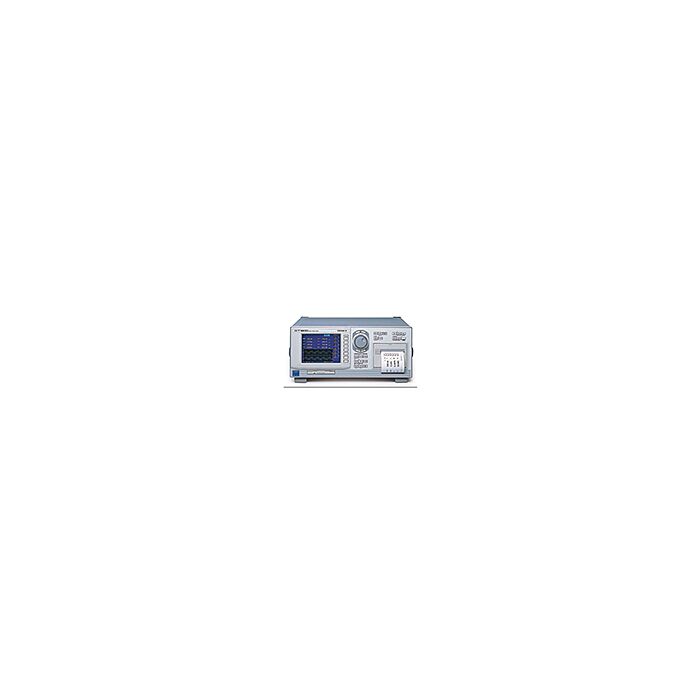

Used Yokogawa WT1600 Digital Power Meter, 100-120, 200-240 VAC, 0.5 Hz to 1 MHz

Order # WT1600-USED | Mfg # WT1600
$7,999.00
Also Available:
Rental

Request a Used Instrument Quote









Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The WT1600 is power meter designed for measurement of extremely small currents in energy-saving equipment, as well as measurement of large currents for evaluating large-sized loads. The WT1600 works with voltages ranging from 1.5 V up to 1000 V, supporting a wide range of applications. Because it can accept signal inputs for up to six phases, a signal WT1600 unit can measure I/O signals on inverters.

A single WT1600 unit can make up to six different power measurements (six input each for voltage and current). With the measure start-stop function (synchronized measurement), two WT1600 units (12 inputs) can be synchronized.

  • Up to Six-Phase Input on One Unit. Synchronized Measurements Between Two Units
  • Wide Current Input Ranges
  • Data Storing as Fast as 50 ms (20 Times per Second)
  • High Precision and Wide Bandwidth
  • Increased Assured-Accuracy Range for High-Precision Measurements
  • A Variety of Display Formats
  • Display Harmonic Data as Bar Graphs, Vectors, and Lists
  • Built-in Printer (Optional)
  • A Variety of Interfaces (Optional)
  • Integration Function Capable of Handling Rapid Changes in Input Signal

Technical Resources

Yokogawa WT1600 Datasheet
