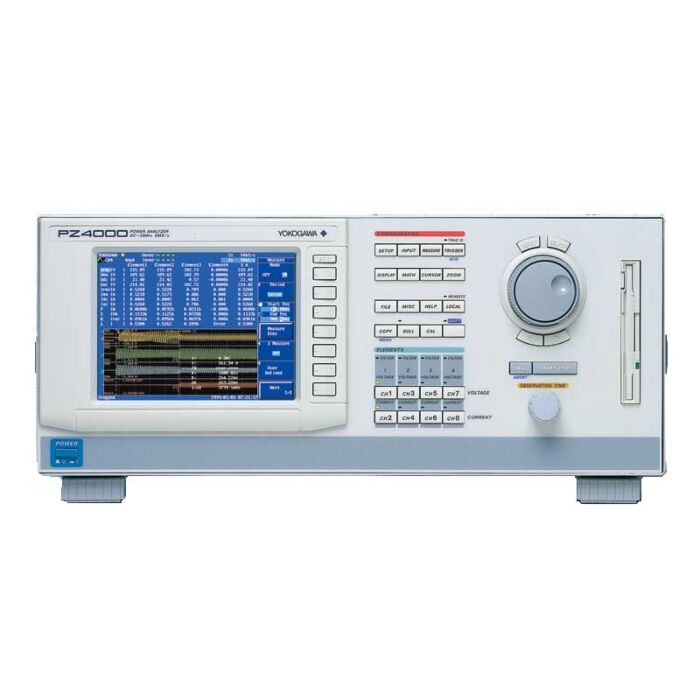

Used Yokogawa PZ4000 Digital Power Analyzer, DC to 2MHz

Product Highlights

• Wide measurement bandwidth (DC, up to 2 MHz).
• Accurate capturing of input waveforms using high-speed (maximum 5 MS/s) sampling.
• Voltage and current waveform display and analysis functions to enable power calculations on fluctuating inputs.
• Harmonic analysis (up to 500th order) and Fast Fourier Transform (FFT) functions to enable high-frequency power  spectrum analysis.
• Multiple channel, synchronized measurements using multiple units and Master-Slave trigger function simplifies complex investigations.
• Environmentally friendly design based on YOKOGAWA's Guidelines for Designing Products for the Environment and Criteria for Environmental Assessment in Product Design.
• Sensor input module option enables evaluation of motor efficiency and total efficiency including the motor drive.
