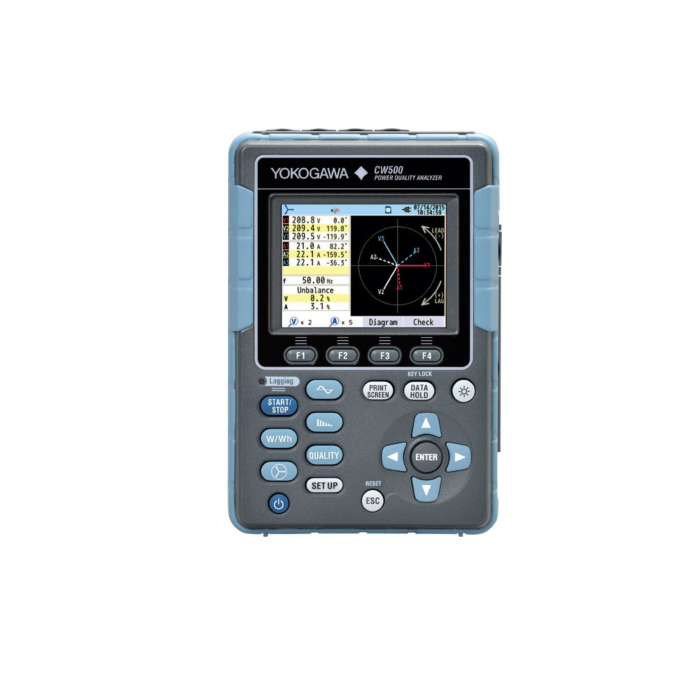

Yokogawa CW500 for Rent, Power Quality Analyzer

The Yokogawa CW500 is a portable power meter that utilizes current clamp-on probes, navigation screens and quick start guides to enable user friendly power consumption and power quality measurements in the field that conform to IEC61000-4-30 Class S.

The CW500 has a simple and direct navigation screen for setup of connections and detail settings. Stored measured data is easily accessible through the PC software by use of an SD card or USB connection to the PC. The CW500 is available with or without Bluetooth.

The Yokogawa CW500 power quality analyzer is loaded with advanced diagnostic features including: power measuring and logging (1-phase 2-wire to 3-phase 4-wire), power quality measuring (voltage swell, voltage dip, voltage interruption, transient overvoltage, inrush current, harmonics and flickers), user support (start guide function and automatic detection of current clamp probe), and data analysis and report generation (automatically create graphs and reports of measured data by a single click).

Product Highlights

• Power Measurement and Logging
• Power Quality Measurement
• User Support
• Analysis of Data and Report Generation

Power measuring and logging

• Measures power lines of 1 phase 2 wire to 3 phase 4 wire
• Simultaneously measures voltage input 3CH, current input 4CH and DCV input 2CH
• Instantaneous, average, maximum, minimum values of voltage, current, power, power factor, phase angle, phase advanced capacitance calculation and DCV input
• Integration value of active, reactive, apparent energy is each displayed by consumption and generation
• Demand power value can be monitored by graph screens of power consumption constantly comparing to aimed demand power value

Power quality measuring

• Instant malfunction such as voltage swell, voltage dip, voltage interruption, transient overvoltage, and inrush current are each checked as events and on occurrence waveforms, types of malfunction and time are recorded
• Continuous malfunction such as harmonics, flickers, voltage unbalance rate, current unbalance rate are recorded and waveforms can be displayed

User support

• Start guide function and automatic detection of type of current clamp-on probe supports secure wiring and settings before measuring
• Automatically recognize the type of current clamp-on probe
• Analysis of data and report generation with included PC software (CW500 Viewer)
• Automatically create graphs and reports of measured data by a single click
• Uniform management of main unit settings
• Real-time measuring by USB communication
• SD Memory card, USB communication, Bluetooth communication
