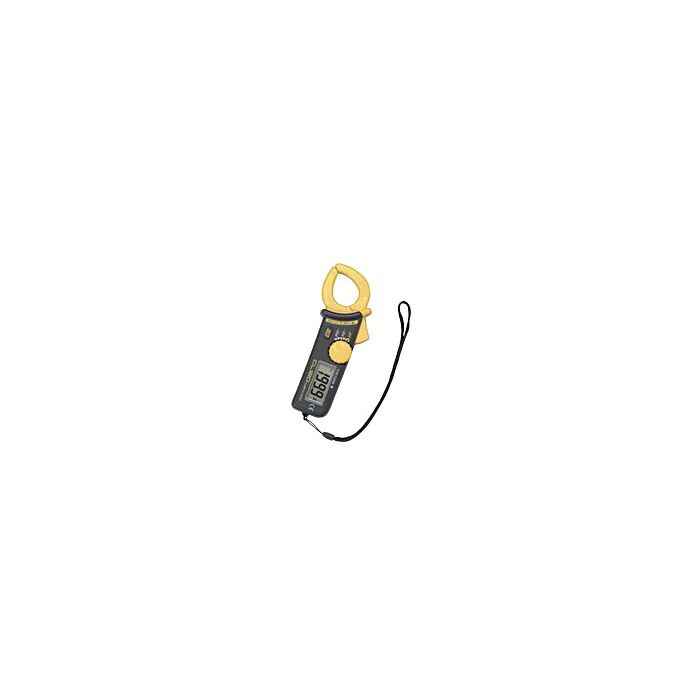

Yokogawa CL120 AC Average Sensing Current Clamp Meter, 20/200A

Yokogawa Model # CL120
Light weight & compact design
Approved for comformity to safety standards
EN61010-1,EN61010-2-032 (CAT. III 300 V)
AC Current: 20A Accuracy: 2.0+7 (50 to 1kHz); 200A Accuracy: 3.0+10 (40 to 1kHz)
Method of detection Mean value
Display LCD(Digital display:1999 counts)
Response Time Approx. 2 seconds
Range Switching Manual-range
Data Hold On all range
Ambient temperature and humidity 0 to 40 deg.C, 85% RH or less (no condensation)
Temperature Coefficient - Influence of external magnetic field 0.8A or less at 400A/m
Influence of conductor position ±2% or less
Circuit Voltage 300Vrms or less
Withstanding Voltage 3.7kV AC for one minute
Power Supply LR-44 ×2(3V) or SR-44 ×2
Battery Life Approx. 100 hours (continuous)
Consumed Current Approx. 1mA
Auto power-off Approx. 10 minutes
Diameter of measurable conductor 24mm at maximum
Dimensions Approx. 59(W) × 148(H) × 26(D)mm
Weight Approx. 100g

Yokogawa CL120
