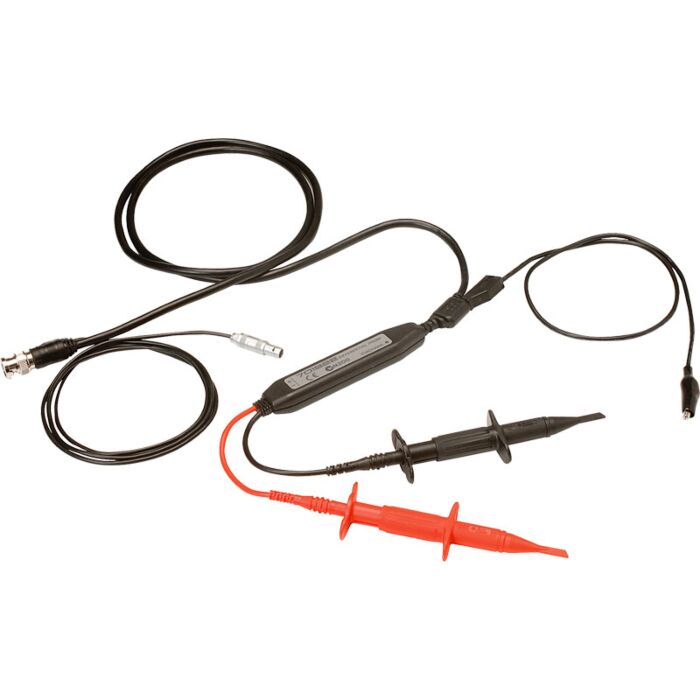

Yokogawa 701922 for Rent, Differential Probe, 20Vp DIFF, 60Vp CM, 200MHz

Order # 701922-RENT2 | Mfg # 701922-RENT2

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Bandwidth: DC to 200MHz
  • Attenuation ratio: 10:1
  • Connector Type: BNC (works with virtually all scopes)
  • Input Resistance: 500kΩ (each side to ground)
  • Input Capacitance: 7pF (each side to ground)
  • Rise Time: not specified
  • Differential Input Voltage Range: +/-20V
  • Common Mode Input Voltage Range: +/-60V
  • Max Ground-Referenced Input Voltage: +/- 60V (DC + ACpeak)
  • Output Voltage: +/- 2V (DC + ACpeak)
  • Output Impedance: 50Ω
  • Gain Accuracy: +/- 1%
  • CMRR: -80dB 100Hz, -50dB 10MHz
  • Cable Length: Approx 1.2m total cable length
  • Standard accessories included: pinchers B9852MF black & B9852MG red, 50cm ground extension.

Technical Resources

Yokogawa 701922 User Manual

Specifications

Bandwidth : DC to 200 MHz
Attenuation : 10:1
Max. Input Voltage:(to ground) : ±60 V (DC + ACpeak) CAT I
Max. Differential Voltage : ±20 V (DC + ACpeak)
Probe Power : probe power supply
Work with 50 Ω input system oscilloscope
