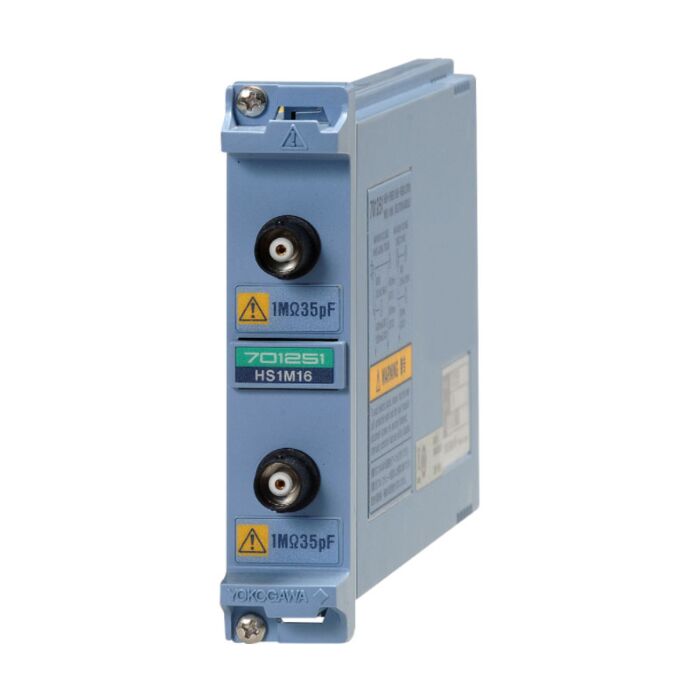

Used Yokogawa 701251 Isolation Module

Order # 701251-USED | Mfg # 701251-USED
$899.00

Request a Used Instrument Quote









Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • High-Speed 1 Ms/s 16-Bit Isolation Module (2 ch)
  • High sensitivity range (10 mV), low noise (±100 µVtyp), and high noise immunity
  • Applicable to DL850 series, DL750 series and SL1000
  • Input channels 2
  • Input couplings AC, DC, GND
  • Maximum sampling rate 1 MS/s
  • A/D conversion resolution 16 bits (2400 LSB/div)
  • Input type Isolated unbalanced
  • Frequency range (3 dB)1 DC, up to 300 kHz (20 V/div to 5 mV/div)
  • Input range (10:1) 10 mV/div to 200 V/div (in steps of 1, 2, or 5) (1:1) 1 mV/div to 20 V/div (in steps of 1, 2, or 5)
  • Maximum input voltage (1 kHz or less) In combination with 700929 (10:1) 600 V (DC + AC peak)
  • Direct input (1:1) 6, 10 140 V (DC + AC peak)
  • Maximum allowable in-phase voltage In combination with 700929 (10:1) 400 Vrms (CAT I), 300 Vrms (CAT II)
  • In combination with 701901+701954 (1:1) 400 Vrms (CAT I), 300 Vrms (CAT II)
  • Main unit only (1:1) 42 V (DC + AC peak) (CAT I and CAT II, 30 Vrms)
  • DC accuracy 5 mV/div to 20 V/div ±(0.25% of 10 div) 2 mV/div ±(0.3% of 10 div) 1 mV/div ±(0.5% of 10 div)
  • Input impedance 1 MW ± 1%, approx. 35 pF
  • Connector type Isolated type BNC connector
  • Input filter OFF, 400 Hz, 4 kHz, 40 kHz
  • Temperature coefficient
  • Zero point 5 mV/div to 20 V/div: ±(0.02% of 10 div)/°C (typical value) 2 mV/div: ±(0.05% of 10 div)/°C (typical value) 1 mV/div: ±(0.10% of 10 div)/°C (typical value)
  • Gain 1 mV/div to 20 V/div: ±(0.02% of 10 div)/°C (typical value)
